Guhring Solid carbide drill 38 OAL x 12mm flute TiAlN coated

Description

High performance micro-precision drills Solid carbide / Ø 1.700 mm h7 / Company std. / Surface: TiAlN / Cutting direction: right-hand / facet point grinding 140°
Execution: Web thinning ≥ Ø 0.800 mm • facet point grind
Application: structural and case hardened steels • free-cutting steels, heat-treatable steels • alloyed steels up to 1200 N/mm² • cast materials

Additional information

Weight	0.0080 kg
Dimensions
barcode

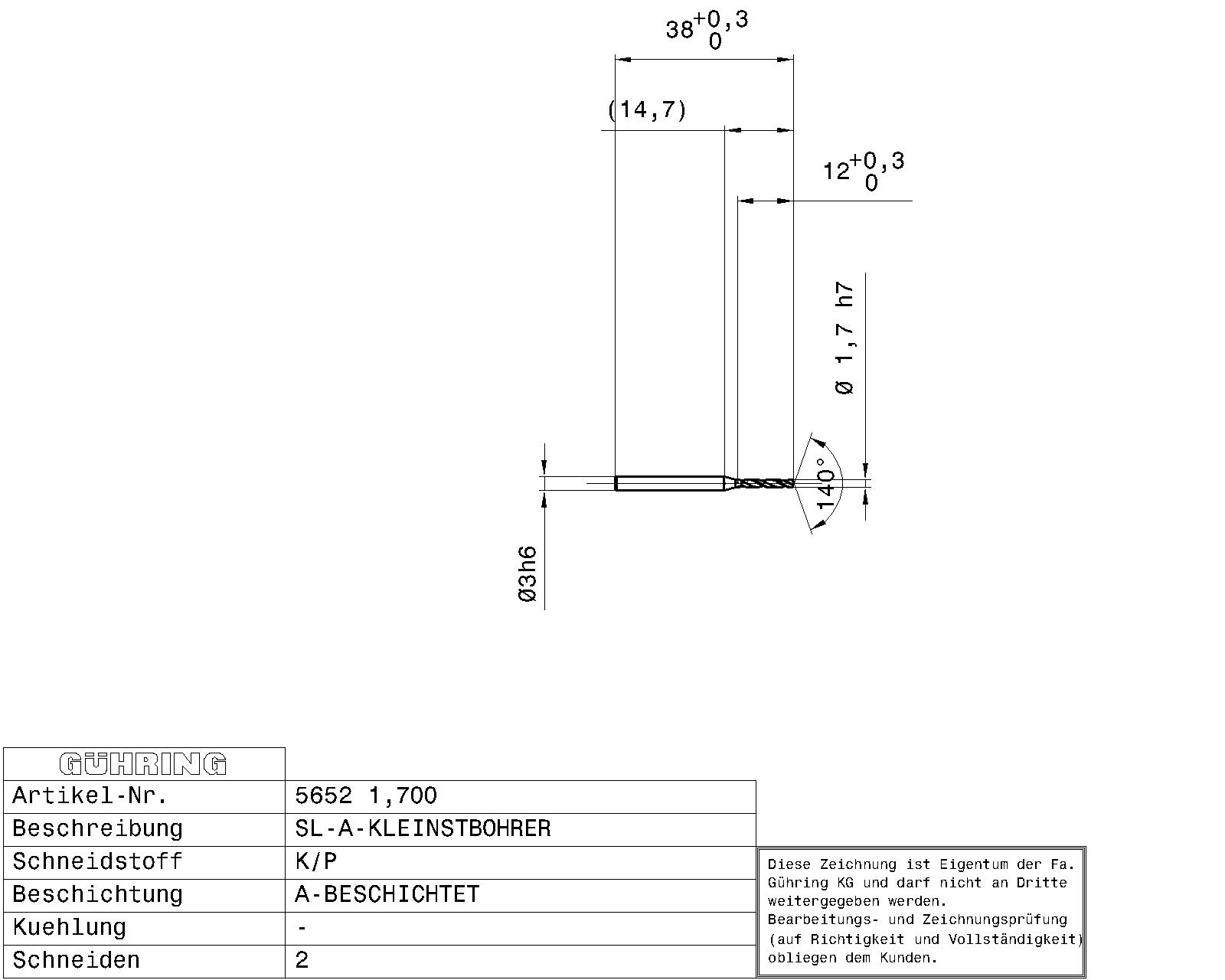

Additional Information	Point grinding: facet point grinding Connection code machine side: straight shank Ø-Thinning: 0.800 Nominal Ø tolerance field: h7 Internal cooling: without Norm: Company std. Surface: TiAlN Discount group: 155 Type: 5652 Cutting direction: right-hand Type: N Point angle: 140 Material: Solid carbide Code no.: 1.700 Weight: 0.008 No of cutting edges: 2 Total length: 38.000 Groove length: 12.000 Usable length: 9.900 Shank Ø: 3.000 Nominal Ø mm: 1.700 Reach length: 14.700 Statistical goods number: 82075050
