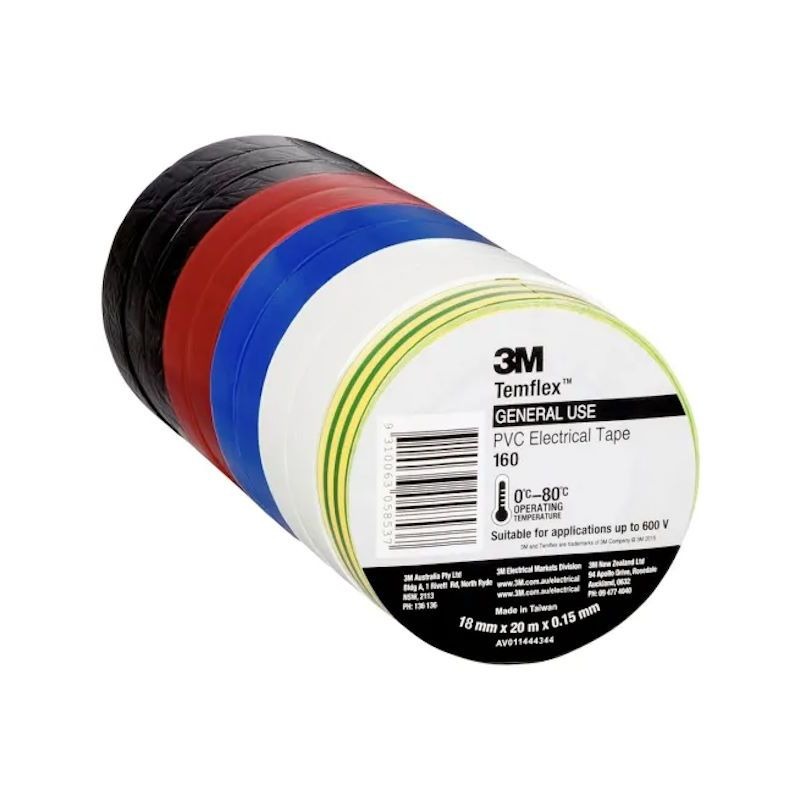

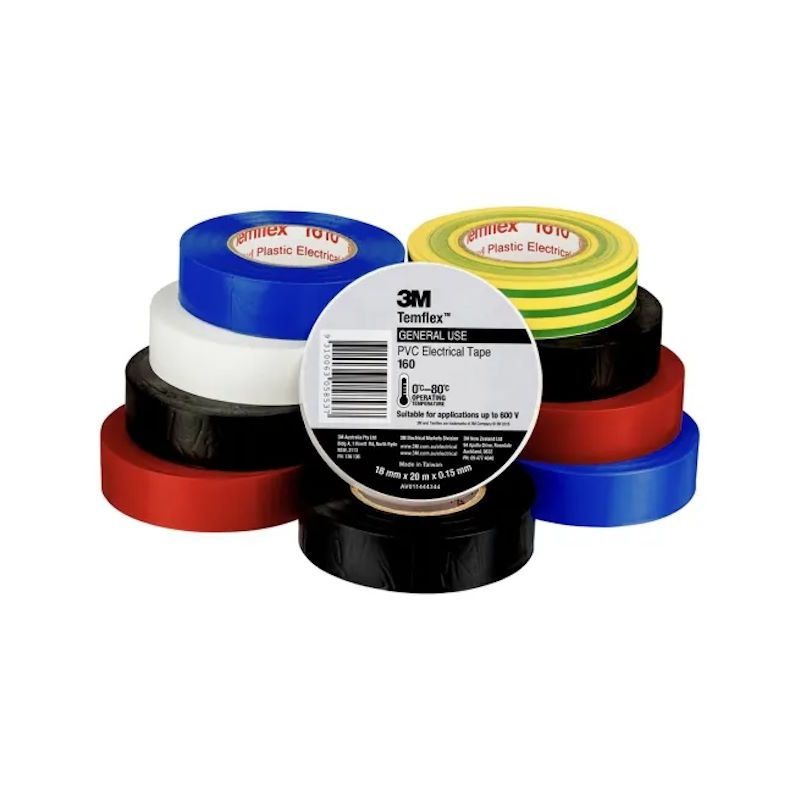

3M – TAPE, VINYL ELECTRICAL 160 TEMFLEX, RBOW, 18mm x 20m [10]

Description

3M™ Temflex™ Vinyl Electrical Tape 160 is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.

Features & Benefits
General purpose vinyl tape
Great for less demanding indoor applications
Conformable
Suitable for ambient indoor uses
Basic electrical and hardware application: phase identification; colour coding; harnessing

Specifications
Temperature Resistance (UL510): 0°C – 80°C
Temperature Resistance (CSA C22.2 No.197): -10°C – 80°C
Thickness: 0.15mm
Flame retardant to UL510
Elongation (%): 220
Adhesion to Steel (N/10mm): 2.4
Adhesion to Backing (N/10mm): 2.4
Dielectric Strength (kV/mil): 1.2
Certification UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80°C and min temperature of 0°C on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code
Certification: CSA C22.2 No.197: Suitable as primary insulation on applications up to 1000V at max temperature of 80°C and min temperature of -10°C on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1

Includes:
3 x Black
2 x Red
2 x Blue
2 x White
1 x Yellow/Green Stripe
