$4.54$4.13 Ex. GST

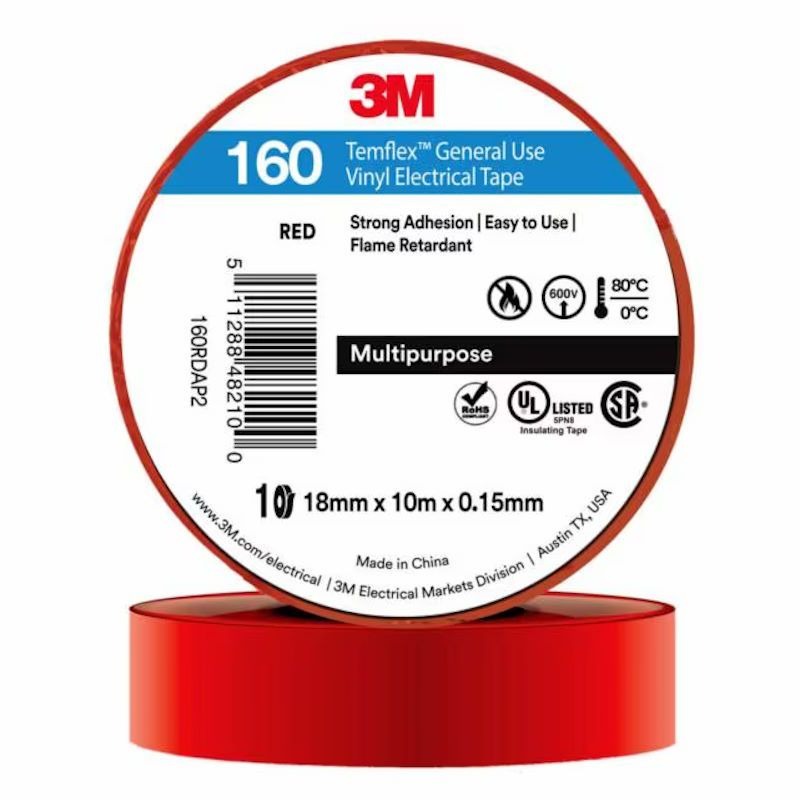

3M™ Temflex™ Vinyl Electrical Tape 160 is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.
Features & Benefits
General purpose vinyl tape
Great for less demanding indoor applications
Conformable
Suitable for ambient indoor uses
Basic electrical and hardware application: phase identification; colour coding; harnessing
Specifications
Temperature Resistance (UL510): 0°C – 80°C
Temperature Resistance (CSA C22.2 No.197): -10°C – 80°C
Thickness: 0.15mm
Flame retardant to UL510
Certifications
UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80°C and min temperature of 0°C on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code
CSA C22.2 No.197: Suitable as primary insulation on applications up to 1000V at max temperature of 80°C and min temperature of -10°C on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1
| Dimensions | Length 2000cm x Width 1.8cm x Depth 0.01cm |
|---|---|
| barcode | |
| Additional Information | Part Number: 3M160-RD |
