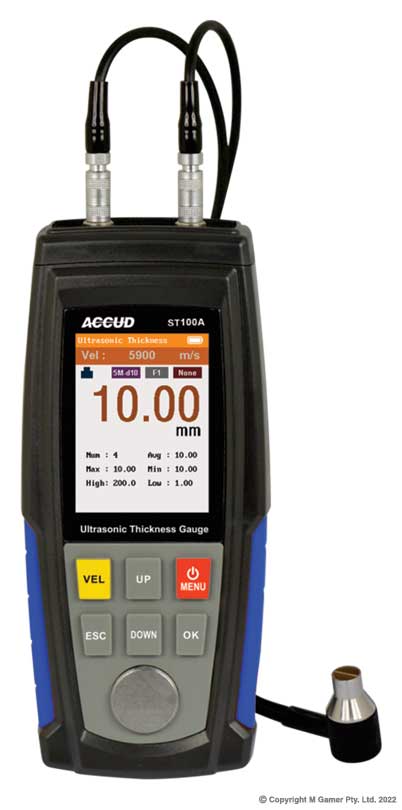

Accud – Ultrasonic Thickness Gauge

Product Code: AC-ST100A

$699.00$635.45 Ex. GST

Product Code: AC-ST100A SKU AC-ST100A Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

• Measures the thickness of tank, pipe and large workpieces
• Interactive LCD with backlight
• Included: Main Unit x 1, Transducer x 1, Battery x 1 set, Couplant x 1 bottle, Brush x 1
Measuring Range: 1.2-225 mm (steel)
Graduation: 0.01 mm (=100 mm)
Repeatability: 0.05 mm (=100 mm)
Accuracy: ±0.5%L+0.04 mm (L is the thickness in mm)
Velocity: 1000-9999 m/s
Min diameter of measuring tube: Ø20×3 mm
Dimension: 64 x 116 x 27 mm
Weight: 220 g

Additional information

Weight 2.0000 kg
Dimensions Length 22cm x Width 12cm x Depth 9cm
barcode
Additional Information

Brand

Accud
