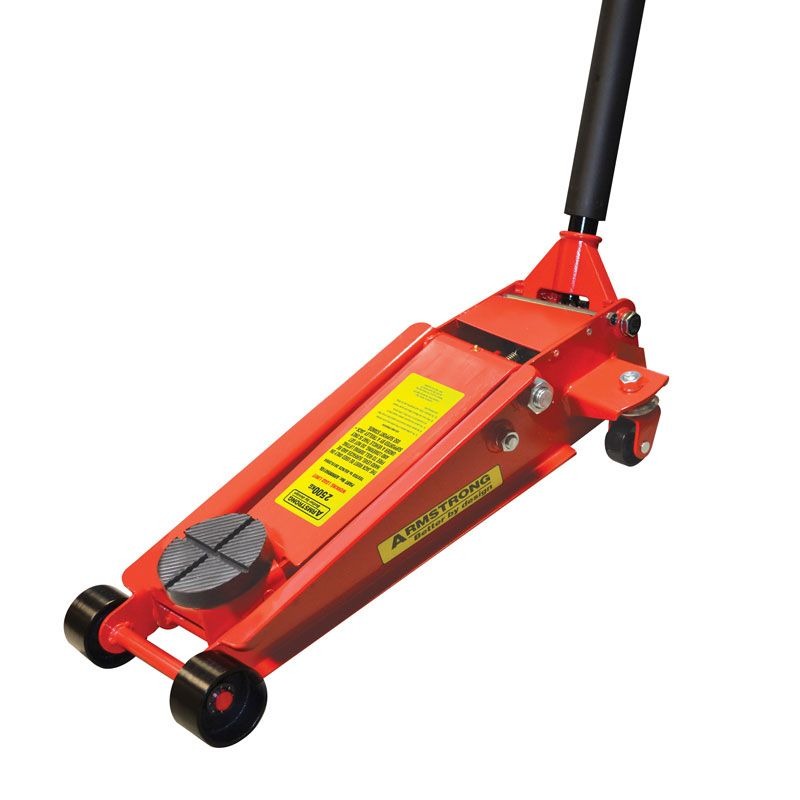

ARMSTRONG – TROLLEY JACK 2500kg FITTED WITH QUICK LIFT

Product Code: ARMM901QL

$998.25$907.50 Ex. GST

Product Code: ARMM901QL SKU ARMM901QL Category

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Features & Benefits
“Quick lift” is a double pump piston action designed to quickly lift the unloaded head cap to the desired positioning point before the vehicle is lifted
Tested to Australian Standards
Safety overload valve
Hydraulic stroke limitation
Suitable for professional user where performance and safety is paramount
Fewer pumps needed to achieve required height
2500kg capacity
Low profile design – minimum head cap height 102mm
Rear castors for ease of maneuverability
Heavy duty castors and wheels for long service life
Rubber covered handle to protect bodywork
Fast “quick lift” two piston pump action no load lift – 5 to 6 pumps for maximum height
Professional quality and tested to Australian standards
Universal joint release control for greater control over lowering speed
Heavy duty seals and hardware

Additional information

Weight 44.0000 kg
Dimensions Length 71.2cm x Width cm x Depth cm
barcode
Additional Information

Part Number: ARMM901QL
Brand: Armstrong
Capacity (kg): 2500
Minimum Height (mm): 102
Maximum Height (mm): 521
Chassis Height (mm): 165
Width Front (mm): 295
Width Rear (mm): 369
Overall Length (mm): 712
Weight (kg): 44
Country of Manufacture: China
Pack Quantity: 1
Unit of Measure: Each
Vendor Part Number: ARMM901QL

Brand

ARMSTRONG
