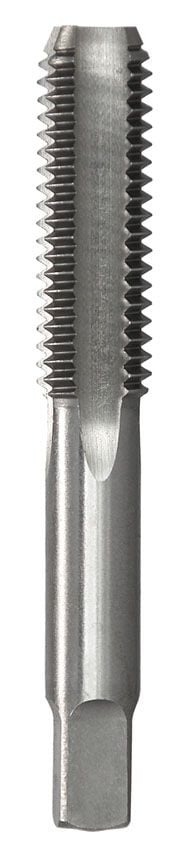

Bordo 1-1/2 BSPT (Rc Series Pipe Taper) Chrome Alloy Tap – Bottoming

Description

1-1/2 BSPT (Rc Series Pipe Taper) Chrome Alloy Tap – Bottoming
Chrome Alloy BSPT Bottoming Hand Tap.
Used as thread chasers to clean an existing thread.
They can also be used to create a new female thread in non-ferrous metals and plastics.
Chrome alloy taps are not suitable for creating precision, safety or critical threads.
British Standard Pipe Taper (RC Series Pipe Taper) is based on the Whitworth thread form – a symmetrical V-thread with an angle of 55º. BSPT has been widely adopted internationally for interconnecting and sealing pipe ends by mating an external (male) with an internal (female) thread. The thread diameter increases along the length of the thread allowing the coupled pipes to form a seal when torqued as the flanks of the threads compress against each other.
The taper is “1 to 16”, meaning that for each 16 mm increase in the distance from the end, the diameter increases by 1 mm.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Category: Bordo, Taps & Dies, Chrome Alloy Taps, Chrome Alloy BSPT (Rc Series Pipe Taper)
Drill Diameter (mm): 43.5
Overall Length (mm): 108
Pitch (tpi): 11
Lead: Bottoming
