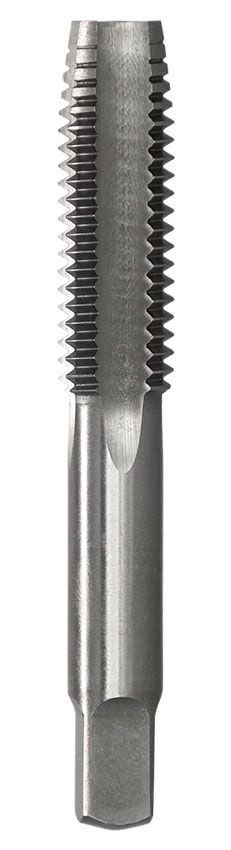

1-1/4″ x 11 BSPF Intermediate Chrome Tap
Chrome Alloy BSPF (G Series) Intermediate Hand Tap.
Used as thread chasers to clean an existing thread.
They can also be used to create a new female thread in non-ferrous metals and plastics.
Chrome alloy taps are not suitable for creating precision, safety or critical threads.
British Standard Pipe (G Series) is a pipe thread which is used mainly for mechanical coupling. The angle of thread is mainly 55º however for the US method some threads have a 60º angle. It is specified according to JIS and ISO R228.
Intermediate Taps have a lead of four threads and are used in most general purpose applications to cut a thread true to a pre-drilled pilot hole.
Category: Bordo, Taps & Dies, Chrome Alloy Taps, Chrome Alloy BSPF (G Series)
Drill Diameter (mm): 39.5
Overall Length (mm): 102
Pitch (tpi): 11
Lead: Intermediate
| Weight | 0.6770 kg |
|---|---|
| Dimensions | Length 11cm x Width 5.5cm x Depth 5.5cm |
| barcode | 9326518044840 |
