$413.77$376.15 Ex. GST

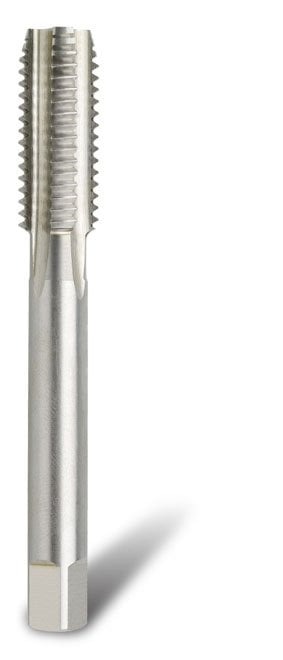

1-1/8″ x 7 BSW Bottoming HSS Tap
HSS BSW Bottoming Hand and Machine Tap.
British Standard Whitworth has a thread angle of 55 degrees as opposed to 60 degrees in Metric and Unified threads. This thread form was developed by Sir Joseph Whitworth in 1841. The thread form has rounded roots and crests and is specified in BS84:1956.
Bottoming Taps have a lead of two threads and are used to ensure minimum thread run-out when tapping to the bottom of a blind hole.
Bottoming Taps are typically preceded by the use of a Taper or Intermediate Tap.
Manufactured from HSS this general purpose tap is designed for use in medium tensile materials and is for hand or general machine use.
Category: Bordo, Taps & Dies, HSS Hand and Machine Taps, HSS Tap BSW
Drill Diameter (mm): 25
Overall Length (mm): 138
Pitch (tpi): 7
Lead: Bottoming
| Weight | 0.3610 kg |
|---|---|
| Dimensions | Length 16cm x Width 4cm x Depth 4cm |
| barcode | 9326518026174 |
| Additional Information |
