$52.12$47.38 Ex. GST

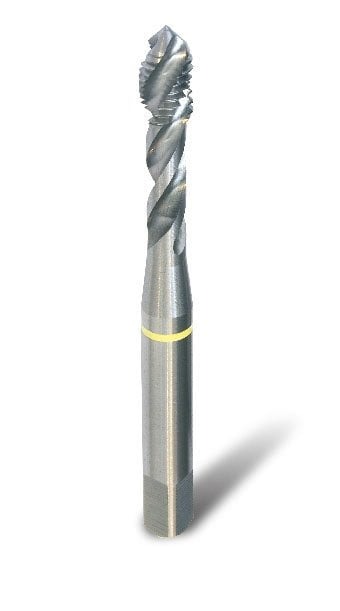

10mm HSSE-V3 Yellow Band Spiral Flute Tap
HSSE-V3 HSSE with 3% Vanadium high performance tap.
Optimised for machining Aluminium and Aluminium Alloys.
Spiral flute with 40º helix angle.
Designed for tapping blind holes where the right hand spiral forces swarf out of the hole and prevents clogging which may cause breakage or spoiled threads.
Designed to withstand the high stress and high heat associated with CNC production tapping.
Optimised geometry to manage difficult long chip formation and material which has tendencies to stick to the tool.
For machining materials with Hardness < 200 HB : Tensile Strength <700 N/mm2.
Category: Bordo, Taps & Dies, Colour Band High Performance Taps, Yellow Band HSS Aluminium Tapping , Spiral Flute
Overall Length (mm): 100
Pitch (mm): 1.5
| Weight | 0.0550 kg |
|---|---|
| Dimensions | Length 12cm x Width 1.5cm x Depth 1.5cm |
| barcode | 9326518094364 |
| Additional Information |
