$462.00$420.00 Ex. GST
LANG – Clean•Tec Chip Fan – “The Original”
Diameter 260mm
20mm SHANK suits ER32 collet chucks
Also avail in 160mm & 330mm
CODE ; LG-30160; LG-30330
The automatic cleaning of workpieces and fixtures after the machining process

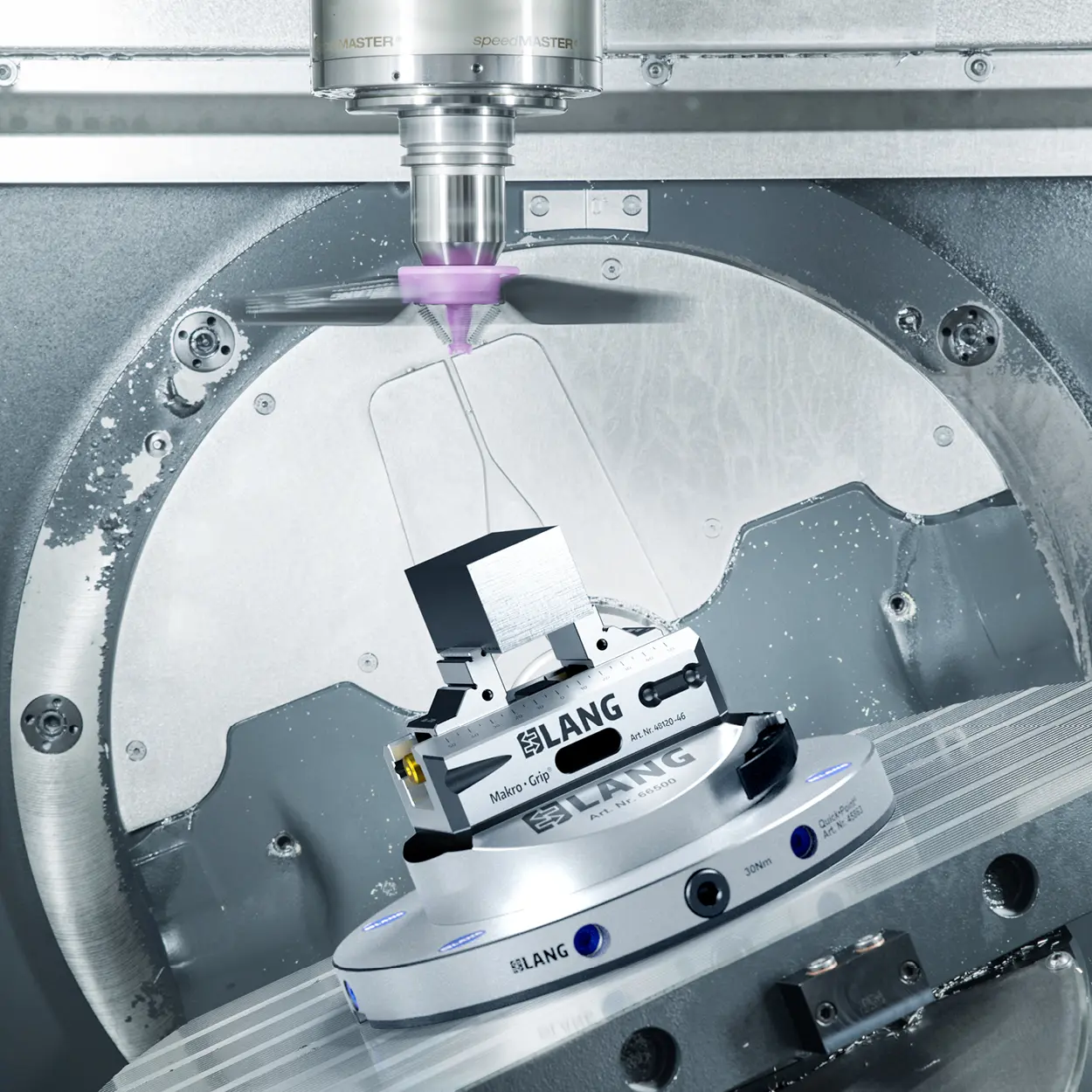

The Clean•Tec, “The Original” Chip Fan cleans the machine interior after machining processes, removing chips and coolant without the operator having to open the machine tool door. As a final step in the machining process, the Chip Fan is called up via the machine program and selected from the tool magazine.

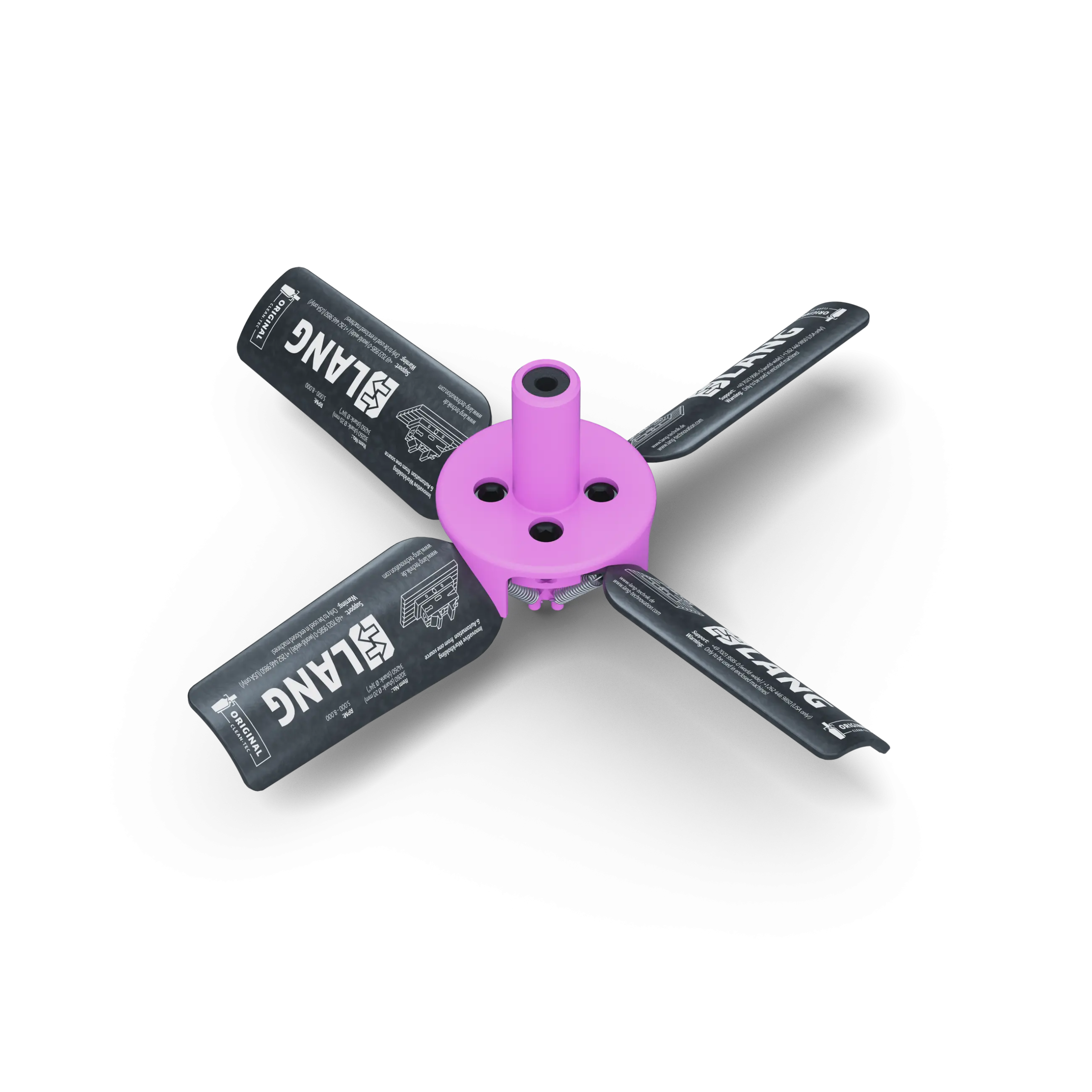

Its blades are opened and closed by controlling the speed of the machine tool spindle. Especially in automated manufacturing the Clean•Tec is a must-have. Prior to the automatic unloading, the Chip Fan cleans all relevant interfaces between workholding fixtures and thus ensures a clean and reliable process.
| Weight | 0.2000 kg |
|---|---|
| Dimensions | Length 20cm x Width 10cm x Depth 10cm |
| barcode | |
| Additional Information | Benefits of the LANG Clean•Tec Chip Fan Clean machining environment thanks to in-process cleaning Energy savings and no need for expensive compressed air Ideal for unmanned, automated manufacturing Flexible application possibilities due to different sizes Suitable for every standard tool holder Space savings in the tool magazine thanks to the slim design Socket diameter |
