$693.55$630.50 Ex. GST

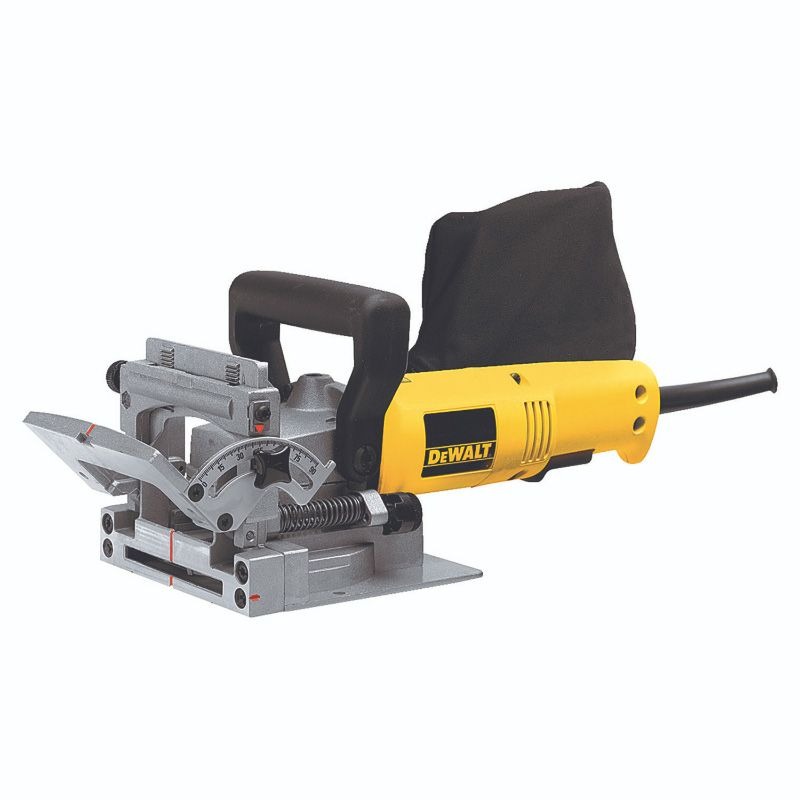

The DW682K Plate Joiner Kit has a powerful motor for working with hard woods. Features a dual rack and pinion fence ensuring blade and fence parallelism for accurate joints every time. Integral one-piece fence is adjustable and tilts 0-90°.
FEATURES & BENEFITS
Rack and pinion control provides precise vertical adjustment and fence alignment
Pre-set cutting depths for 0, 10 and 20 biscuit sizes with additional fine adjustment for ultimate accuracy
Grooving setting with up to 20 mm depth of cut gives increased versatility
Mitre fence that remains attached in all applications for simple use
Anti slide grippers, eight guiding notches and fence window to aid accurate cuts
Spindle lock mechanism for quick and easy blade changes with a single spanner
SPECIFICATIONS
No Load Speed 10000 rpm
Max. Cutter Diameter 100 mm
Max. Cutting Depth 20 mm
Fence adjustment 0-90 °
Joint Groover Setting 4 mm
Weight 3.0 kg
INCLUDES
Tungsten carbide tipped grooving cutter
Shavings bag
Spanner
35 mm Dust extraction spout
Heavy duty carrying case
| Weight | 3.0000 kg |
|---|---|
| barcode | |
| Additional Information | Part Number: DEWDW682K-XE |
