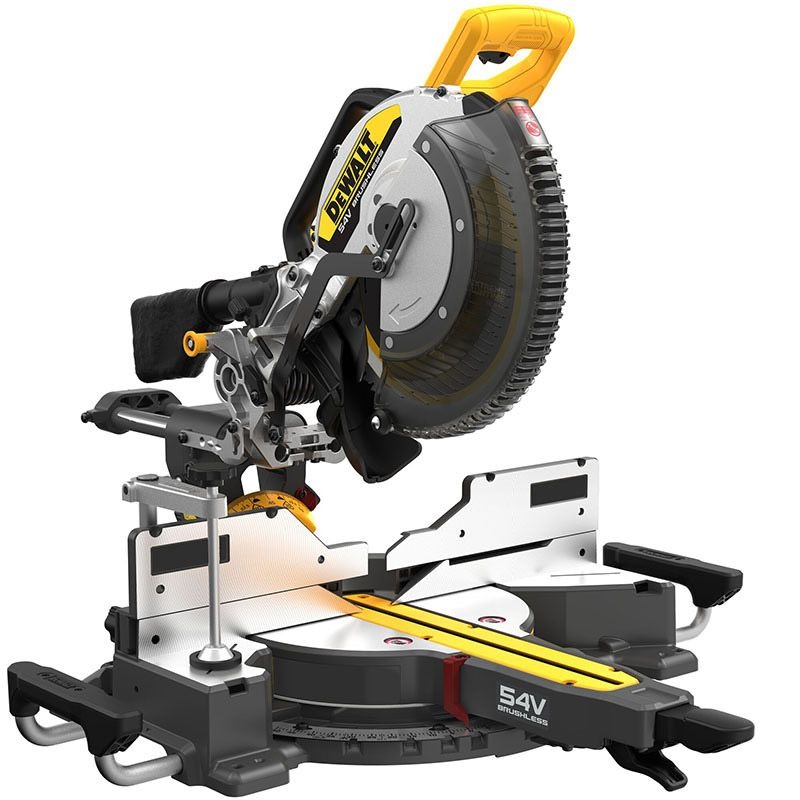

DEWALT – MITRE SAW, 54V XR FLEXVOLT 305mm, BARE UNIT

Description

Features & Benefits
AirLock compatible dust extraction provides cleaner and safer jobsites
Wireless Tool Control allows direct connection to a compatible vac, which provides increased runtime and improves efficiency
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the jobsite
The large 120mm high dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
Outstanding cutting performance in both small profiles and large construction timbers up to 90 x 310 mm
Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° – 50° left and 0° – 60° right
Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49° left and right
Side extension handles improve portability and handling whilst providing a stable, base for wider material. The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
Base and fence designed, machined and checked to the highest standards of accuracy to deliver 0.1° accuracy in key applications

Specifications
Voltage: 54V
No Load Speed: 3800RPM
Blade Diameter: 305mm
Mitre (L/R): 50° L / 60° R
Bevel (L/R): 48° L / 48° R
Bore Diameter: 30mm
Cross Cut Capacity (90°/90°): 90 x 310mm
Mitre Capacity (90°/45°): 90 x 219mm
Bevel Capacity (45°/90°): 50 x 296mm
Max Cutting Depth: 165 x 19mm

Includes
60T XR EXTREME RUNTIME 305mm Blade
Stabilizer Bar
Base Extensions (2)
Material Clamp
