$2,698.12$2,452.84 Ex. GST

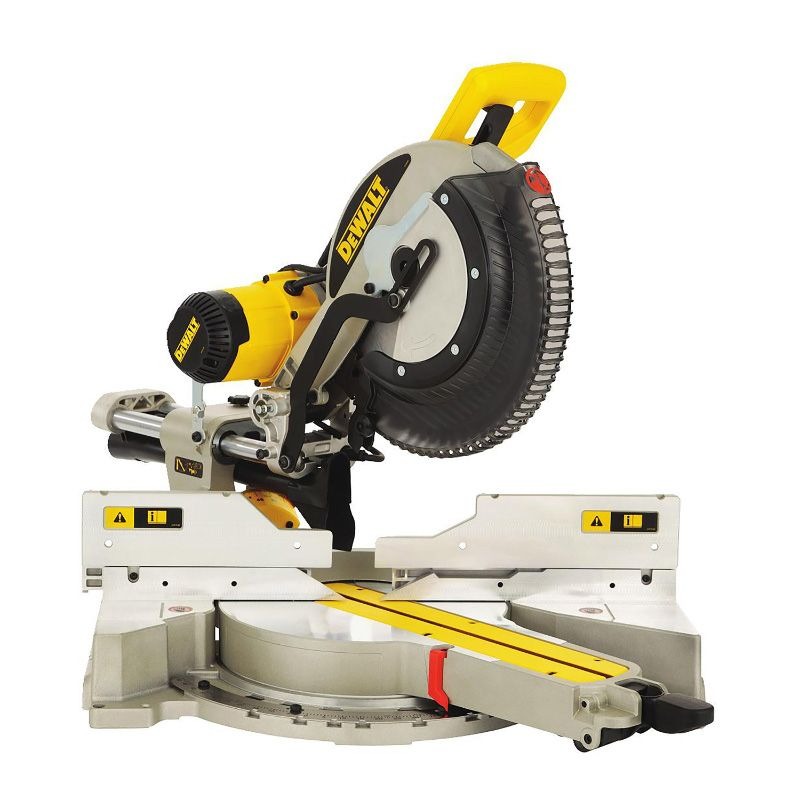

The 305mm Double Bevel Sliding Compound Miter Saw has a 1675W motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication.
FEATURES & BENEFITS
Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool.
New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° – 50° left and 0° – 60° right
Long life Accuracy in Table and Fence Design
The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
SPECIFICATIONS
Power Input 1675 Watts
Blade Speed 3800 rpm
Blade Diameter 305 mm
Blade Bore 25.4 mm
Bevel Capacity 49/49 °
Mitre Capacity [right/left] 60/50 °
Cutting Capacity at 90°/90° (W x H) 303 x110 mm
Cutting Capacity at 45°/90° (W x H) 268 x 63 mm
Max. Depth of Cut [Saws] 170 mm
Weight 24.8 kg
INCLUDES
High Quality 60 tooth blade
Blade spanner
Dust bag
Material Clamp
| Weight | 24.8000 kg |
|---|---|
| barcode | |
| Additional Information | Part Number: DEWDWS780-XE |
