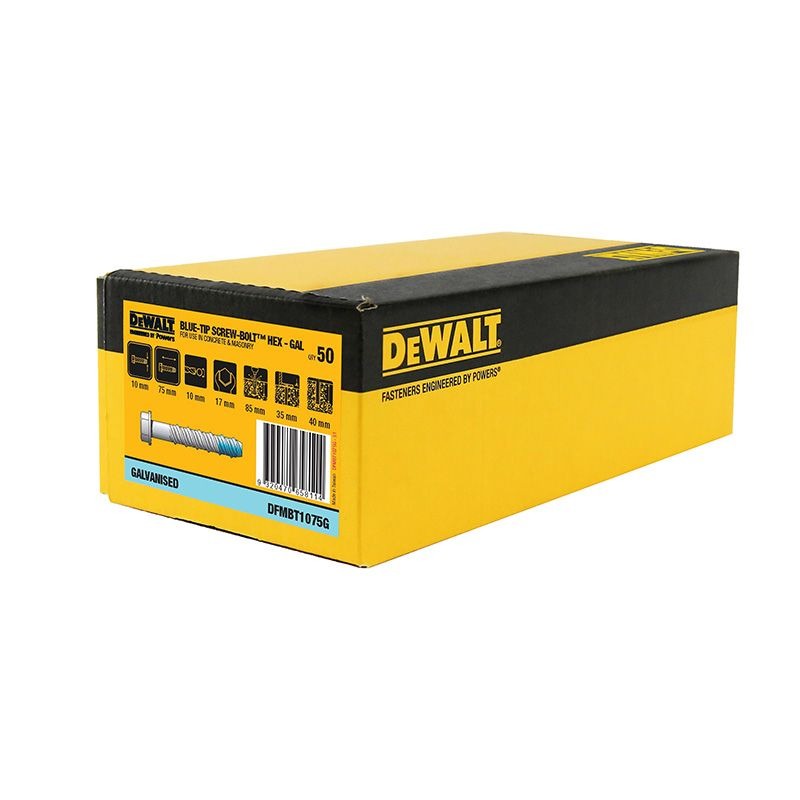

DEWALT – SCREW BOLT, BLUE-TIP GAL HEX HEAD 10 x 75mm [50]

Description

Blue-Tip Screw-Bolt™ is a high tensile one-piece heavy duty concrete thread forming anchor with a patented dual lead thread and a chamfered tip for fast installation with immediate high strength loading. They are simple to install and provide a strong, secure hold for high load applications and small edge distances, making it the preferred choice for a fast, reliable installation into a variety of substrates. The anchors are designed with a dust relief thread that allows for low installation torque, are fully removable and are designed to resist structural and non-structural loading in concrete, lightweight concrete, block, brick and stone. Blue-Tip Screw-Bolt™ can be installed at a shallower embedment than traditional wedge or sleeve anchors reducing the chance of striking reinforcing bars or embedded cables.

FEATURES & BENEFITS
Ratchet teeth design provides a strong hold against base
Ratchet teeth design provides a strong hold against base
Head marking clearly indicates correct hole diameter
One piece design for easy installation
Can be installed at small edge distances
Dust relief thread allows for low installation torque
Grips over the total anchor length

SPECIFICATIONS
Size: 10
Length: 75
Min Embedment Depth: 40
Max Fixture Thickness: 35
Socket Size: 17

USAGE & APPLICATIONS
Attaching steel / timber to concrete, ventilation systems, racking and shelving, temporary supports, fencing, railings, stadium seating, base plates, substructures
