DORMER A00219/64 Jobber Drills

Product Code: A00219/64

$17.11$15.55 Ex. GST

Product Code: A00219/64 SKU A00219/64 Categories , ,

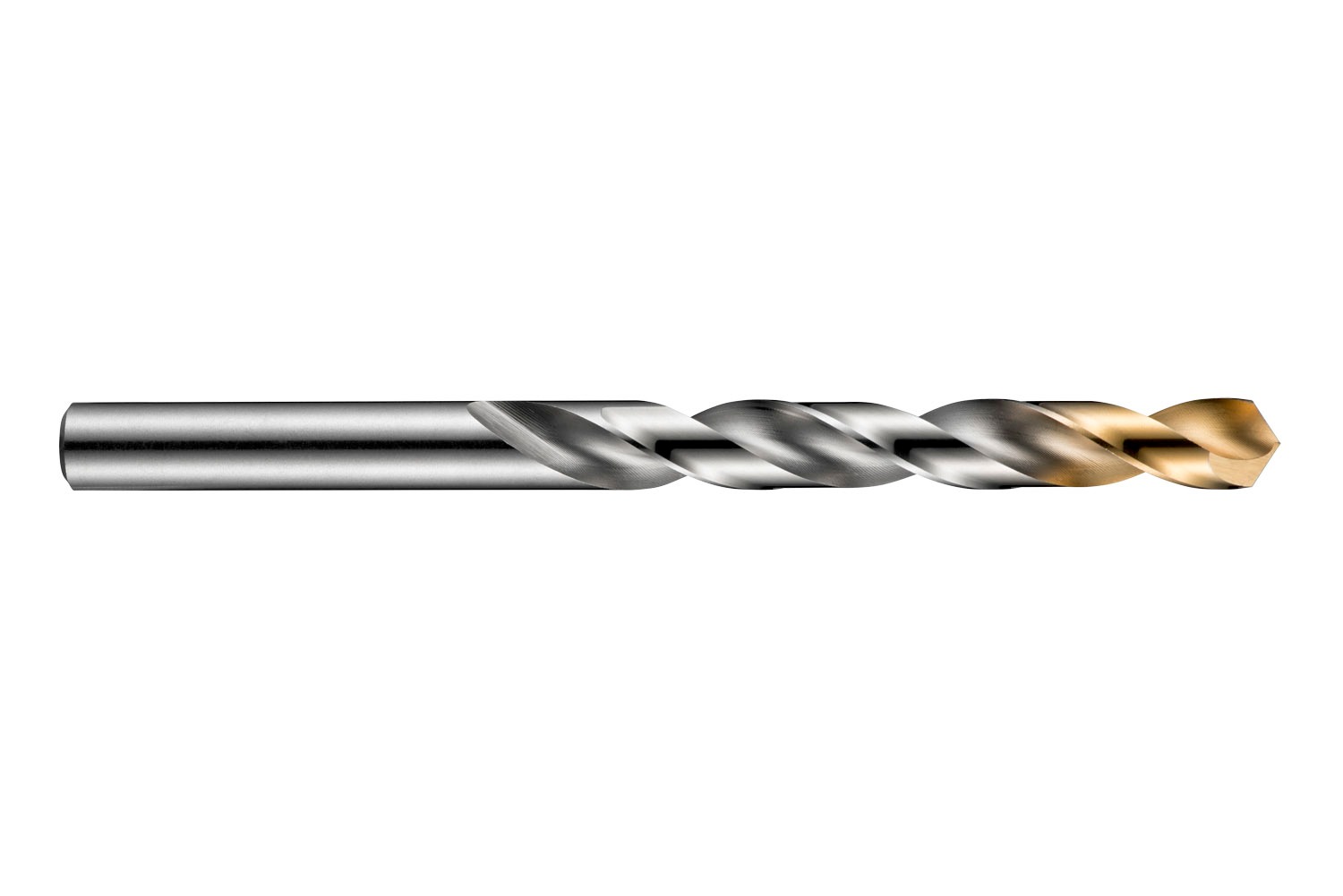

DORMER A00219/64 Jobber Drills
DORMER A00219/64 Jobber Drills - Image 2
DORMER A00219/64 Jobber Drills - Image 3
DORMER A00219/64 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.2969″ (19/64) with an overall length of 117mm and flute length of 75mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0166 kg
Dimensions Length 11.7cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760351147
Product number (SAP): 86008010
Ordering code ANSI: A00219/64
Gross weight – grams: 31.36

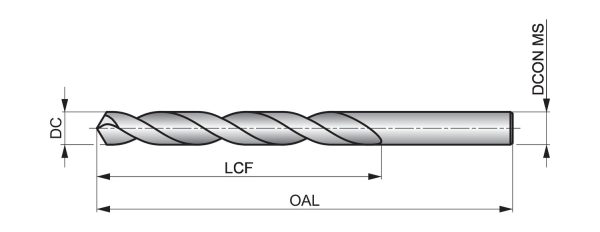

Cutting diameter – fractional inch (DC): 19/64
Cutting diameter – millimeter (DC): 7.54 mm
Cutting diameter – inch (DC): 0.2969 inch
Length chip flute – millimeter (LCF): 75 mm
Overall length – millimeter (OAL): 117 mm
Connection diameter – millimeter (DCON MS): 7.54 mm
Length chip flute – inch (LCF): 2.9528 inch
ISO: A00219/64

Brand

DORMER
