DORMER A0022.3 Jobber Drills

Product Code: A0022.3

$5.10$4.64 Ex. GST

Product Code: A0022.3 SKU A0022.3 Categories , ,

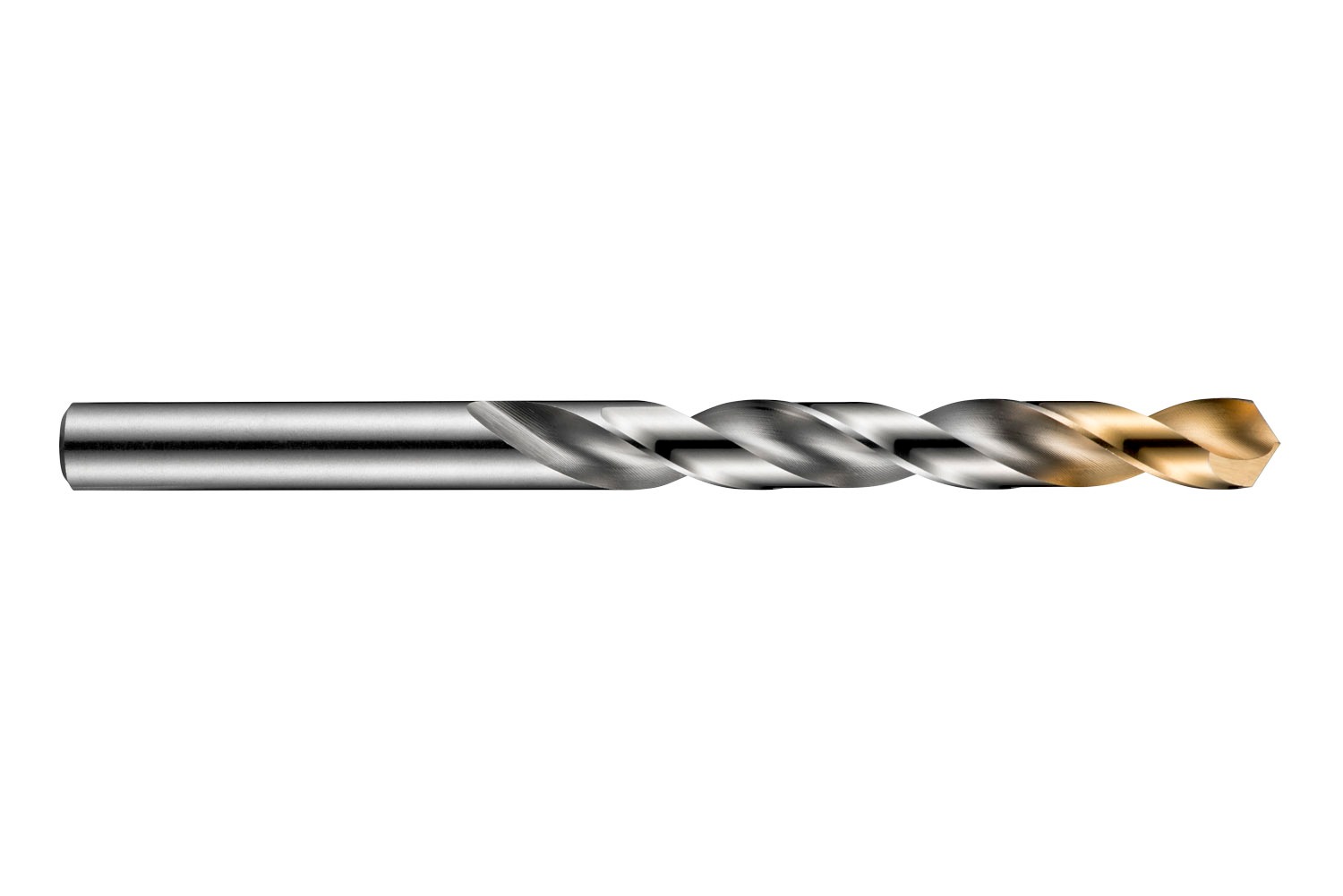

DORMER A0022.3 Jobber Drills
DORMER A0022.3 Jobber Drills - Image 2
DORMER A0022.3 Jobber Drills - Image 3
DORMER A0022.3 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 2.3mm with an overall length of 53mm and flute length of 27mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0050 kg
Dimensions Length 5.3cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760376904
Product number (SAP): 86008014
Ordering code ANSI: A0022.3
Gross weight – grams: 1.75

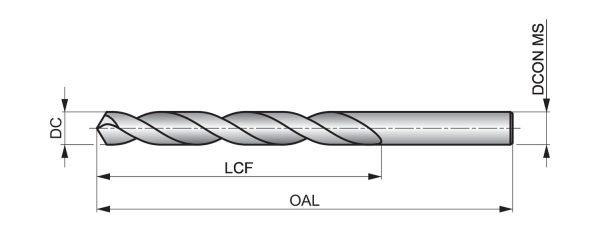

Cutting diameter – millimeter (DC): 2.3 mm
Cutting diameter – inch (DC): 0.0906 inch
Length chip flute – millimeter (LCF): 27 mm
Overall length – millimeter (OAL): 53 mm
Connection diameter – millimeter (DCON MS): 2.3 mm
Length chip flute – inch (LCF): 1.063 inch
ISO: A0022.3

Brand

DORMER
