DORMER A00223/64 Jobber Drills

Product Code: A00223/64

$24.48$22.25 Ex. GST

Product Code: A00223/64 SKU A00223/64 Categories , ,
DORMER A00223/64 Jobber Drills

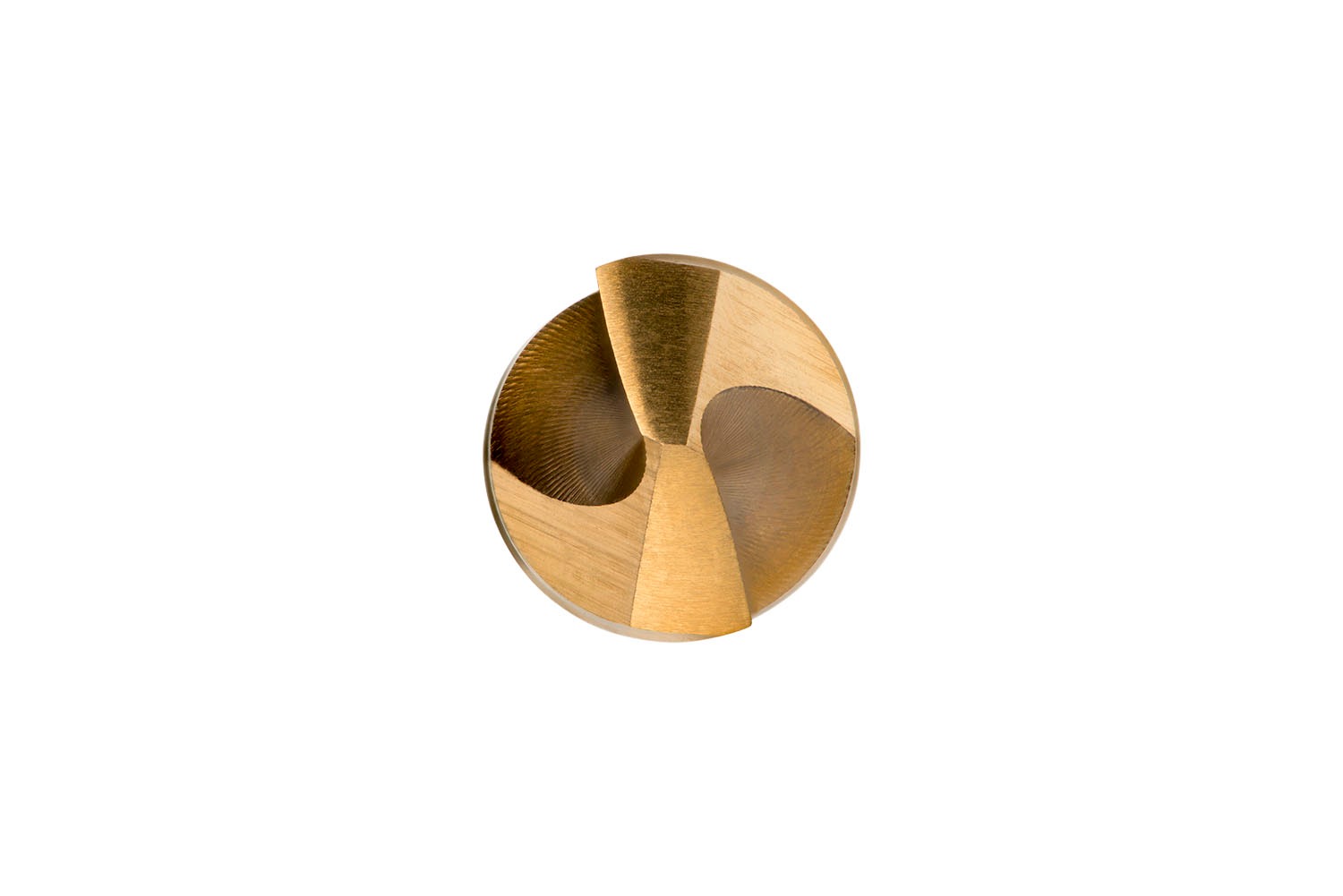

DORMER A00223/64 Jobber Drills - Image 2

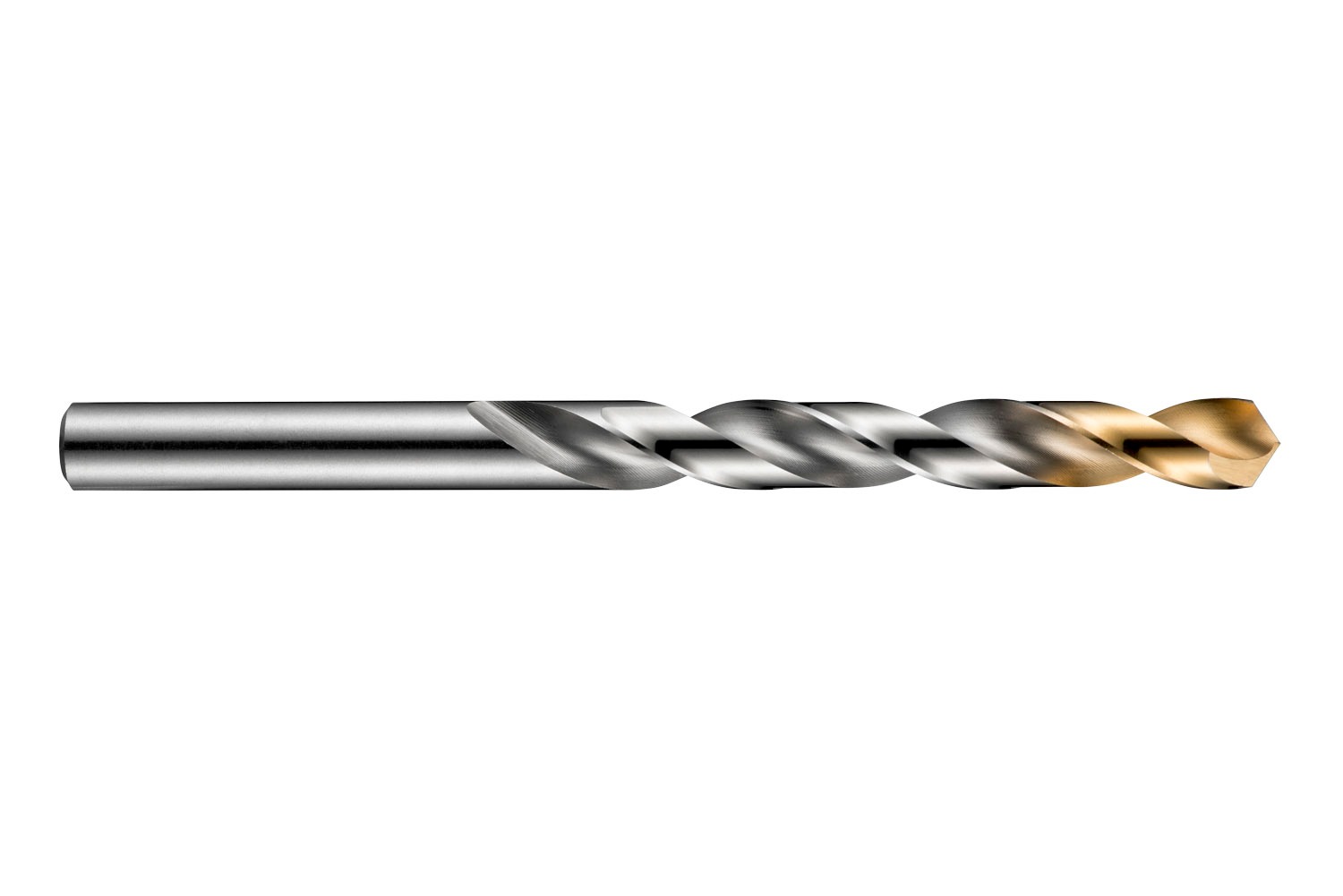

DORMER A00223/64 Jobber Drills - Image 3

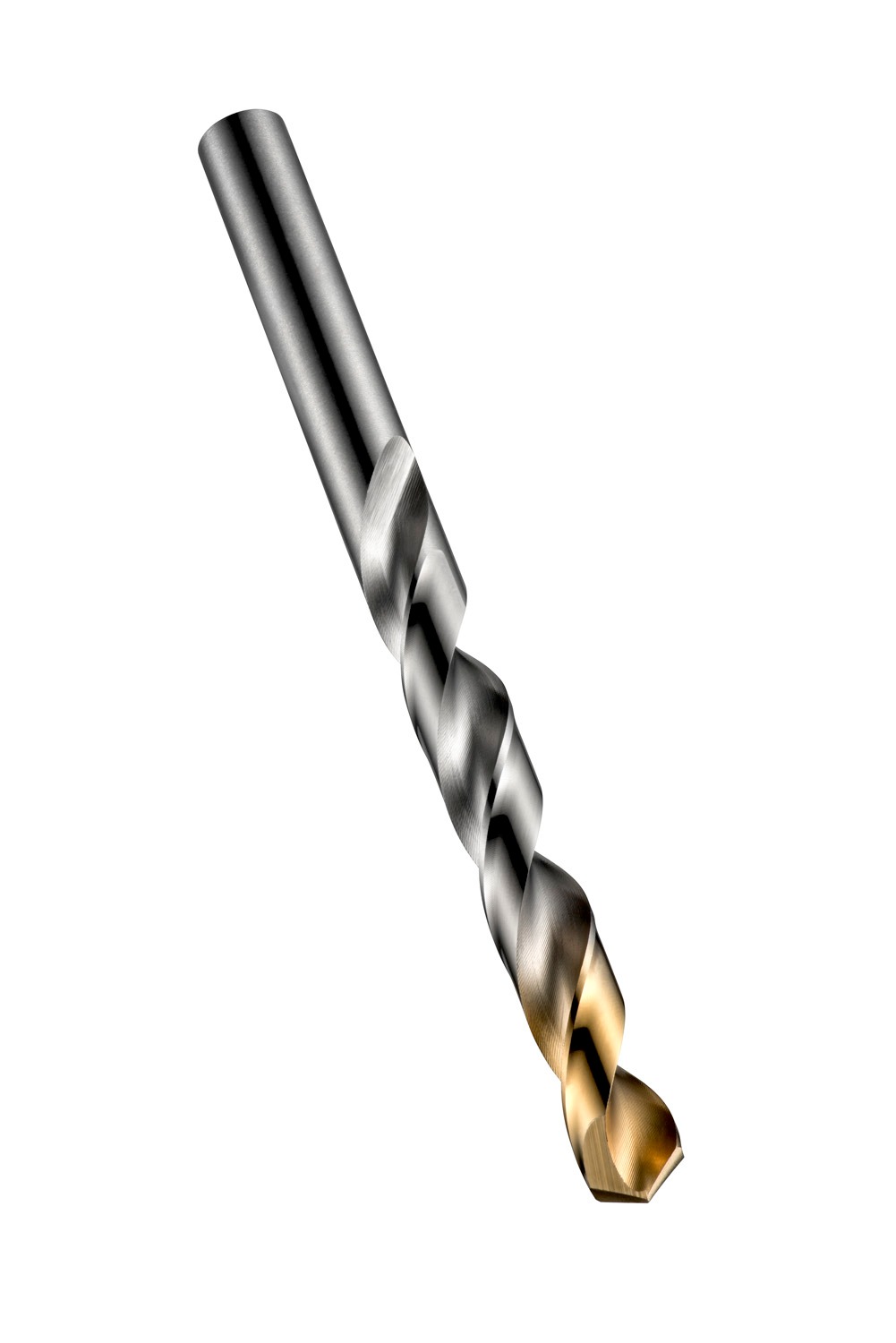

DORMER A00223/64 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.3594″ (23/64) with an overall length of 125mm and flute length of 81mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0238 kg
Dimensions Length 12.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760351345
Product number (SAP): 86008022
Ordering code ANSI: A00223/64
Gross weight – grams: 46.66

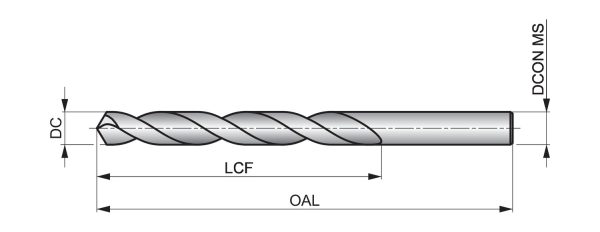

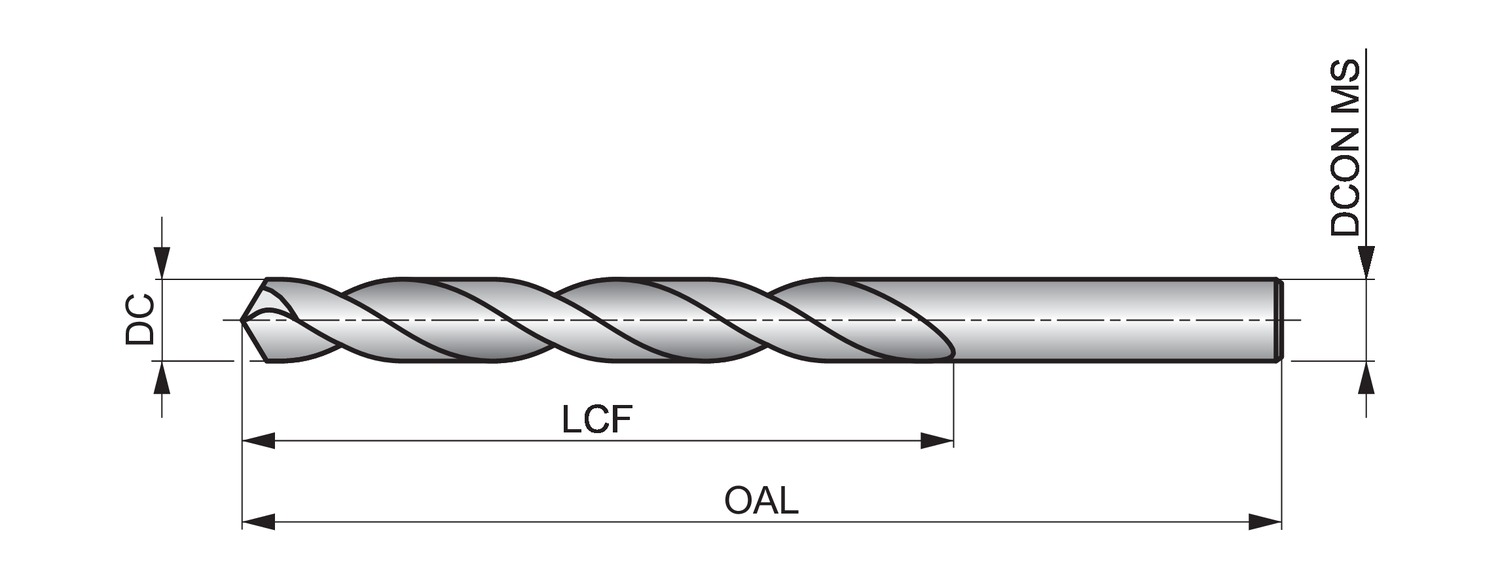

Cutting diameter – fractional inch (DC): 23/64
Cutting diameter – millimeter (DC): 9.13 mm
Cutting diameter – inch (DC): 0.3594 inch
Length chip flute – millimeter (LCF): 81 mm
Overall length – millimeter (OAL): 125 mm
Connection diameter – millimeter (DCON MS): 9.13 mm
Length chip flute – inch (LCF): 3.189 inch
ISO: A00223/64

Brand

DORMER
