DORMER A0023.1 Jobber Drills

Product Code: A0023.1

$5.56$5.05 Ex. GST

Product Code: A0023.1 SKU A0023.1 Categories , ,
DORMER A0023.1 Jobber Drills
DORMER A0023.1 Jobber Drills - Image 2
DORMER A0023.1 Jobber Drills - Image 3
DORMER A0023.1 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

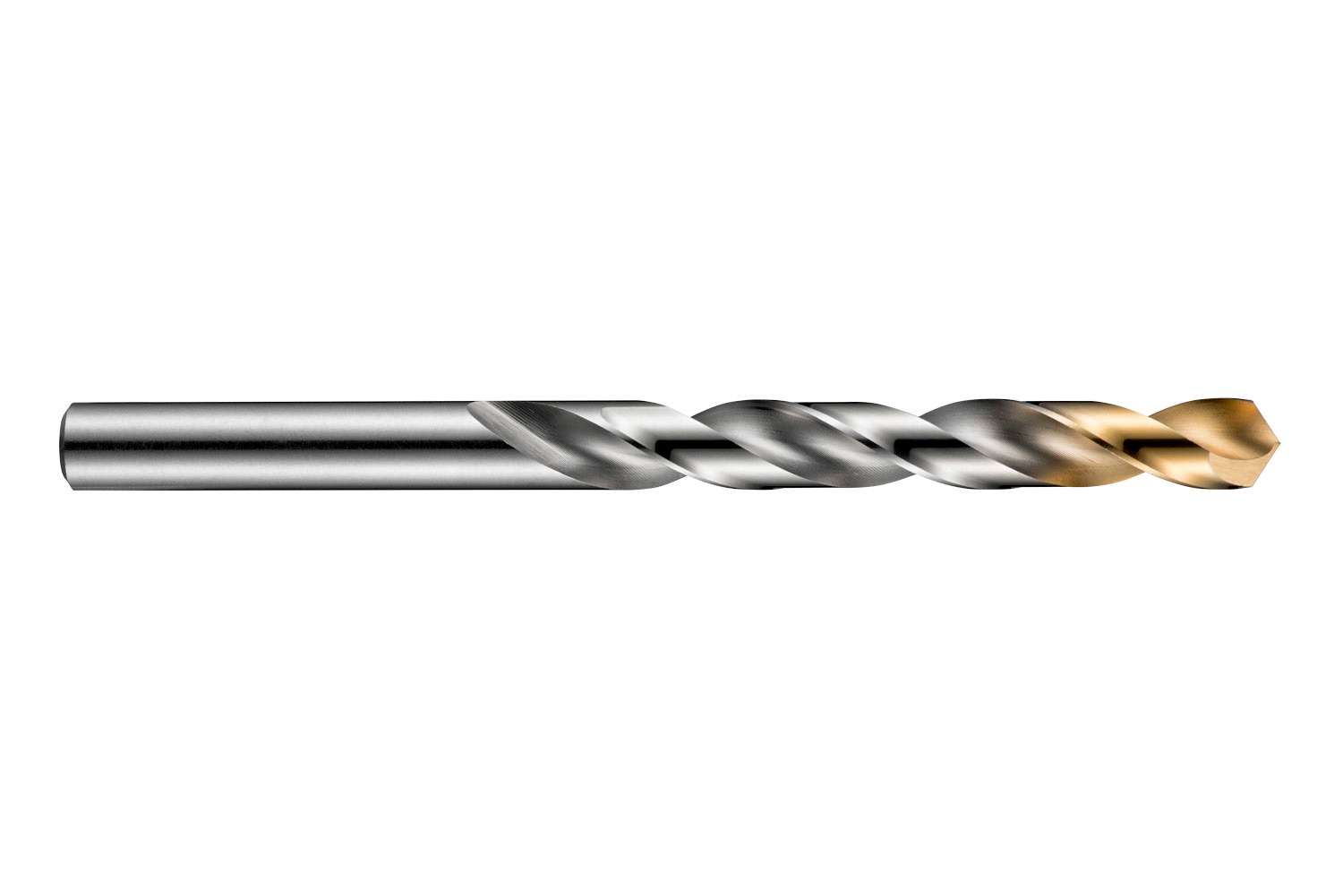

Jobber length drill with straight shank, diameter 3.1mm with an overall length of 65mm and flute length of 36mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0054 kg
Dimensions Length 6.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760350584
Product number (SAP): 86008027
Ordering code ANSI: A0023.1
Gross weight – grams: 3.29

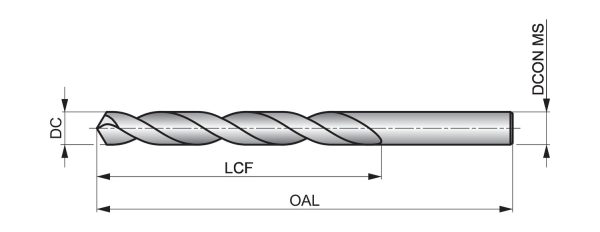

Cutting diameter – millimeter (DC): 3.1 mm
Cutting diameter – inch (DC): 0.122 inch
Length chip flute – millimeter (LCF): 36 mm
Overall length – millimeter (OAL): 65 mm
Connection diameter – millimeter (DCON MS): 3.1 mm
Length chip flute – inch (LCF): 1.4173 inch
ISO: A0023.1

Brand

DORMER
