DORMER A0023/16 Jobber Drills

Product Code: A0023/16

$6.85$6.23 Ex. GST

Product Code: A0023/16 SKU A0023/16 Categories , ,

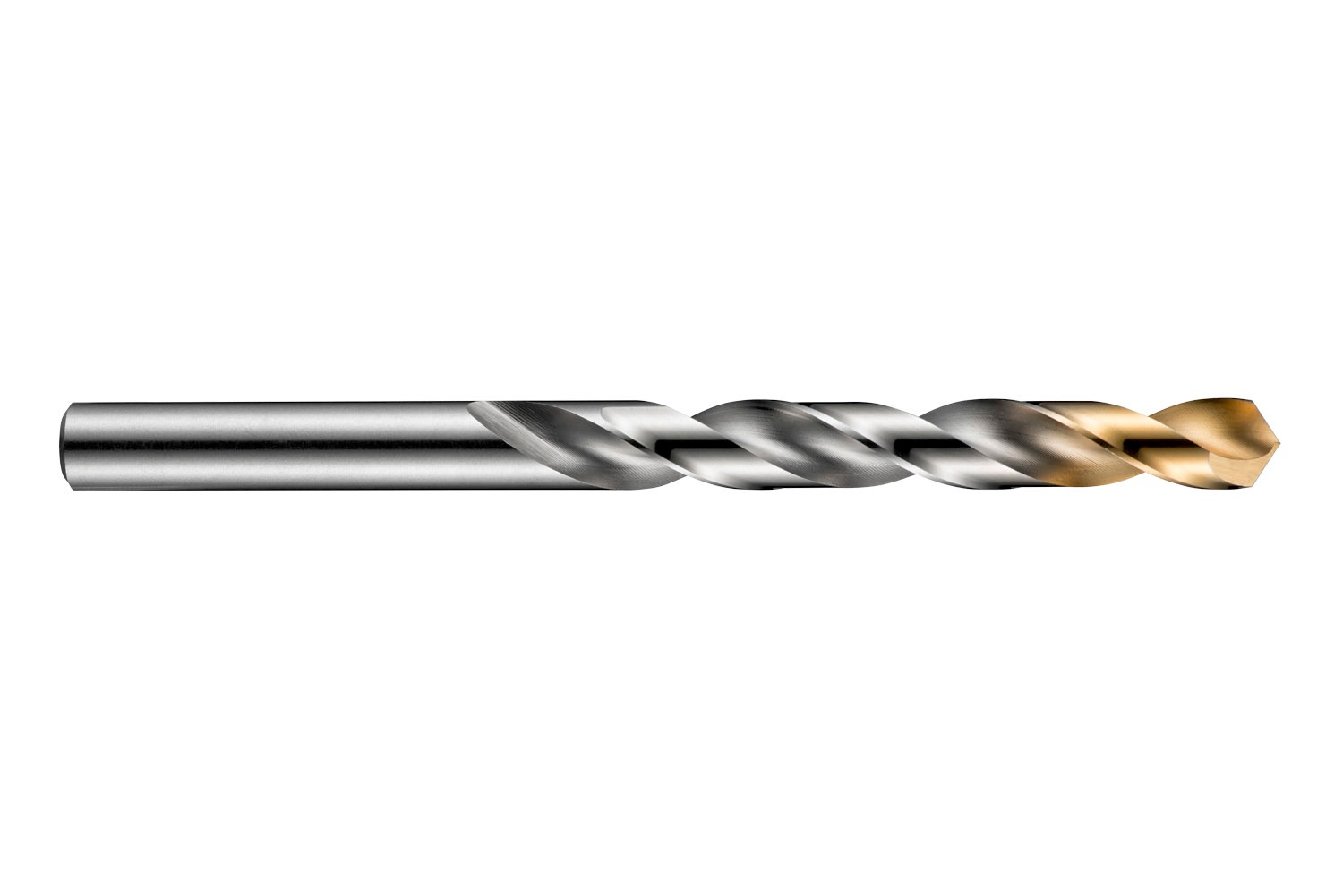

DORMER A0023/16 Jobber Drills

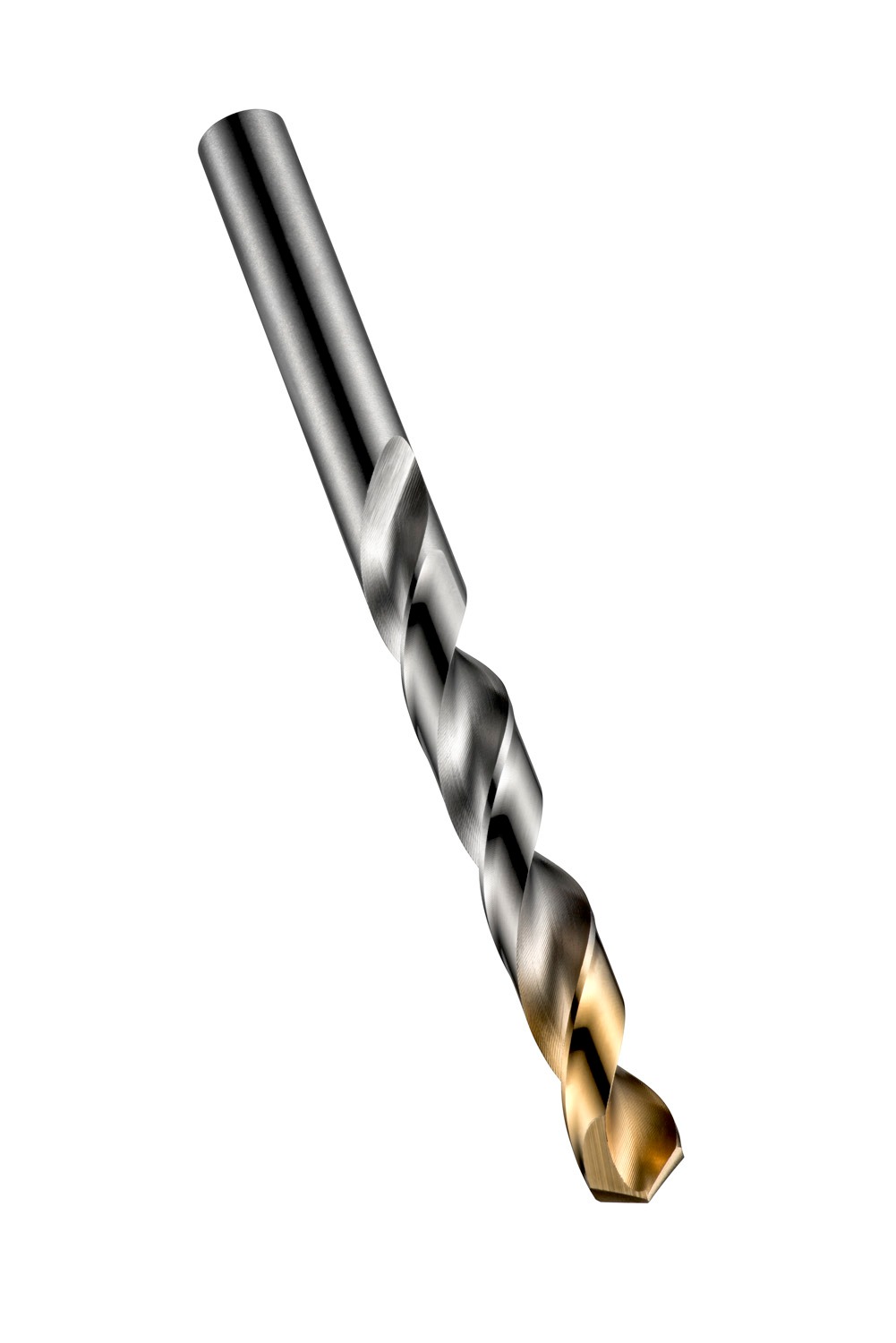

DORMER A0023/16 Jobber Drills - Image 2

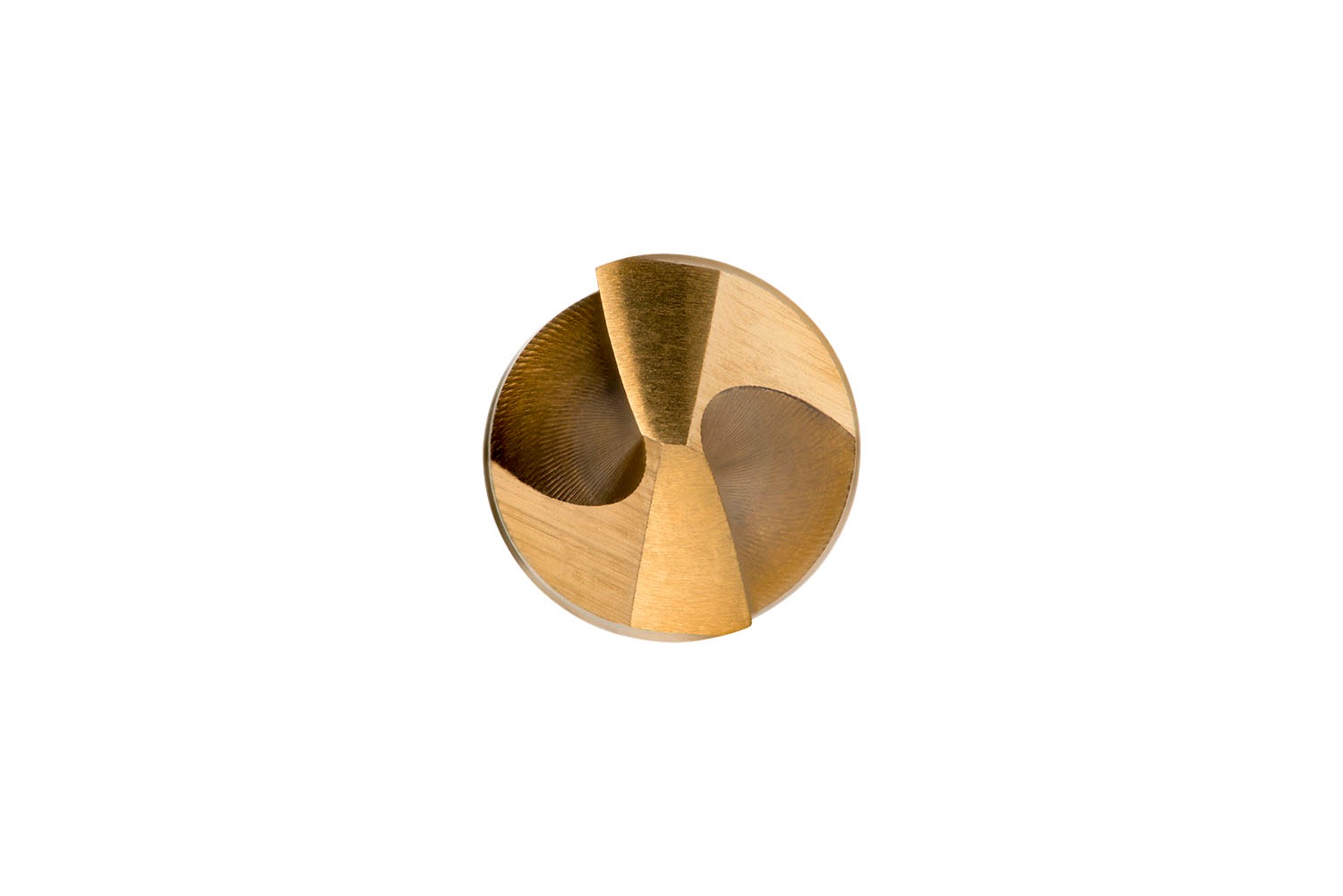

DORMER A0023/16 Jobber Drills - Image 3
DORMER A0023/16 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.1875″ (3/16) with an overall length of 86mm and flute length of 52mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0067 kg
Dimensions Length 8.6cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760350799
Product number (SAP): 86008037
Ordering code ANSI: A0023/16
Gross weight – grams: 9.35

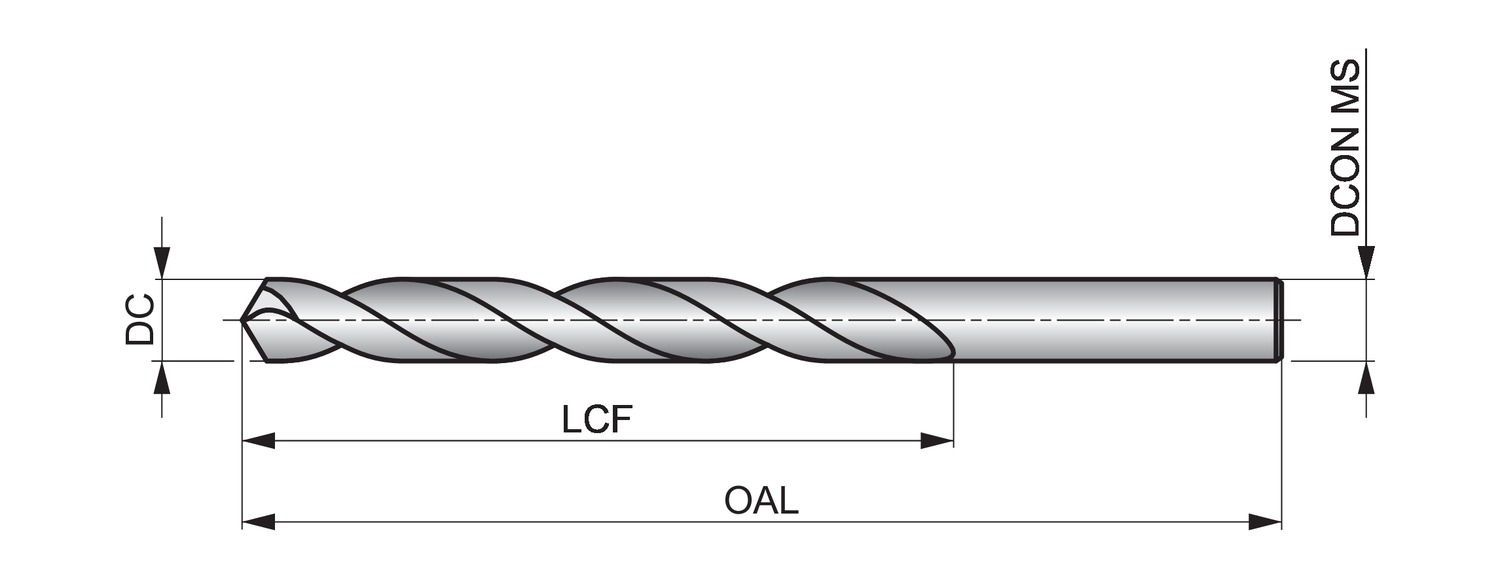

Cutting diameter – fractional inch (DC): 3/16
Cutting diameter – millimeter (DC): 4.76 mm
Cutting diameter – inch (DC): 0.1875 inch
Length chip flute – millimeter (LCF): 52 mm
Overall length – millimeter (OAL): 86 mm
Connection diameter – millimeter (DCON MS): 4.76 mm
Length chip flute – inch (LCF): 2.0472 inch
ISO: A0023/16

Brand

DORMER
