DORMER A0023/32 Jobber Drills

Product Code: A0023/32

$4.76$4.33 Ex. GST

Product Code: A0023/32 SKU A0023/32 Categories , ,

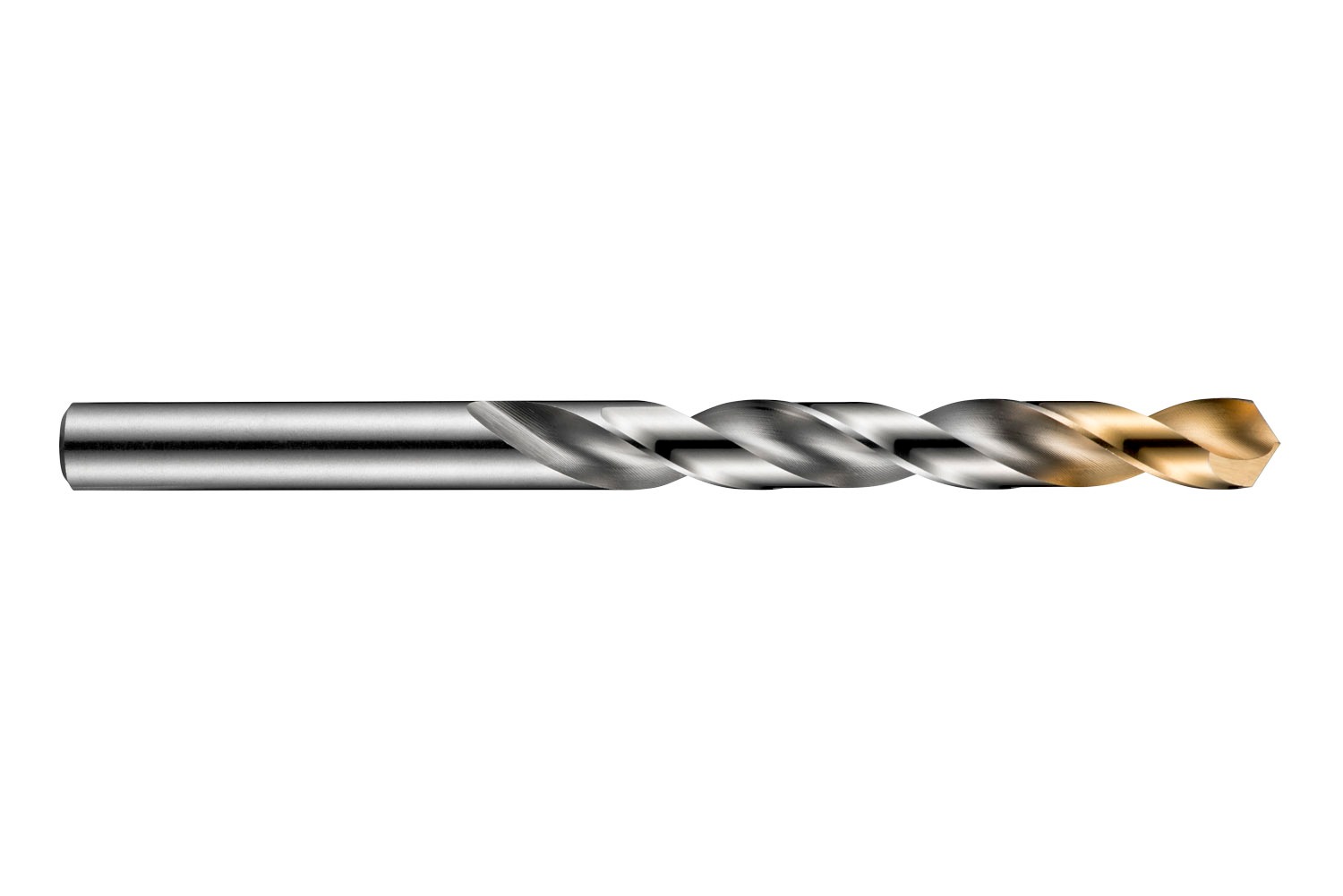

DORMER A0023/32 Jobber Drills
DORMER A0023/32 Jobber Drills - Image 2
DORMER A0023/32 Jobber Drills - Image 3
DORMER A0023/32 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.0938″ (3/32) with an overall length of 57mm and flute length of 30mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0046 kg
Dimensions Length 5.7cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760376119
Product number (SAP): 86008038
Ordering code ANSI: A0023/32
Gross weight – grams: 1.93

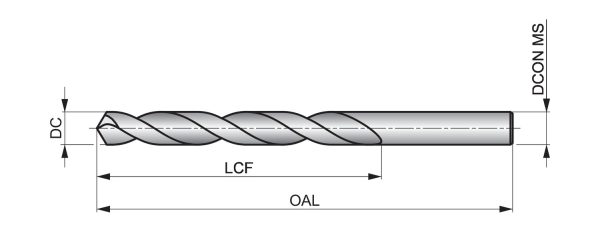

Cutting diameter – fractional inch (DC): 3/32
Cutting diameter – millimeter (DC): 2.38 mm
Cutting diameter – inch (DC): 0.0938 inch
Length chip flute – millimeter (LCF): 30 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 2.38 mm
Length chip flute – inch (LCF): 1.1811 inch
ISO: A0023/32

Brand

DORMER
