DORMER A0023.6 Jobber Drills

Product Code: A0023.6

$6.06$5.51 Ex. GST

Product Code: A0023.6 SKU A0023.6 Categories , ,

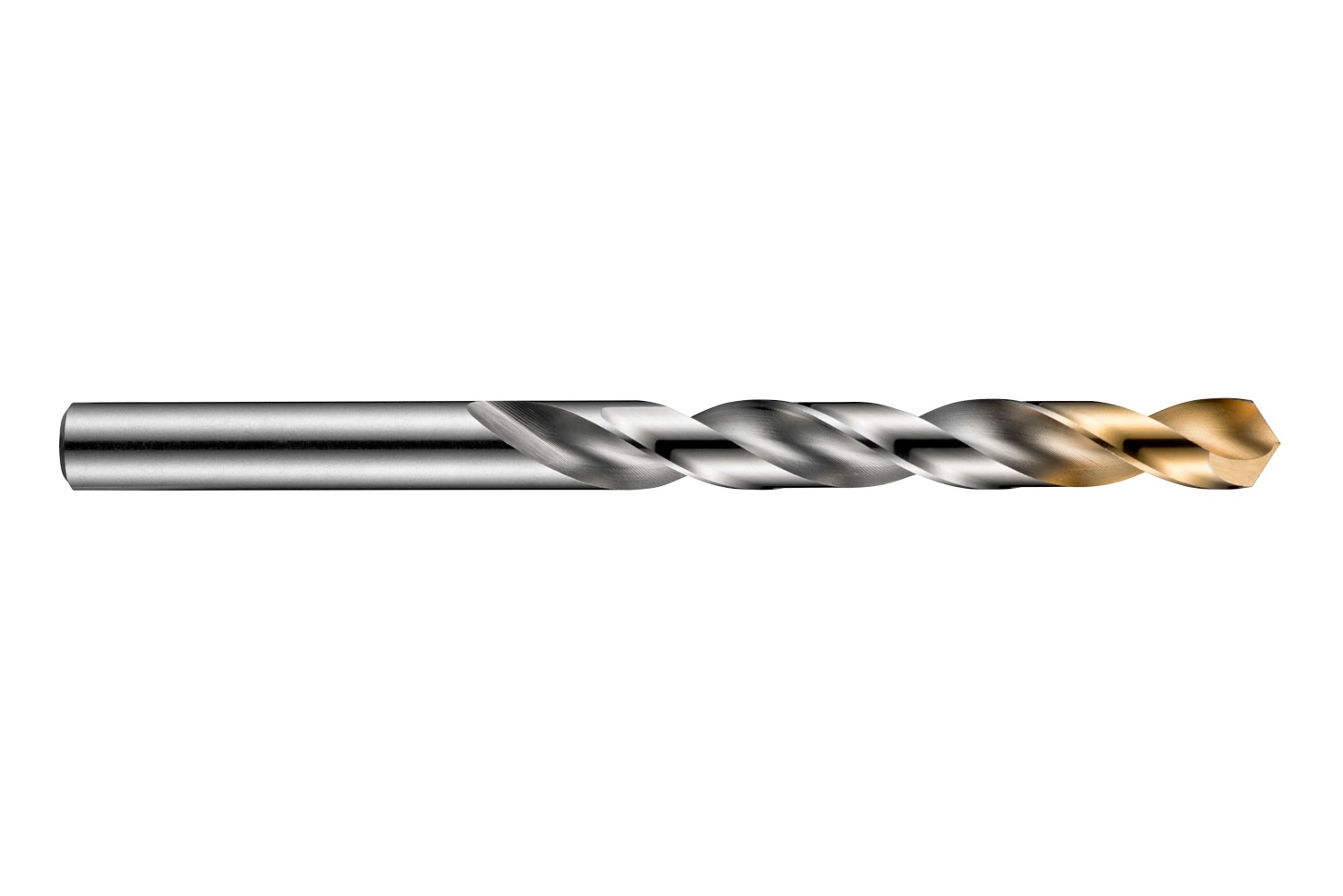

DORMER A0023.6 Jobber Drills
DORMER A0023.6 Jobber Drills - Image 2
DORMER A0023.6 Jobber Drills - Image 3
DORMER A0023.6 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 3.6mm with an overall length of 70mm and flute length of 39mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0059 kg
Dimensions Length 7cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760350652
Product number (SAP): 86008033
Ordering code ANSI: A0023.6
Gross weight – grams: 4.5

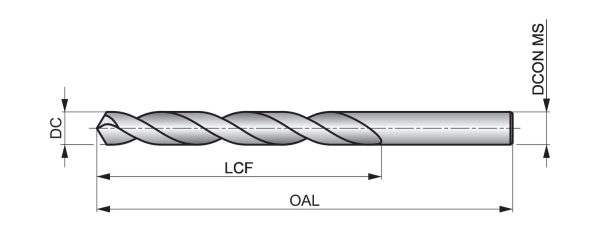

Cutting diameter – millimeter (DC): 3.6 mm
Cutting diameter – inch (DC): 0.1417 inch
Length chip flute – millimeter (LCF): 39 mm
Overall length – millimeter (OAL): 70 mm
Connection diameter – millimeter (DCON MS): 3.6 mm
Length chip flute – inch (LCF): 1.5354 inch
ISO: A0023.6

Brand

DORMER
