DORMER A0023/64 Jobber Drills

Product Code: A0023/64

$6.17$5.61 Ex. GST

Product Code: A0023/64 SKU A0023/64 Categories , ,

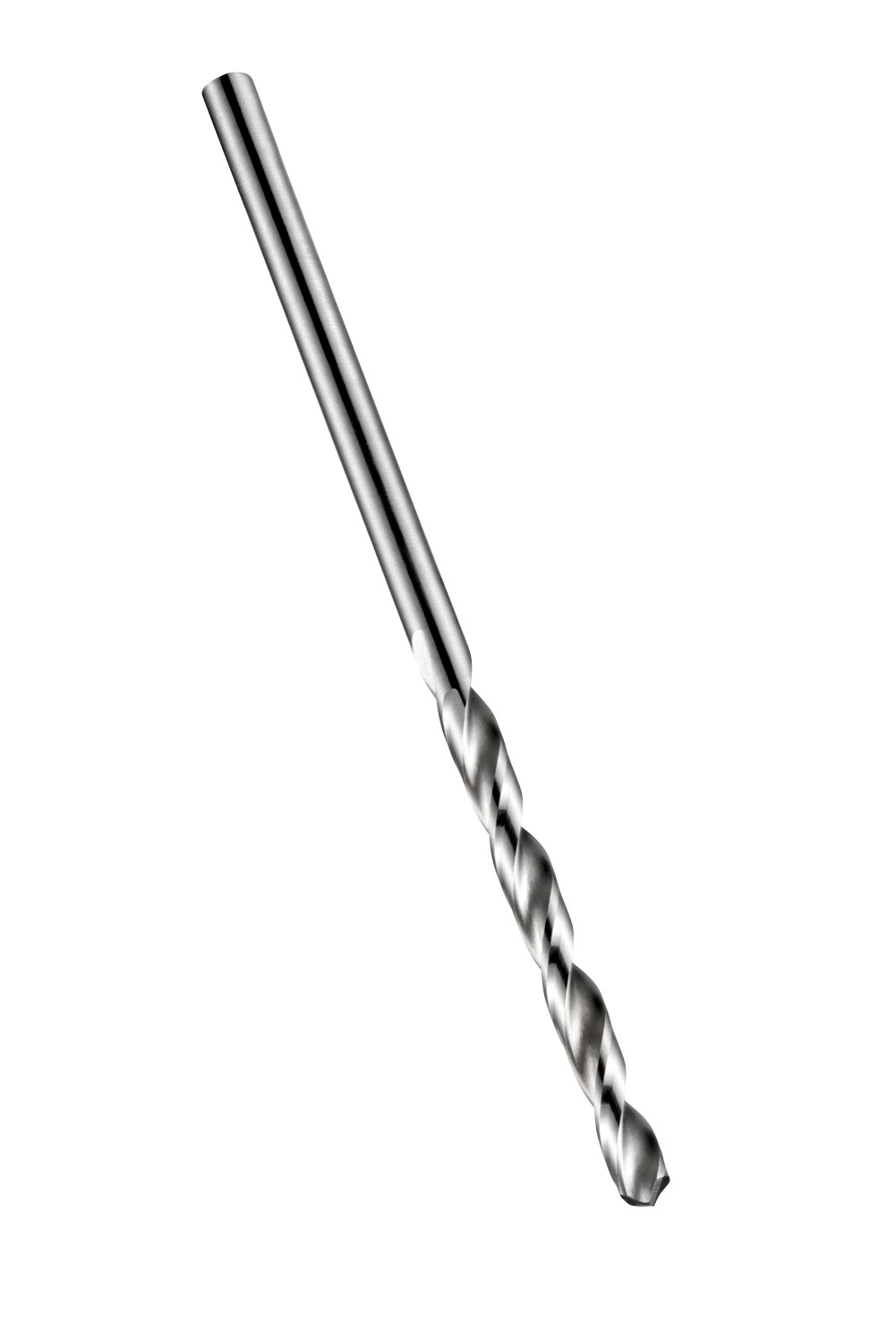

DORMER A0023/64 Jobber Drills
DORMER A0023/64 Jobber Drills - Image 2

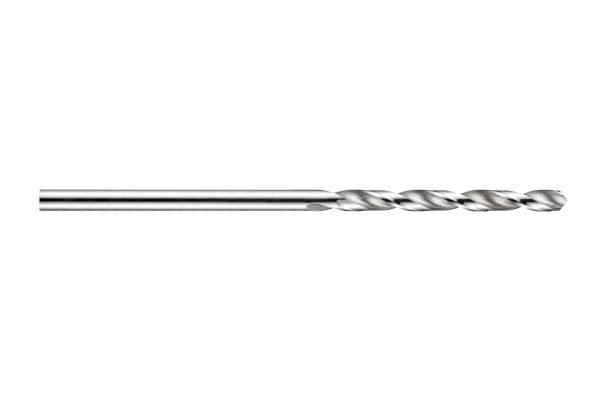

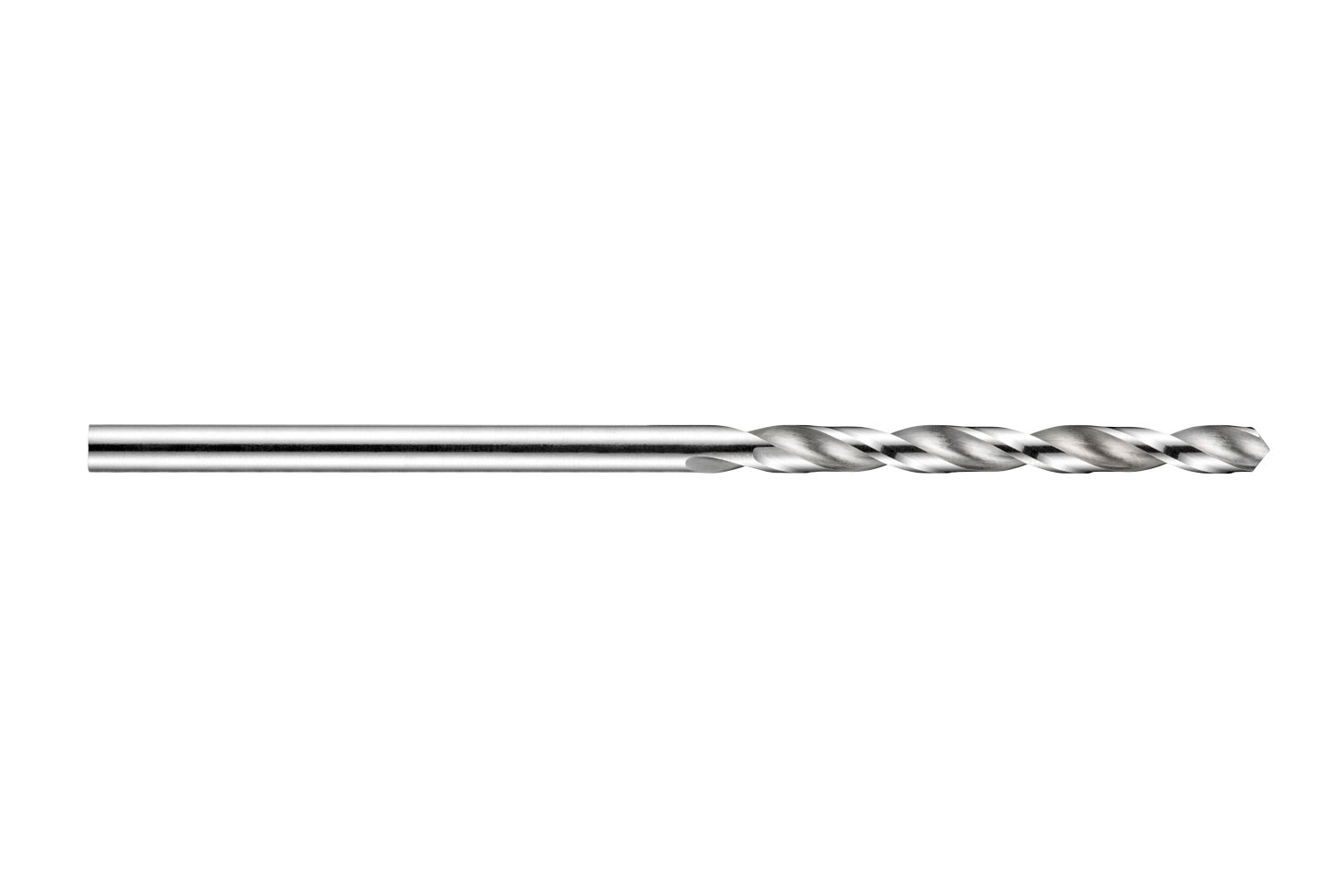

DORMER A0023/64 Jobber Drills - Image 3

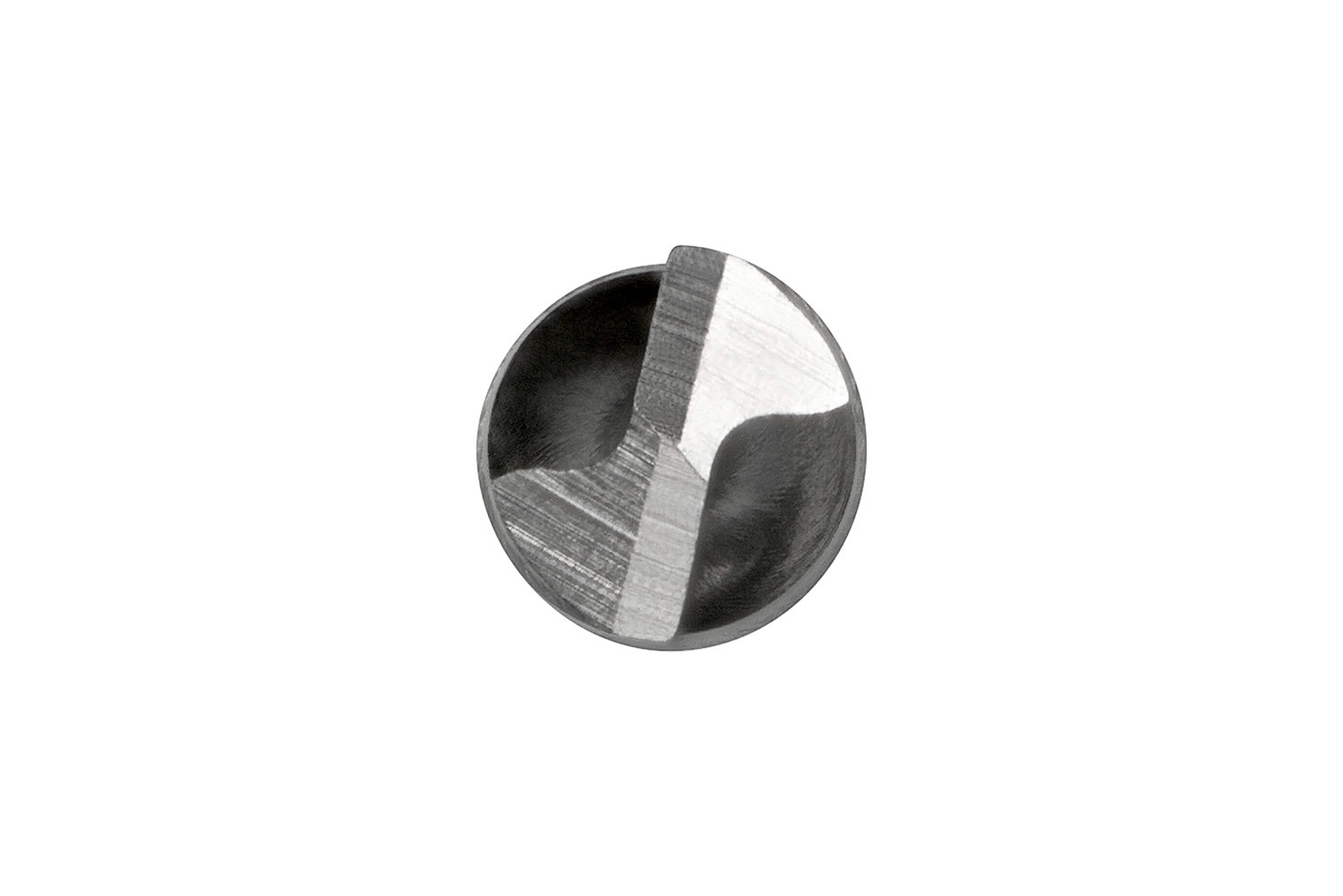

DORMER A0023/64 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.0469″ (3/64) with an overall length of 38mm and flute length of 16mm according to DIN 338 standard with 118° conical point, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0060 kg
Dimensions Length 3.8cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760376928
Product number (SAP): 86008039
Ordering code ANSI: A0023/64
Gross weight – grams: 0.42

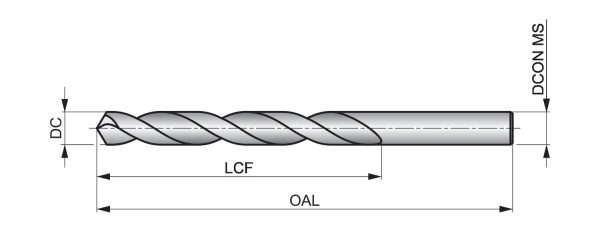

Cutting diameter – fractional inch (DC): 3/64
Cutting diameter – millimeter (DC): 1.19 mm
Cutting diameter – inch (DC): 0.0469 inch
Length chip flute – millimeter (LCF): 16 mm
Overall length – millimeter (OAL): 38 mm
Connection diameter – millimeter (DCON MS): 1.19 mm
Length chip flute – inch (LCF): 0.6299 inch
ISO: A0023/64

Brand

DORMER
