DORMER A0023.8 Jobber Drills

Product Code: A0023.8

$6.85$6.23 Ex. GST

Product Code: A0023.8 SKU A0023.8 Categories , ,

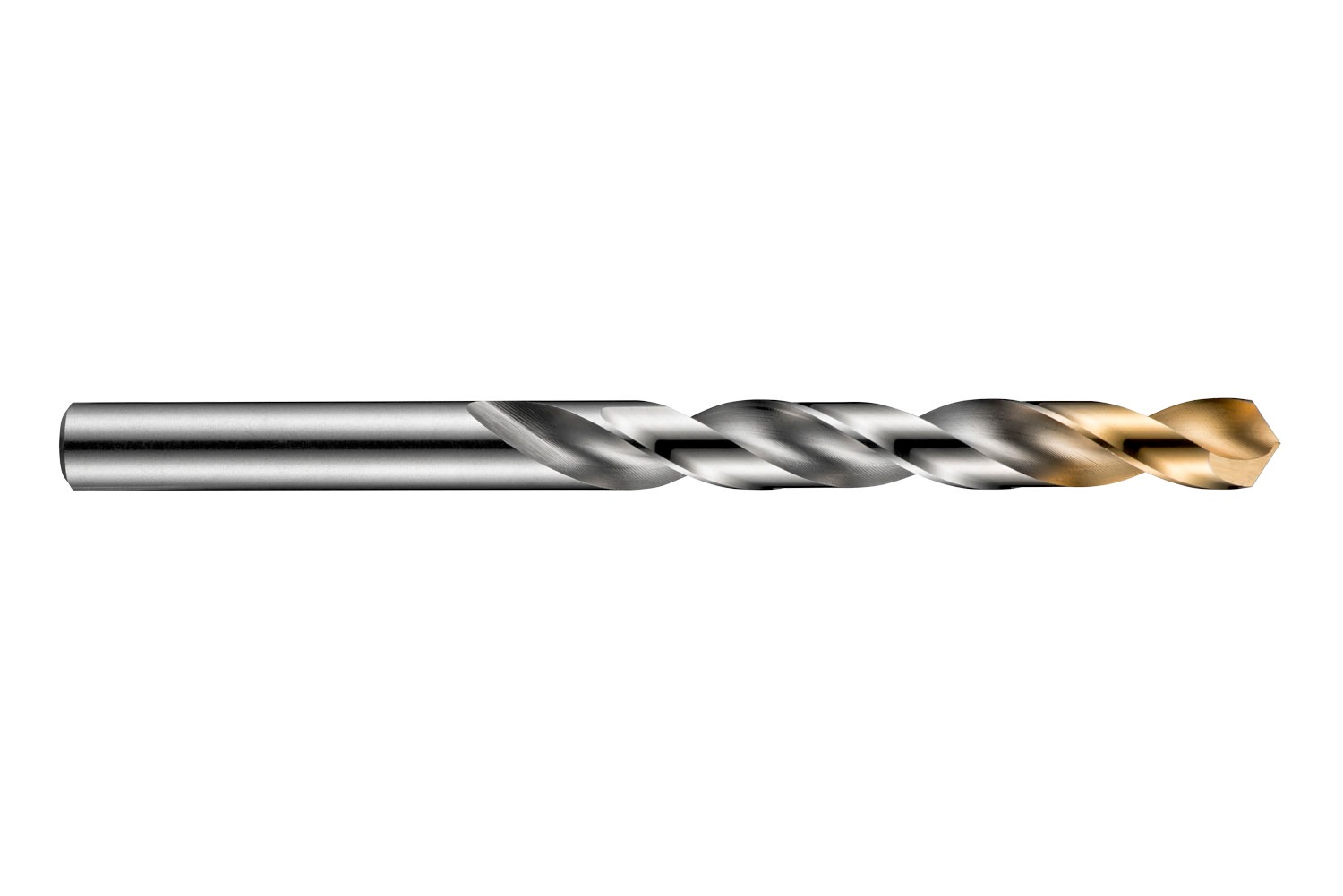

DORMER A0023.8 Jobber Drills
DORMER A0023.8 Jobber Drills - Image 2
DORMER A0023.8 Jobber Drills - Image 3
DORMER A0023.8 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 3.8mm with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0067 kg
Dimensions Length 7.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760350676
Product number (SAP): 86008035
Ordering code ANSI: A0023.8
Gross weight – grams: 5.27

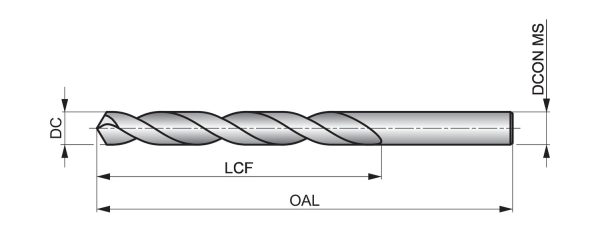

Cutting diameter – millimeter (DC): 3.8 mm
Cutting diameter – inch (DC): 0.1496 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 3.8 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: A0023.8

Brand

DORMER
