DORMER A00233/64 Jobber Drills

Product Code: A00233/64

$64.02$58.20 Ex. GST

Product Code: A00233/64 SKU A00233/64 Categories , ,
DORMER A00233/64 Jobber Drills
DORMER A00233/64 Jobber Drills - Image 2
DORMER A00233/64 Jobber Drills - Image 3
DORMER A00233/64 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

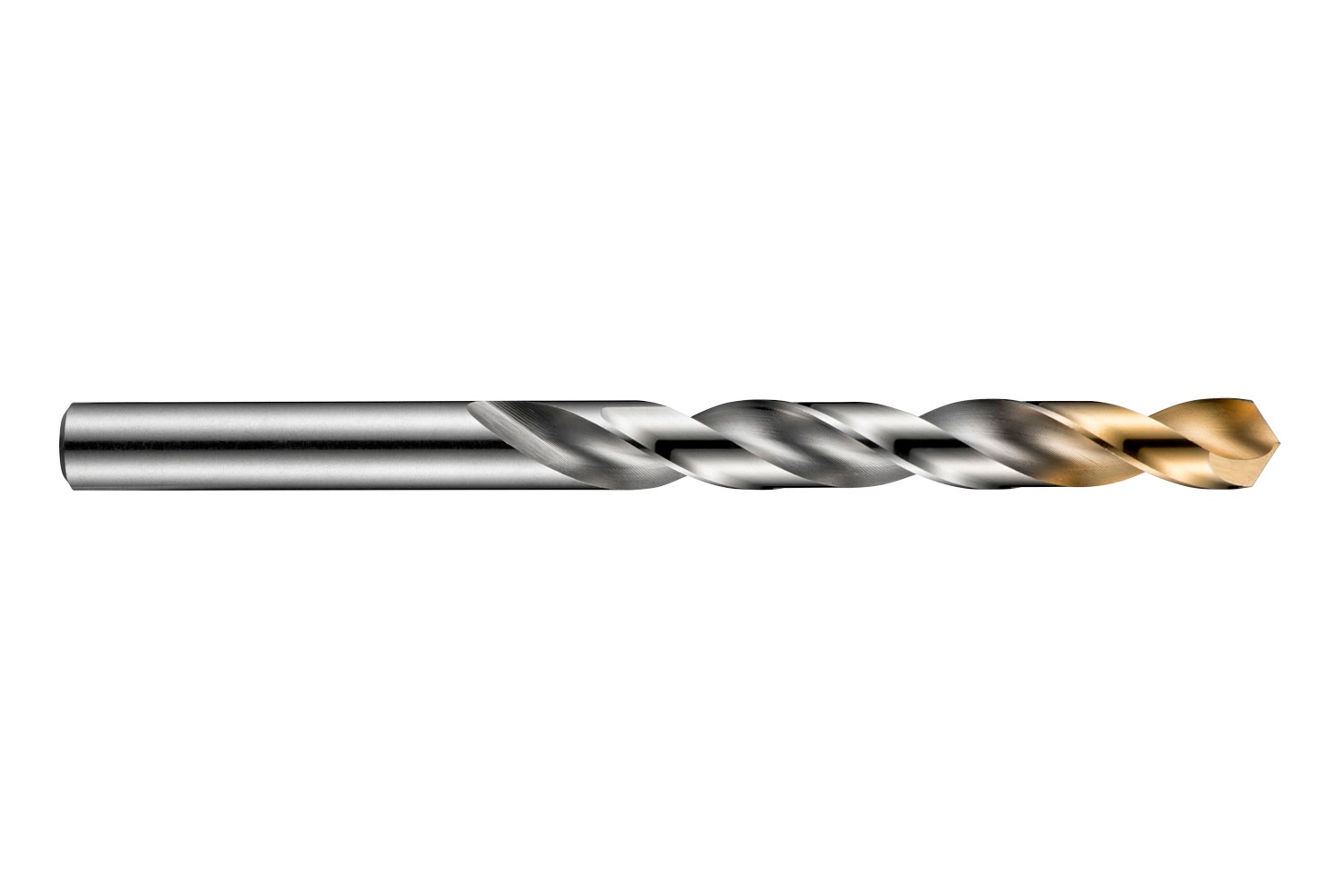

Jobber length drill with straight shank, diameter 0.5156″ (33/64) with an overall length of 151mm and flute length of 101mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0622 kg
Dimensions Length 15.1cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760385333
Product number (SAP): 86008042
Ordering code ANSI: A00233/64
Gross weight – grams: 113.6
Cutting diameter – fractional inch (DC): 33/64
Cutting diameter – millimeter (DC): 13.1 mm
Cutting diameter – inch (DC): 0.5156 inch
Length chip flute – millimeter (LCF): 101 mm
Overall length – millimeter (OAL): 151 mm
Connection diameter – millimeter (DCON MS): 13.1 mm
Length chip flute – inch (LCF): 3.9764 inch
ISO: A00233/64

Brand

DORMER
