DORMER A0025/32 Jobber Drills

Product Code: A0025/32

$6.17$5.61 Ex. GST

Product Code: A0025/32 SKU A0025/32 Categories , ,
DORMER A0025/32 Jobber Drills
DORMER A0025/32 Jobber Drills - Image 2
DORMER A0025/32 Jobber Drills - Image 3
DORMER A0025/32 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

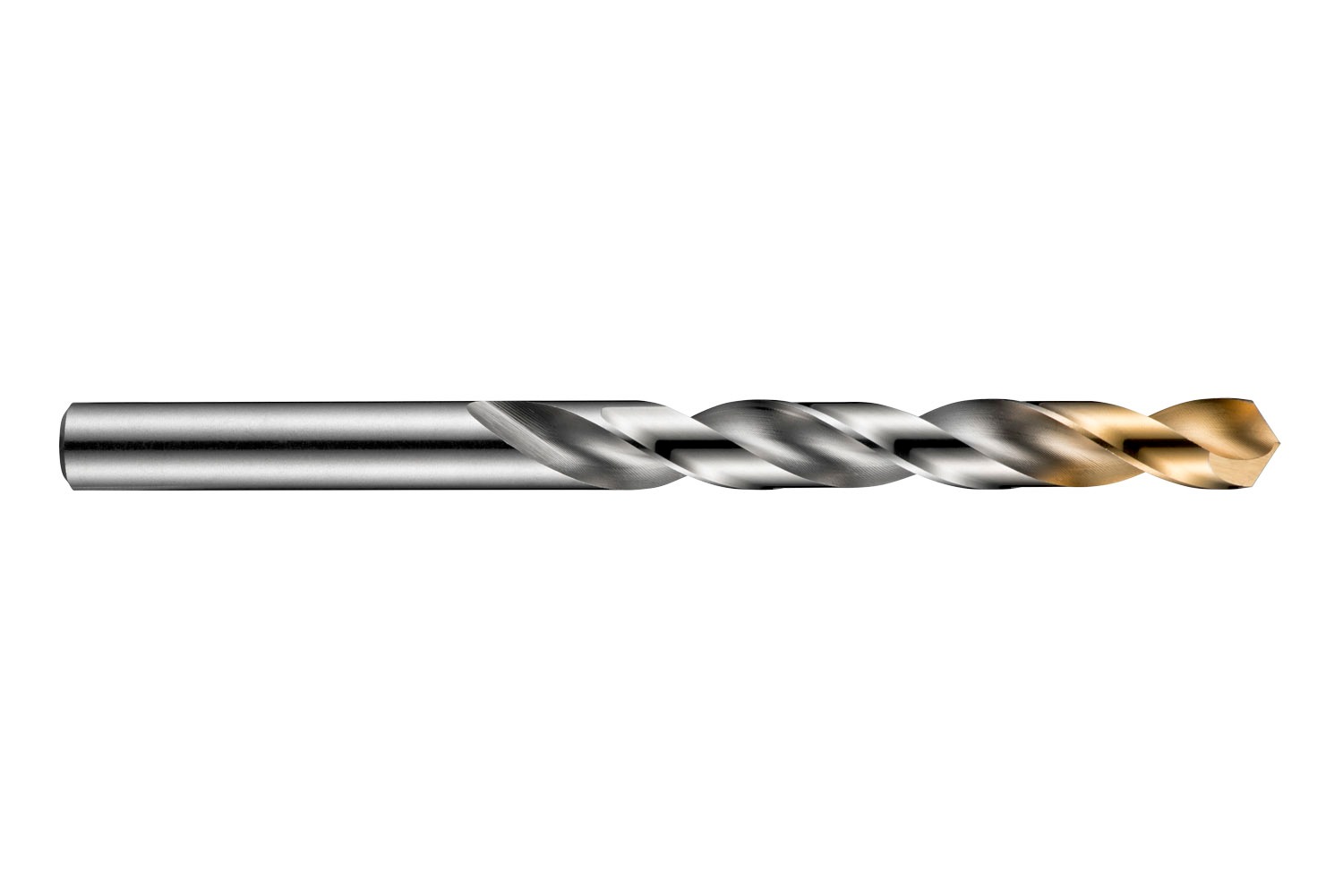

Jobber length drill with straight shank, diameter 0.1563″ (5/32) with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0060 kg
Dimensions Length 7.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760350690
Product number (SAP): 86008067
Ordering code ANSI: A0025/32
Gross weight – grams: 6.12

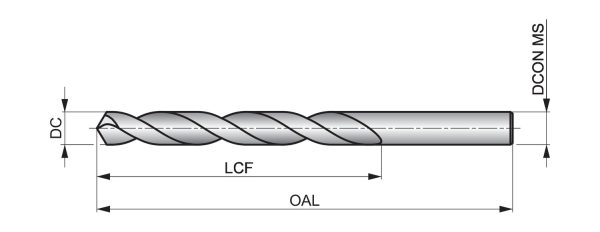

Cutting diameter – fractional inch (DC): 5/32
Cutting diameter – millimeter (DC): 3.97 mm
Cutting diameter – inch (DC): 0.1563 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 3.97 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: A0025/32

Brand

DORMER
