DORMER A0025/64 Jobber Drills

Product Code: A0025/64

$5.38$4.89 Ex. GST

Product Code: A0025/64 SKU A0025/64 Categories , ,
DORMER A0025/64 Jobber Drills
DORMER A0025/64 Jobber Drills - Image 2
DORMER A0025/64 Jobber Drills - Image 3
DORMER A0025/64 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.0781″ (5/64) with an overall length of 49mm and flute length of 24mm according to DIN 338 standard with 118° conical point, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0052 kg
Dimensions Length 4.9cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760376935
Product number (SAP): 86008068
Ordering code ANSI: A0025/64
Gross weight – grams: 1.3

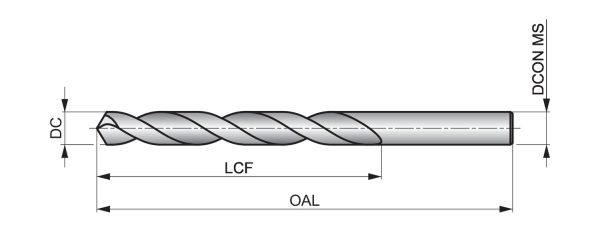

Cutting diameter – fractional inch (DC): 5/64
Cutting diameter – millimeter (DC): 1.98 mm
Cutting diameter – inch (DC): 0.0781 inch
Length chip flute – millimeter (LCF): 24 mm
Overall length – millimeter (OAL): 49 mm
Connection diameter – millimeter (DCON MS): 1.98 mm
Length chip flute – inch (LCF): 0.9449 inch
ISO: A0025/64

Brand

DORMER
