DORMER A0029/16 Jobber Drills

Product Code: A0029/16

$78.18$71.07 Ex. GST

Product Code: A0029/16 SKU A0029/16 Categories , ,

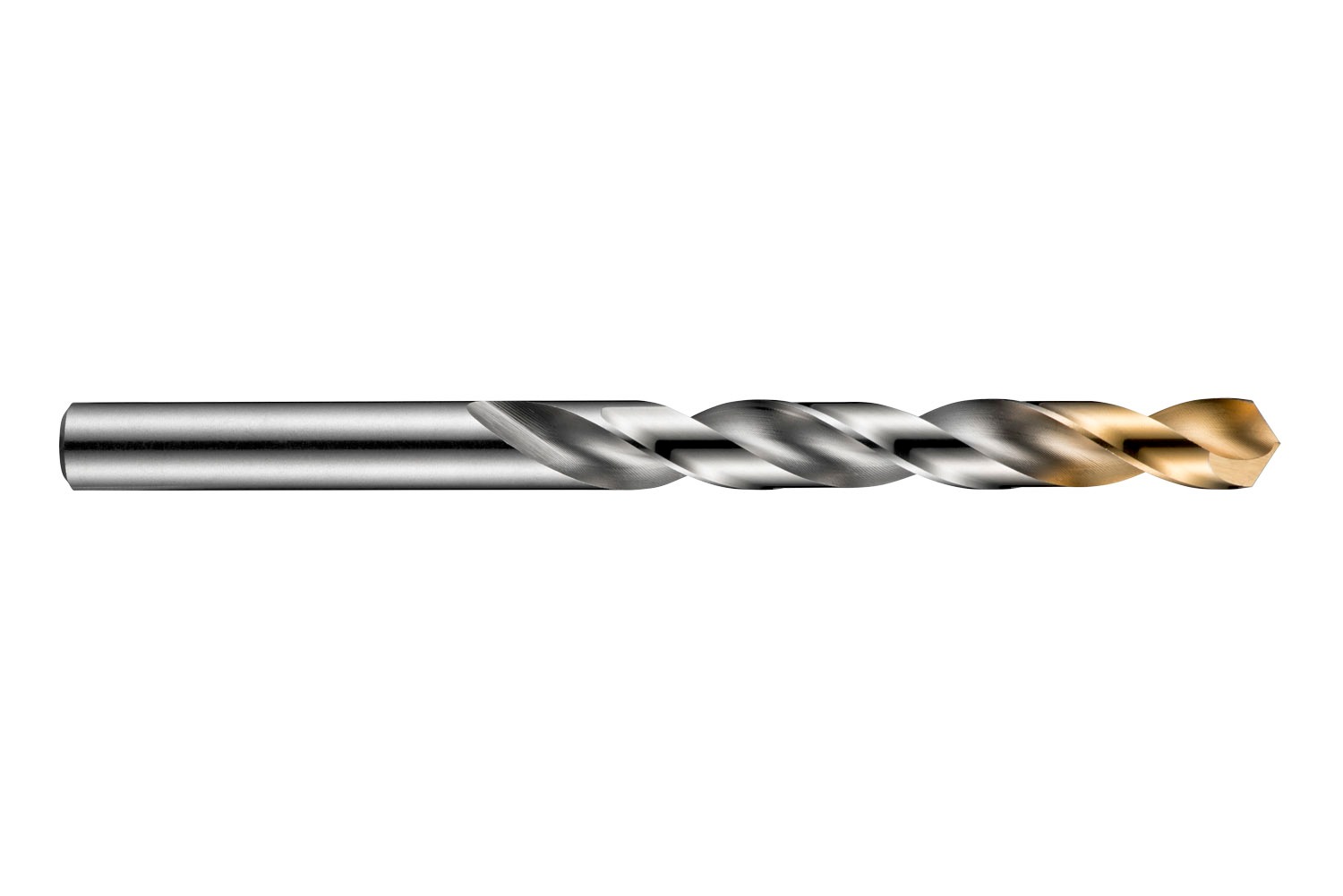

DORMER A0029/16 Jobber Drills
DORMER A0029/16 Jobber Drills - Image 2
DORMER A0029/16 Jobber Drills - Image 3
DORMER A0029/16 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.5625″ (9/16) with an overall length of 169mm and flute length of 114mm according to DIN 338 standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0759 kg
Dimensions Length 16.9cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760385388
Product number (SAP): 86008113
Ordering code ANSI: A0029/16
Gross weight – grams: 154

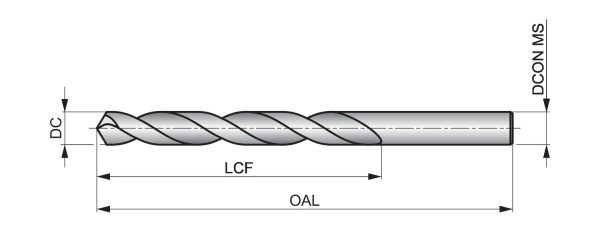

Cutting diameter – fractional inch (DC): 9/16
Cutting diameter – millimeter (DC): 14.29 mm
Cutting diameter – inch (DC): 0.5625 inch
Length chip flute – millimeter (LCF): 114 mm
Overall length – millimeter (OAL): 169 mm
Connection diameter – millimeter (DCON MS): 14.29 mm
Length chip flute – inch (LCF): 4.4882 inch
ISO: A0029/16

Brand

DORMER
