DORMER A01211/64 Jobber Drills

Product Code: A01211/64

$5.50$5.00 Ex. GST

Product Code: A01211/64 SKU A01211/64 Categories ,
DORMER A01211/64 Jobber Drills
DORMER A01211/64 Jobber Drills - Image 2
DORMER A01211/64 Jobber Drills - Image 3
DORMER A01211/64 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

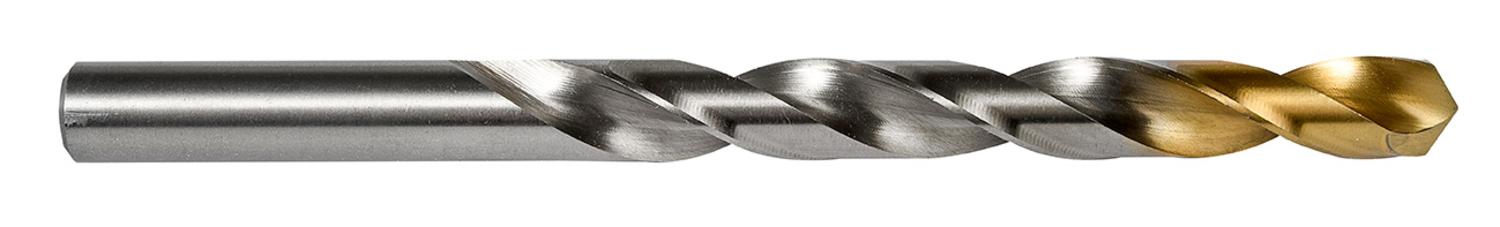

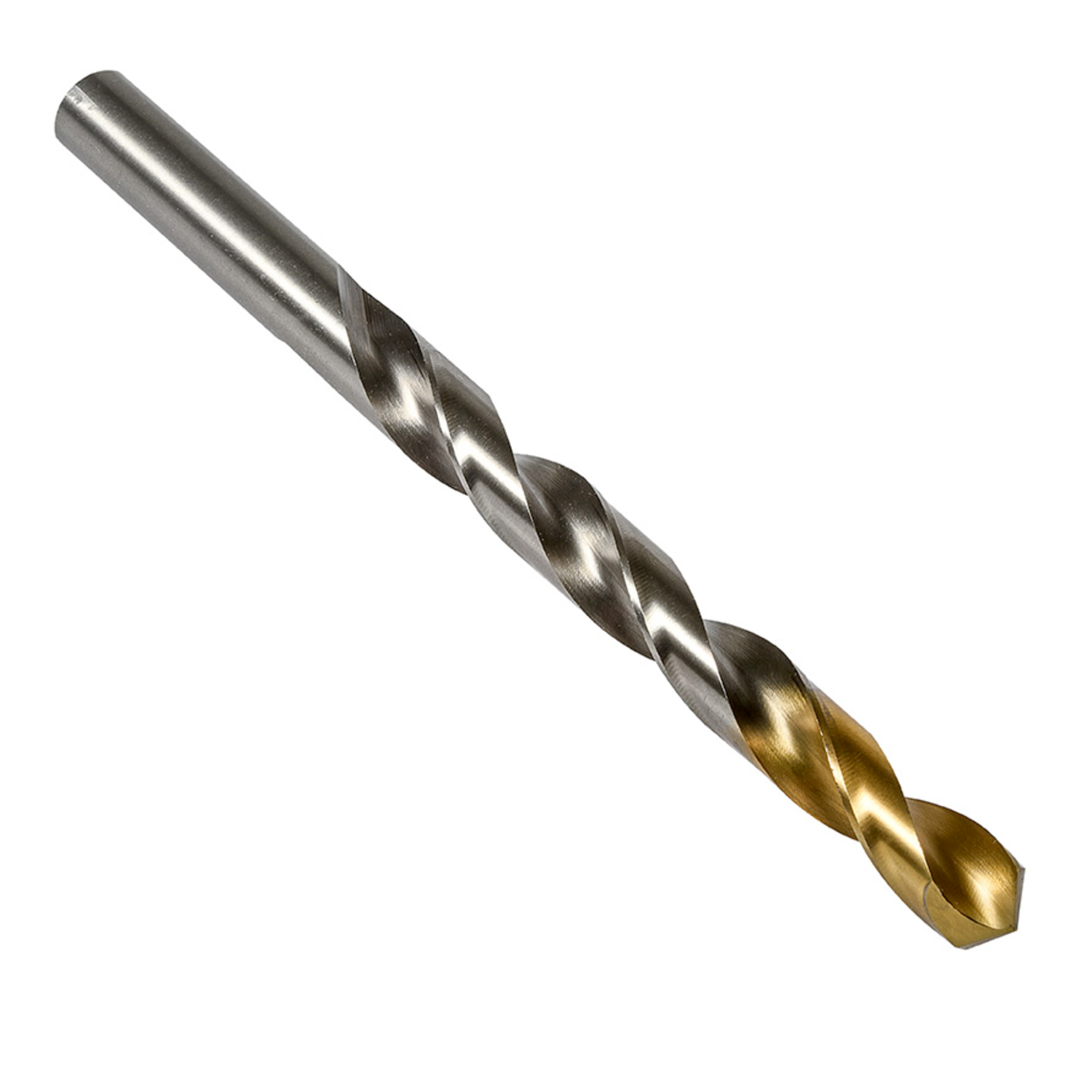

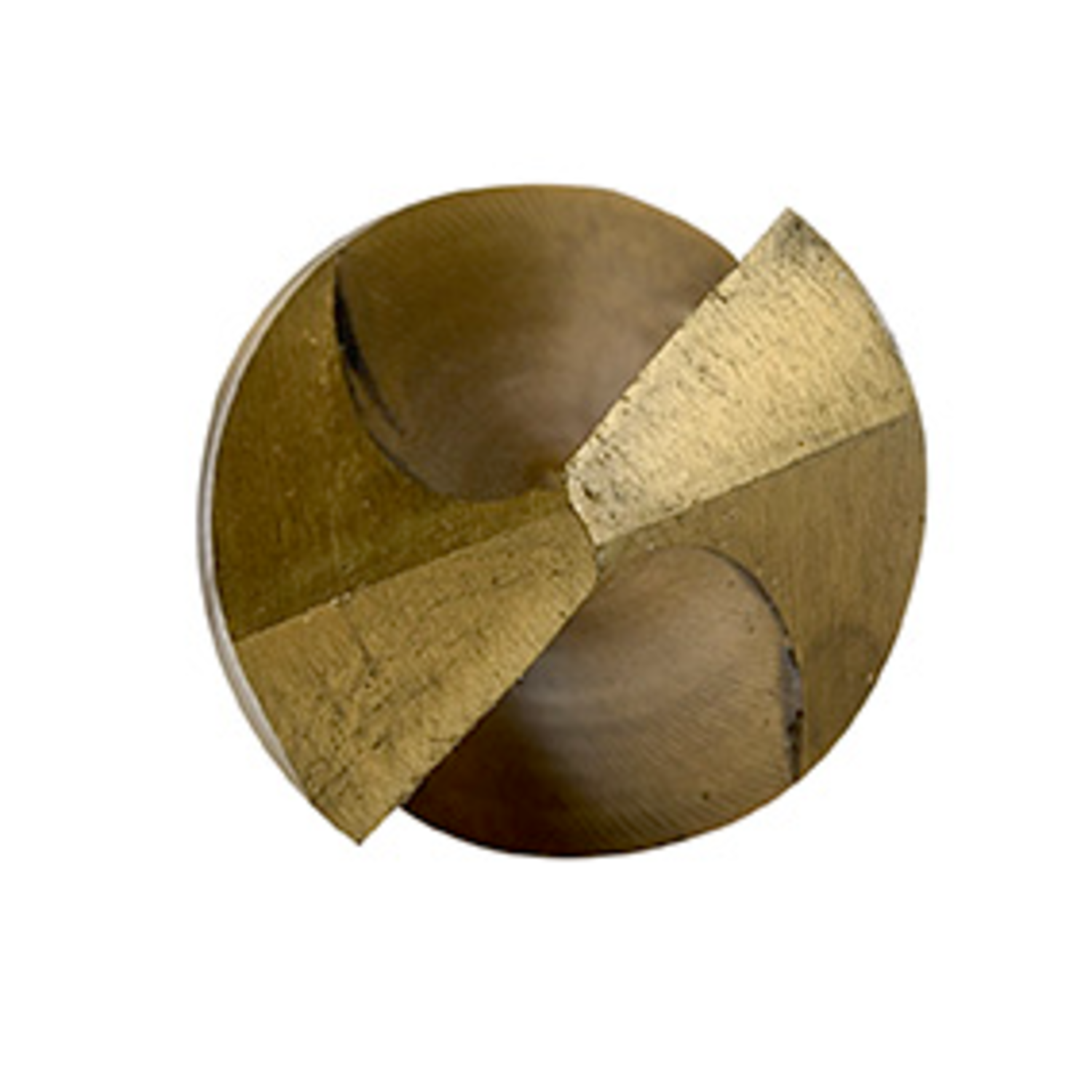

Jobber length drill with straight shank, diameter 0.1719″ (11/64) with an overall length of 3.1/4″ and flute length of 2.1/8″ according to ANSI standard with 118° modified split point, HSS with TiN-tip coating for 4xD drilling without pecking in steel

Additional information

Weight 0.0070 kg
Dimensions Length 8.25cm x Width cm x Depth cm
barcode

7320760571910
Additional Information

Description: Value
EAN number: 7320760571910
Ordering code ANSI: A01211/64
Gross weight – grams: 7
Length chip flute – inch (LCF): 2.125 inch
Cutting diameter – fractional inch (DC): 11/64
Cutting diameter – millimeter (DC): 4.37 mm
Length chip flute – fractional inch (LCF): 2.1/8
Overall length – fractional inch (OAL): 3.1/4
Overall length – millimeter (OAL): 82.55 mm
ISO: A01211/64
