DORMER A022.5 A022 Series HSS Stub Drill

Product Code: A022.5

$15.52$14.11 Ex. GST

Product Code: A022.5 SKU A022.5 Categories , ,

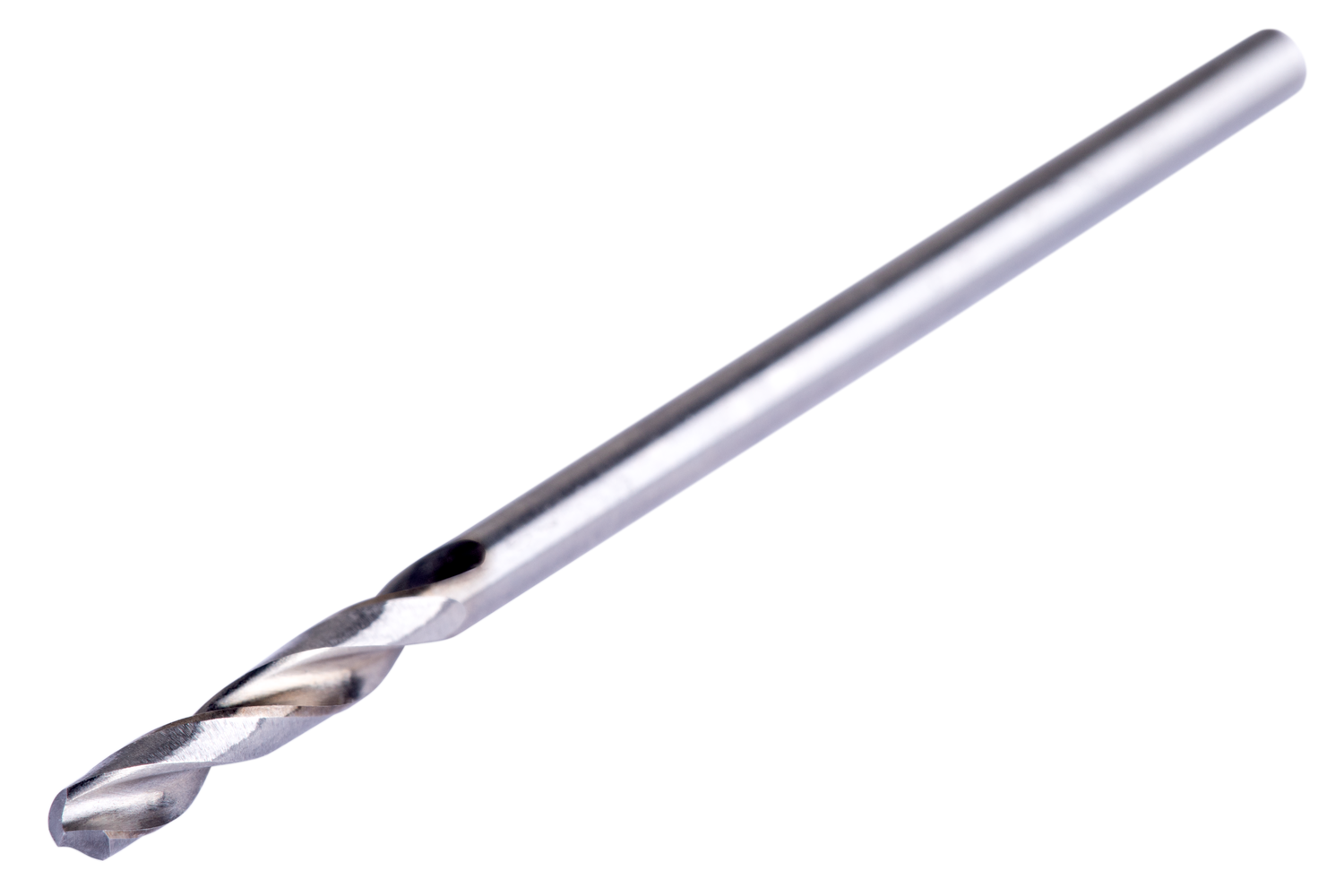

DORMER A022.5 A022 Series HSS Stub Drill

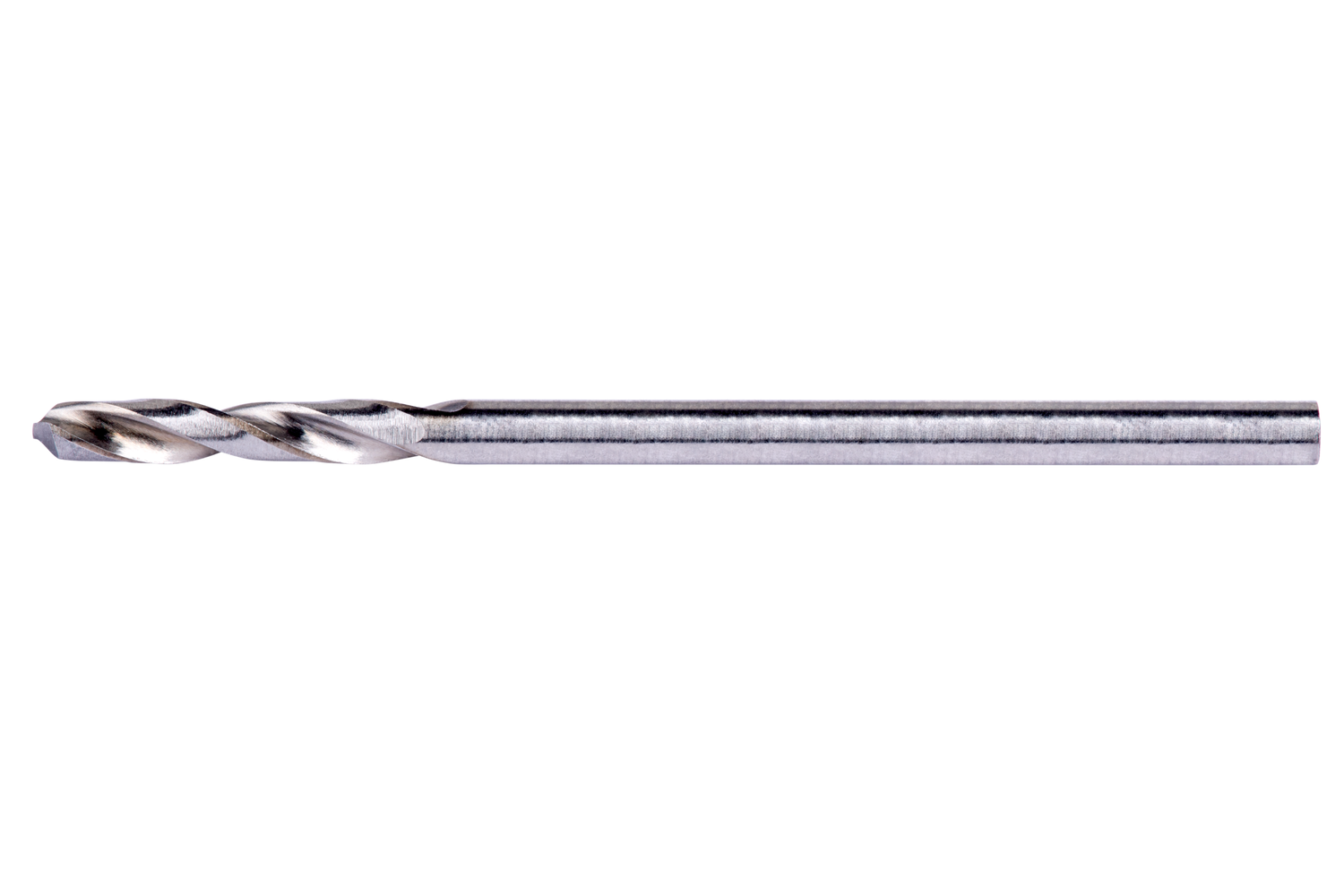

DORMER A022.5 A022 Series HSS Stub Drill - Image 2

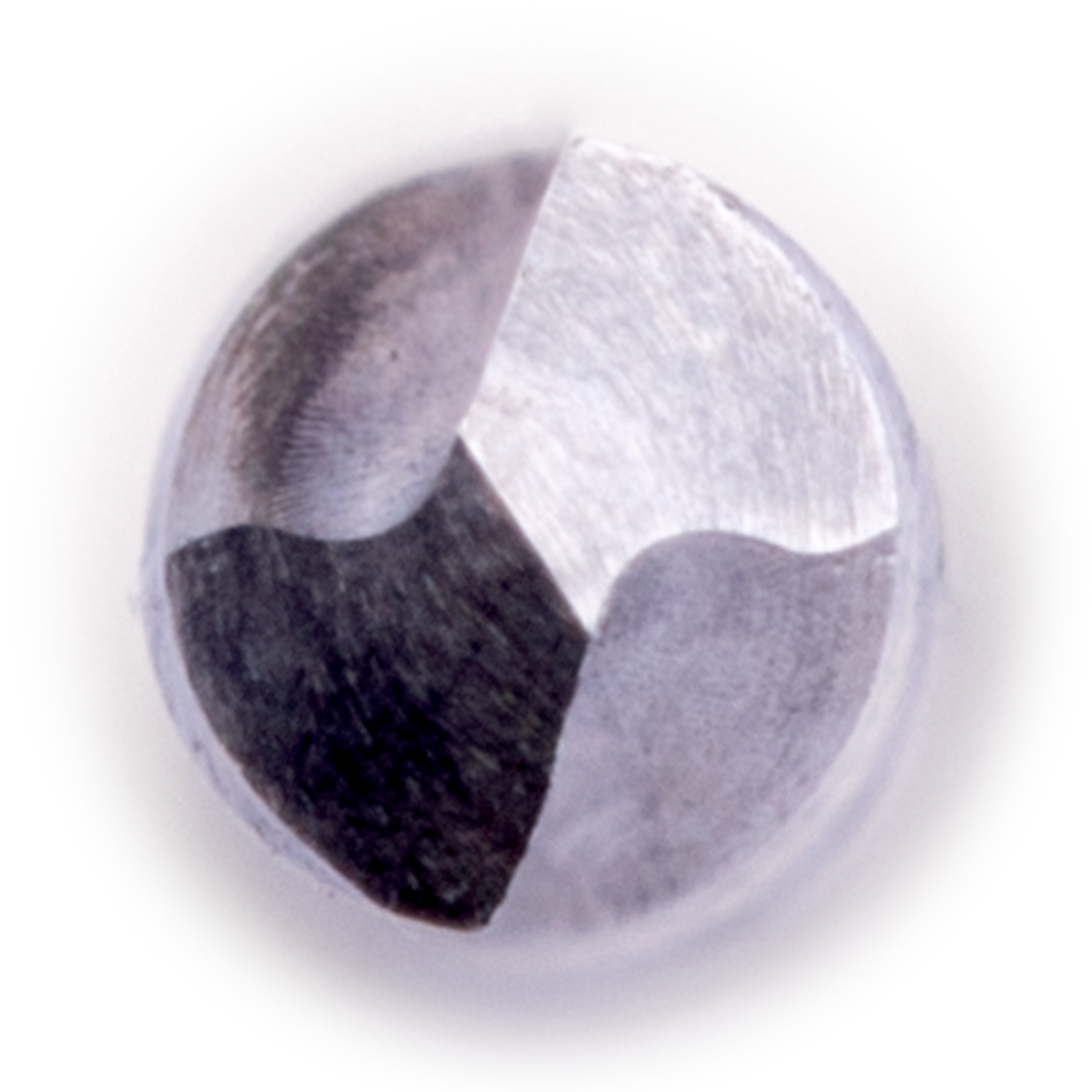

DORMER A022.5 A022 Series HSS Stub Drill - Image 3
DORMER A022.5 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 0.5mm with an overall length of 20mm and flute length of 3mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0151 kg
Dimensions Length 2cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760600382
Product number (SAP): 86008156
Ordering code ANSI: A022.5
Gross weight – grams: 0.19
Cutting diameter – millimeter (DC): 0.5 mm
Cutting diameter – inch (DC): 0.0197 inch
Length chip flute – millimeter (LCF): 3 mm
Overall length – millimeter (OAL): 20 mm
Connection diameter – millimeter (DCON MS): 0.5 mm
Length chip flute – inch (LCF): 0.1181 inch
ISO: A022.5

Brand

DORMER
