DORMER A022.7 A022 Series HSS Stub Drill

Product Code: A022.7

$14.73$13.39 Ex. GST

Product Code: A022.7 SKU A022.7 Categories , ,

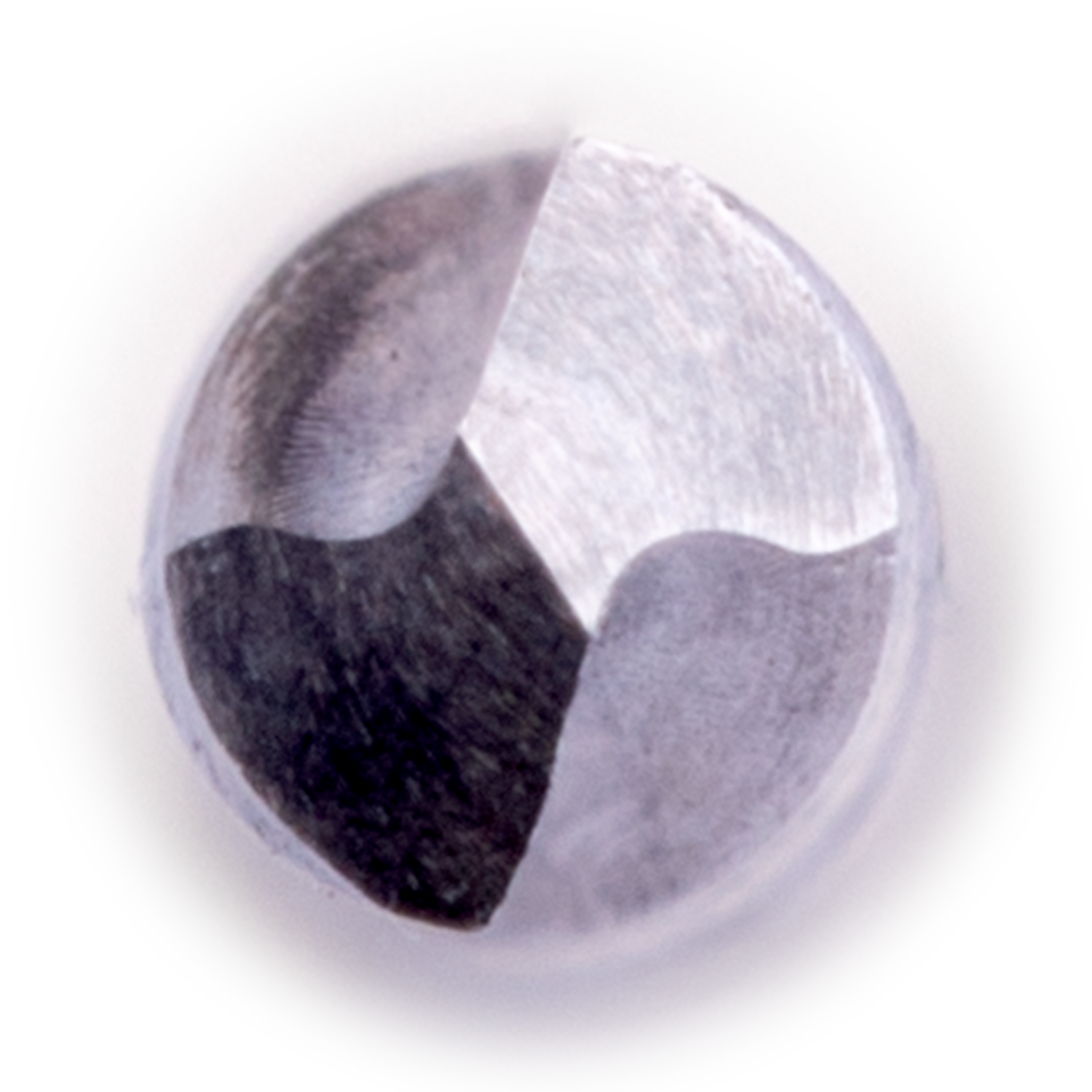

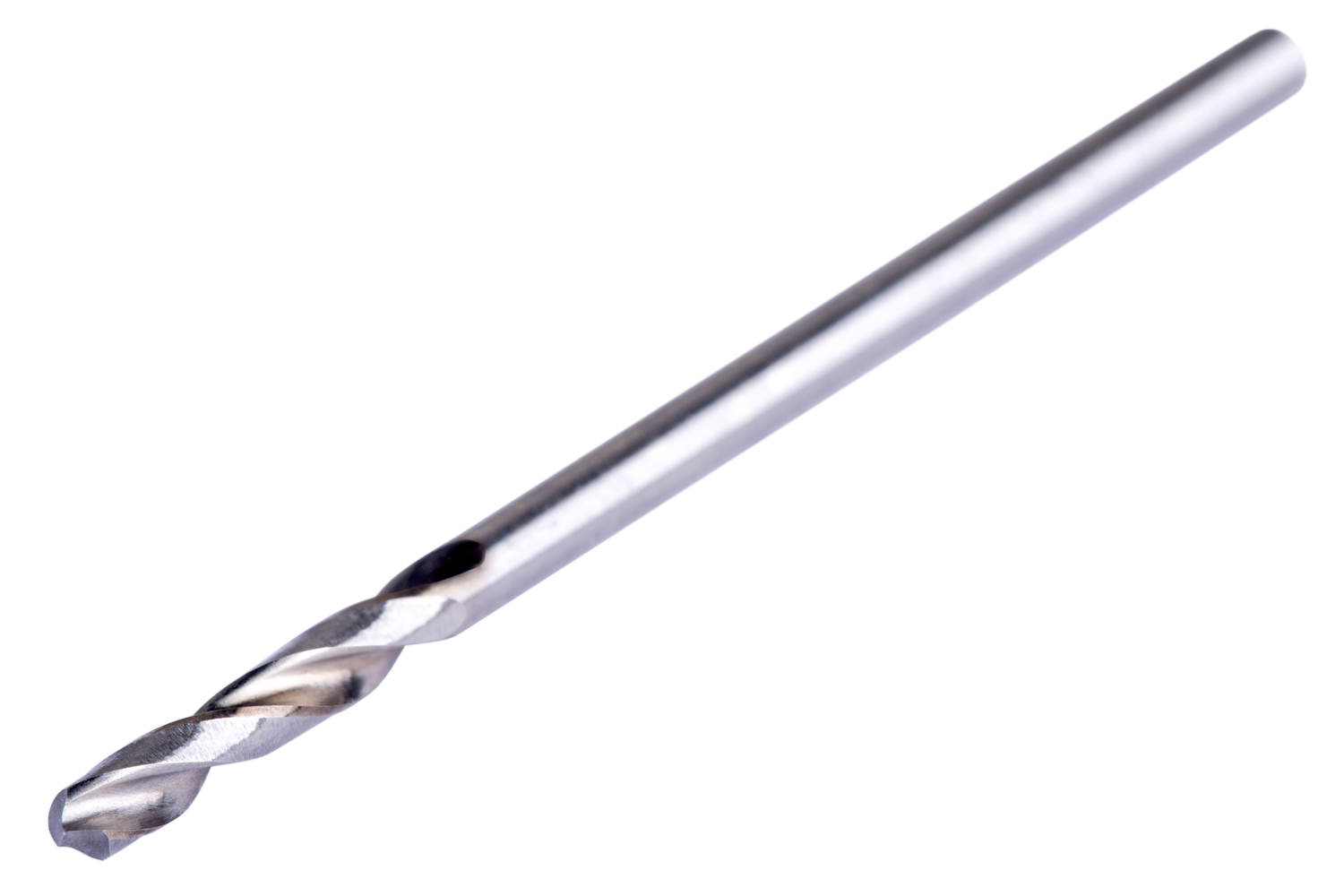

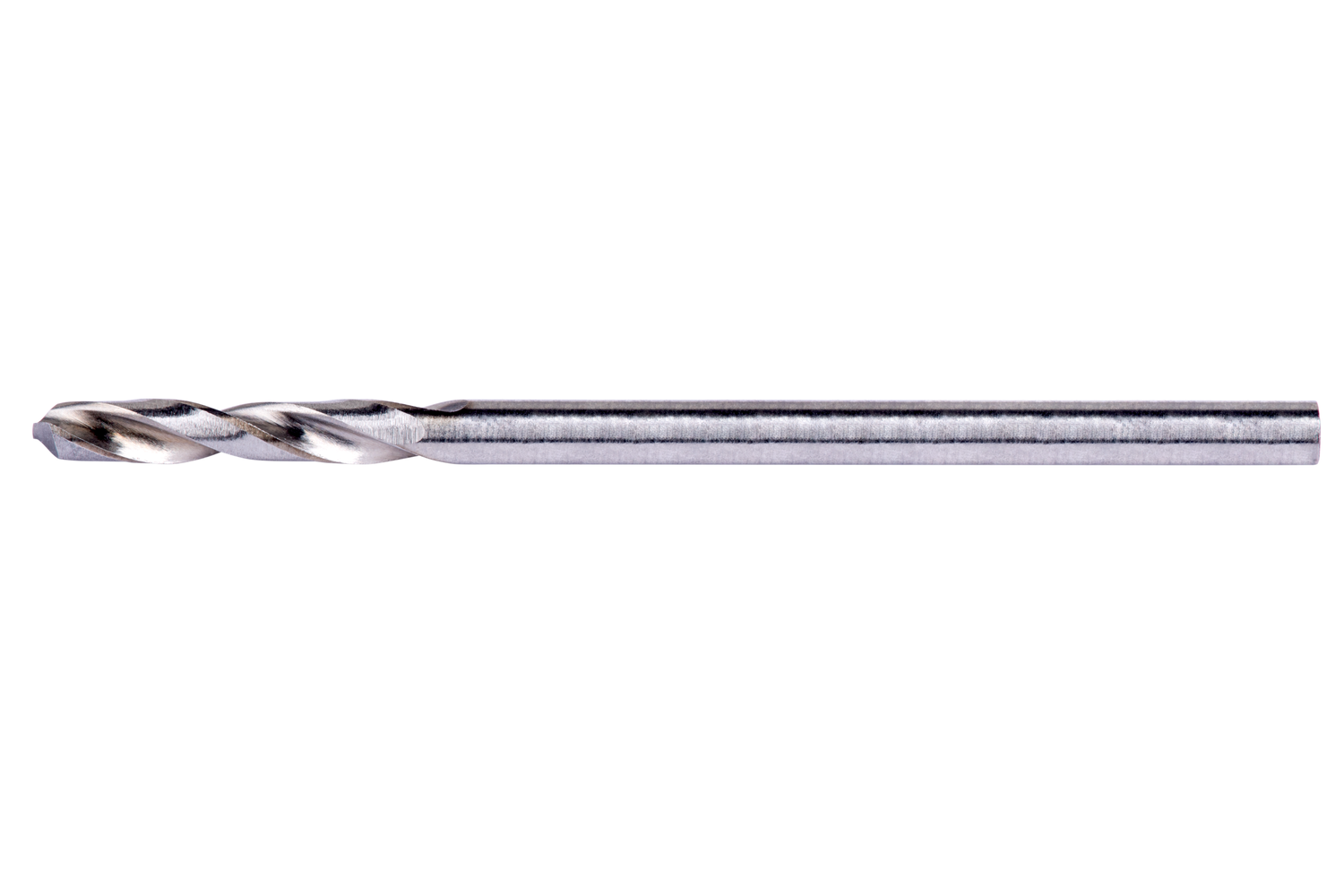

DORMER A022.7 A022 Series HSS Stub Drill
DORMER A022.7 A022 Series HSS Stub Drill - Image 2
DORMER A022.7 A022 Series HSS Stub Drill - Image 3
DORMER A022.7 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 0.7mm with an overall length of 23mm and flute length of 4.5mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0143 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760600405
Product number (SAP): 86008158
Ordering code ANSI: A022.7
Gross weight – grams: 0.21
Cutting diameter – millimeter (DC): 0.7 mm
Cutting diameter – inch (DC): 0.0276 inch
Length chip flute – millimeter (LCF): 4.5 mm
Overall length – millimeter (OAL): 23 mm
Connection diameter – millimeter (DCON MS): 0.7 mm
Length chip flute – inch (LCF): 0.1772 inch
ISO: A022.7
