DORMER A0221.3 A022 Series HSS Stub Drill

Product Code: A0221.3

$8.33$7.57 Ex. GST

Product Code: A0221.3 SKU A0221.3 Categories , ,
DORMER A0221.3 A022 Series HSS Stub Drill
DORMER A0221.3 A022 Series HSS Stub Drill - Image 2
DORMER A0221.3 A022 Series HSS Stub Drill - Image 3
DORMER A0221.3 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

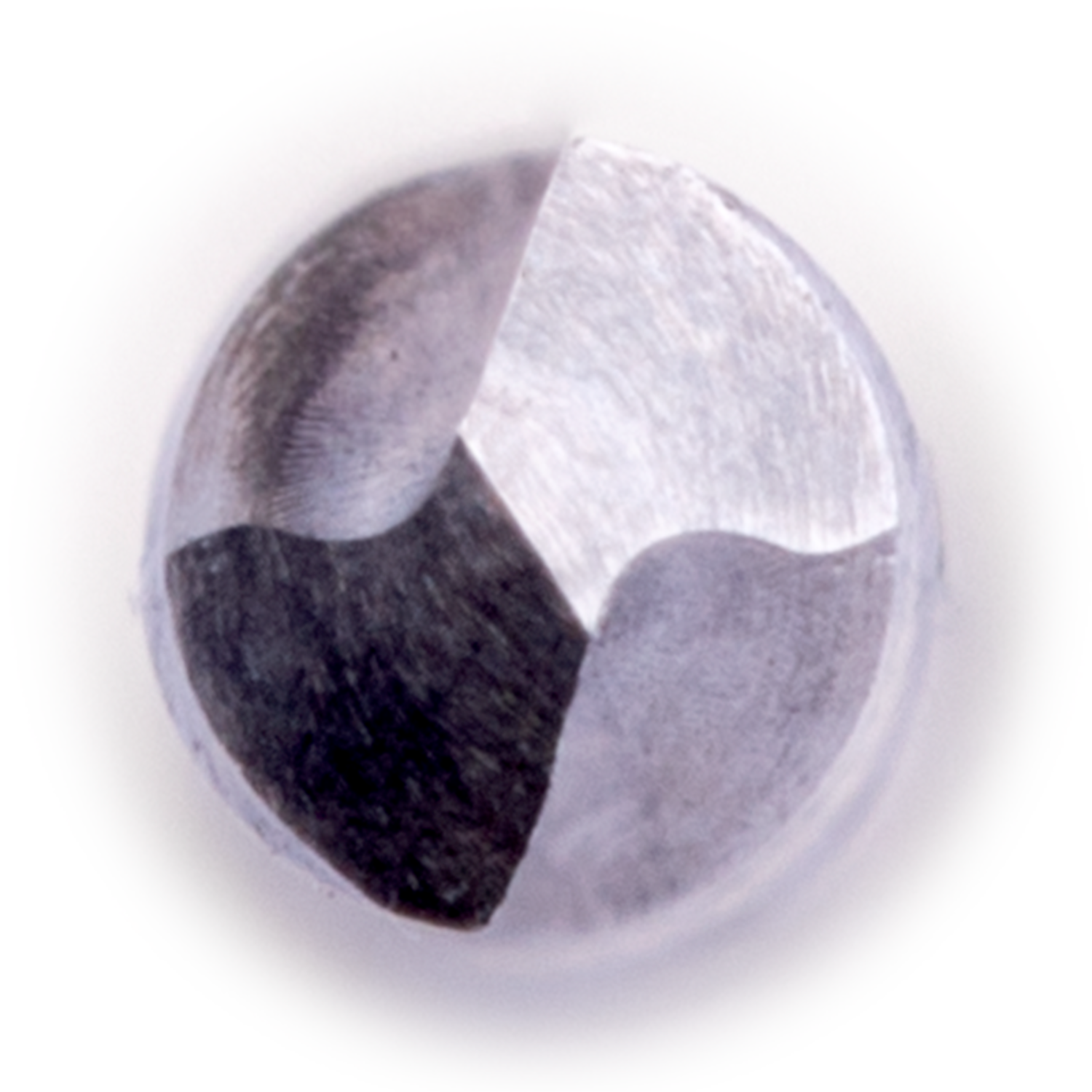

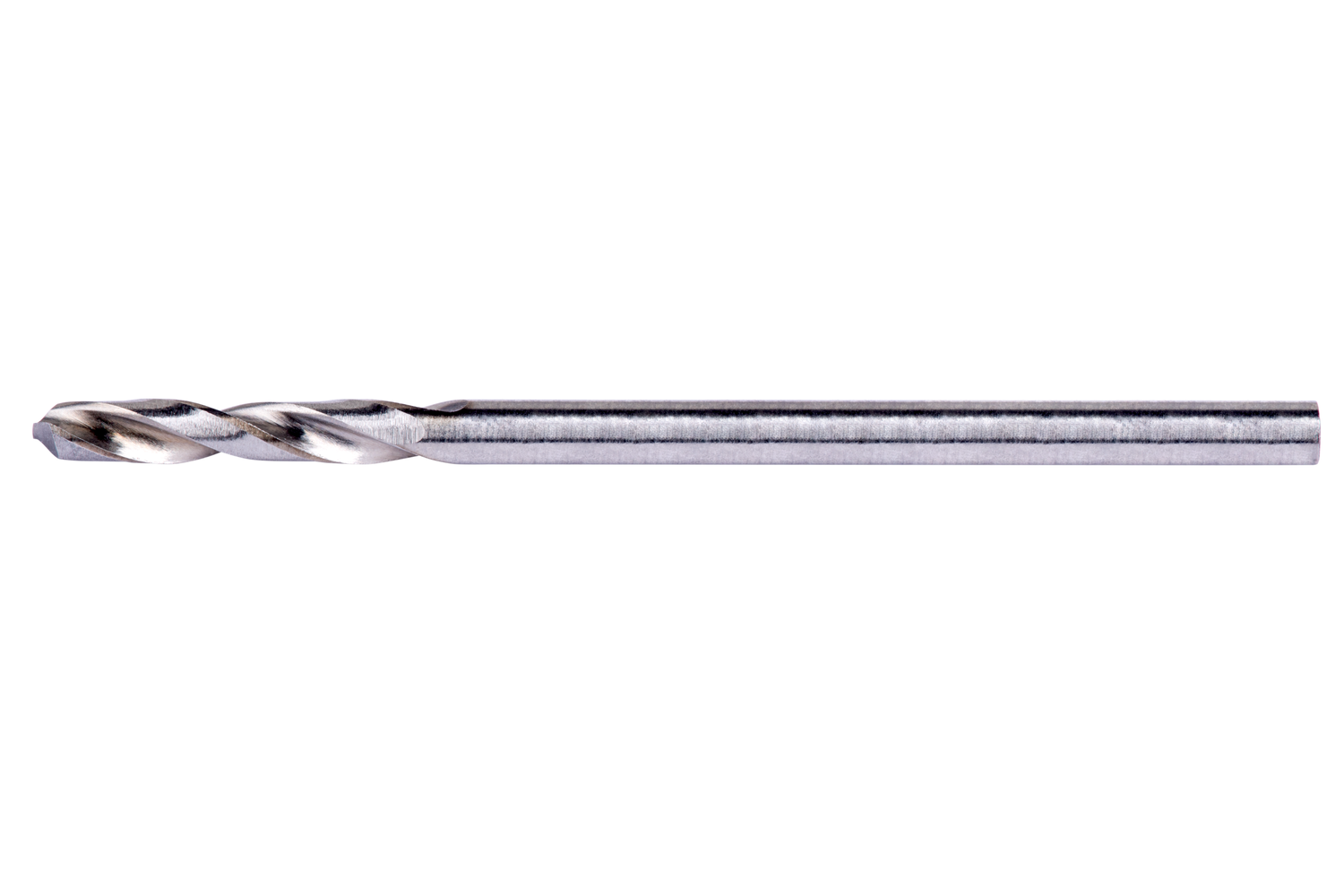

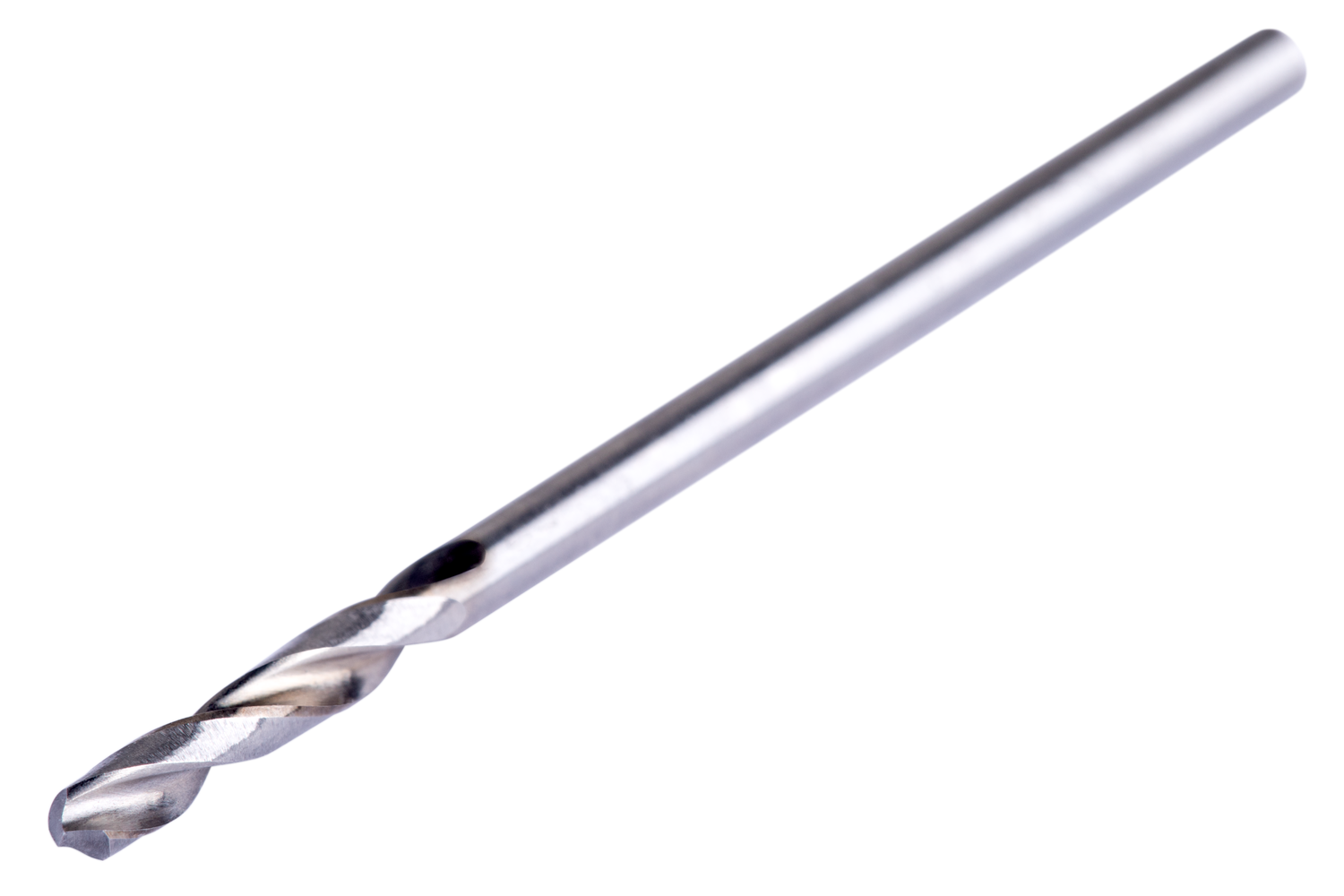

Stub length drill with straight shank, diameter 1.3mm with an overall length of 30mm and flute length of 8mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0081 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760600467
Product number (SAP): 86008164
Ordering code ANSI: A0221.3
Gross weight – grams: 0.43
Cutting diameter – millimeter (DC): 1.3 mm
Cutting diameter – inch (DC): 0.0512 inch
Length chip flute – millimeter (LCF): 8 mm
Overall length – millimeter (OAL): 30 mm
Connection diameter – millimeter (DCON MS): 1.3 mm
Length chip flute – inch (LCF): 0.315 inch
ISO: A0221.3

Brand

DORMER
