DORMER A0221.4 A022 Series HSS Stub Drill

Product Code: A0221.4

$8.78$7.98 Ex. GST

Product Code: A0221.4 SKU A0221.4 Categories , ,

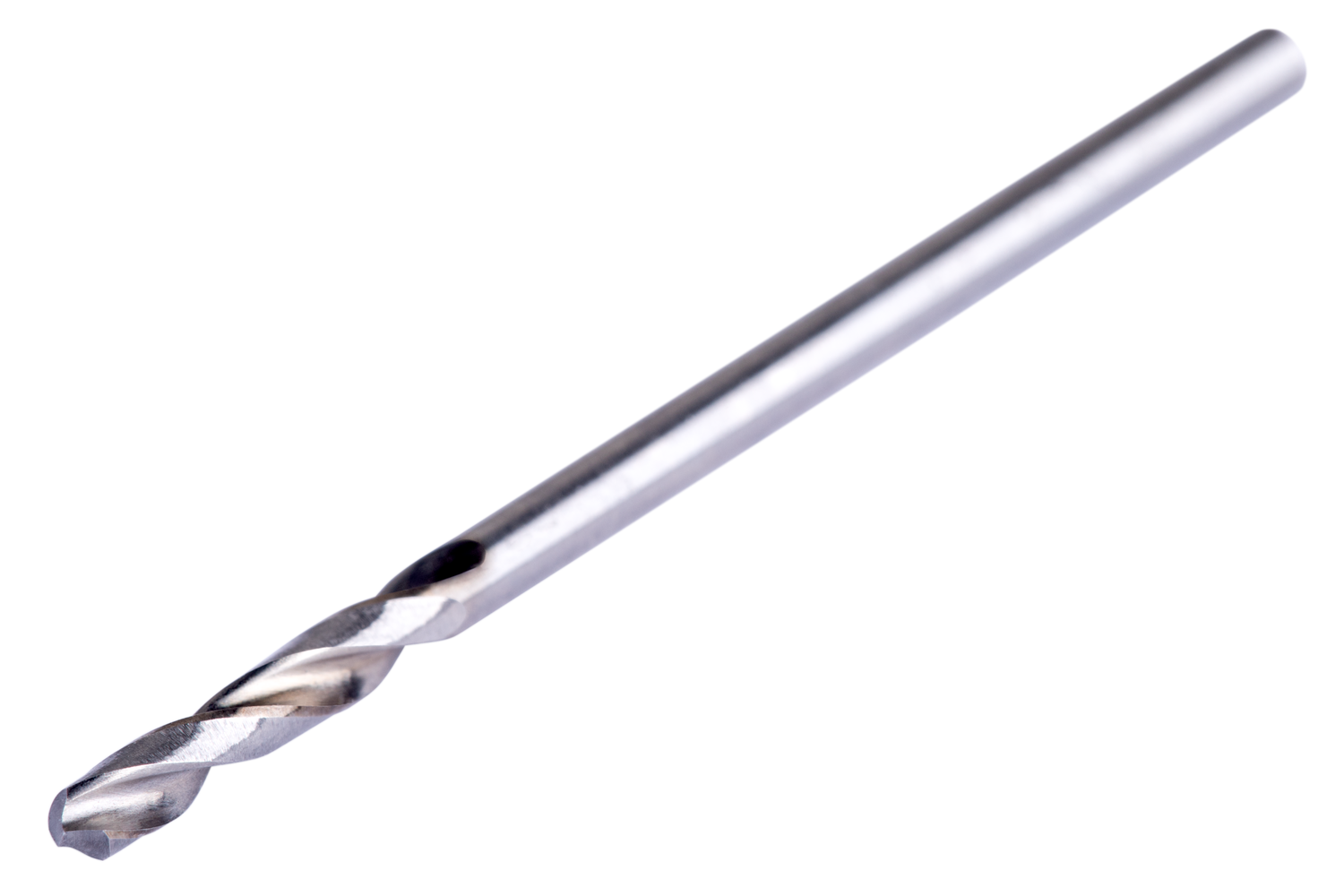

DORMER A0221.4 A022 Series HSS Stub Drill

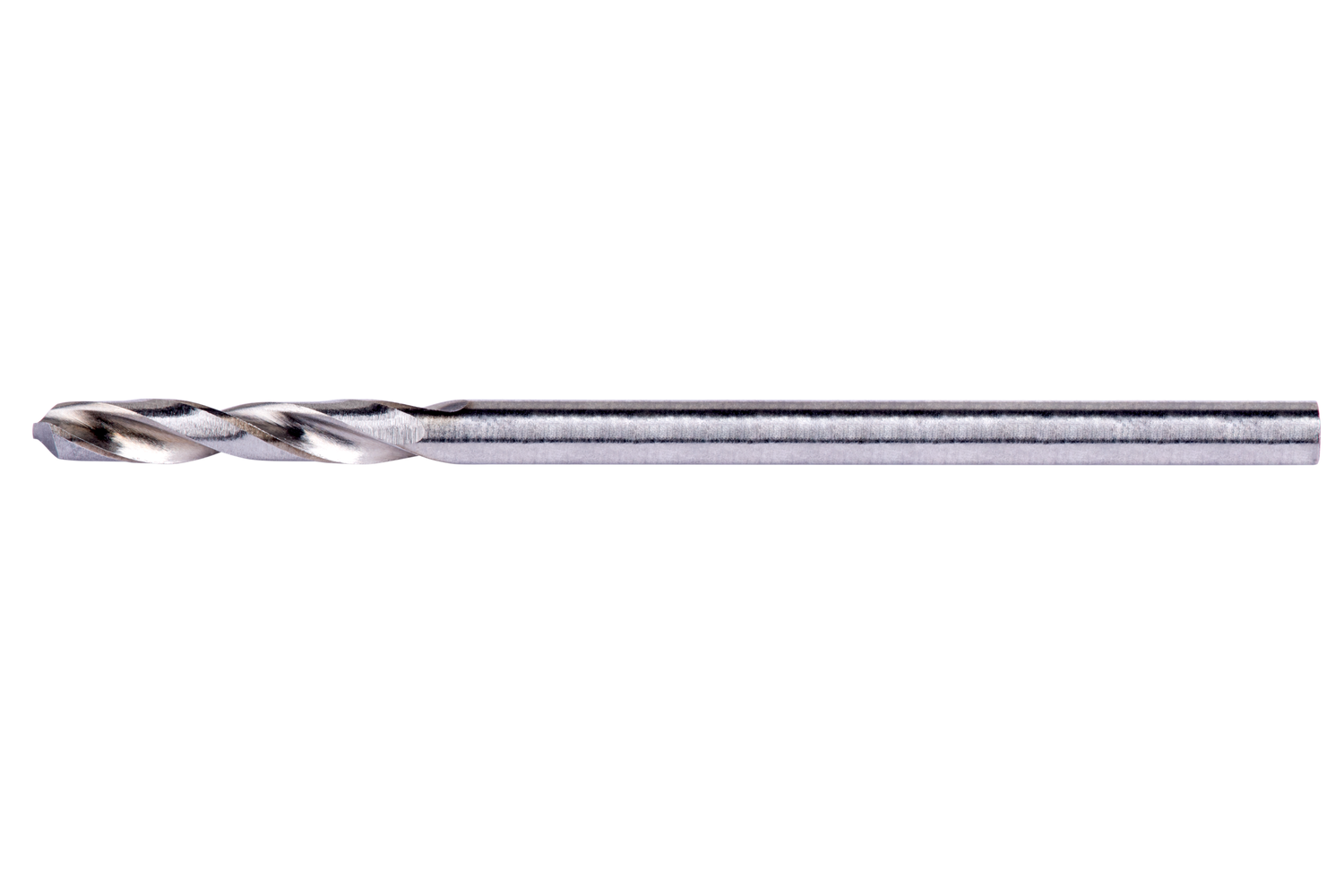

DORMER A0221.4 A022 Series HSS Stub Drill - Image 2

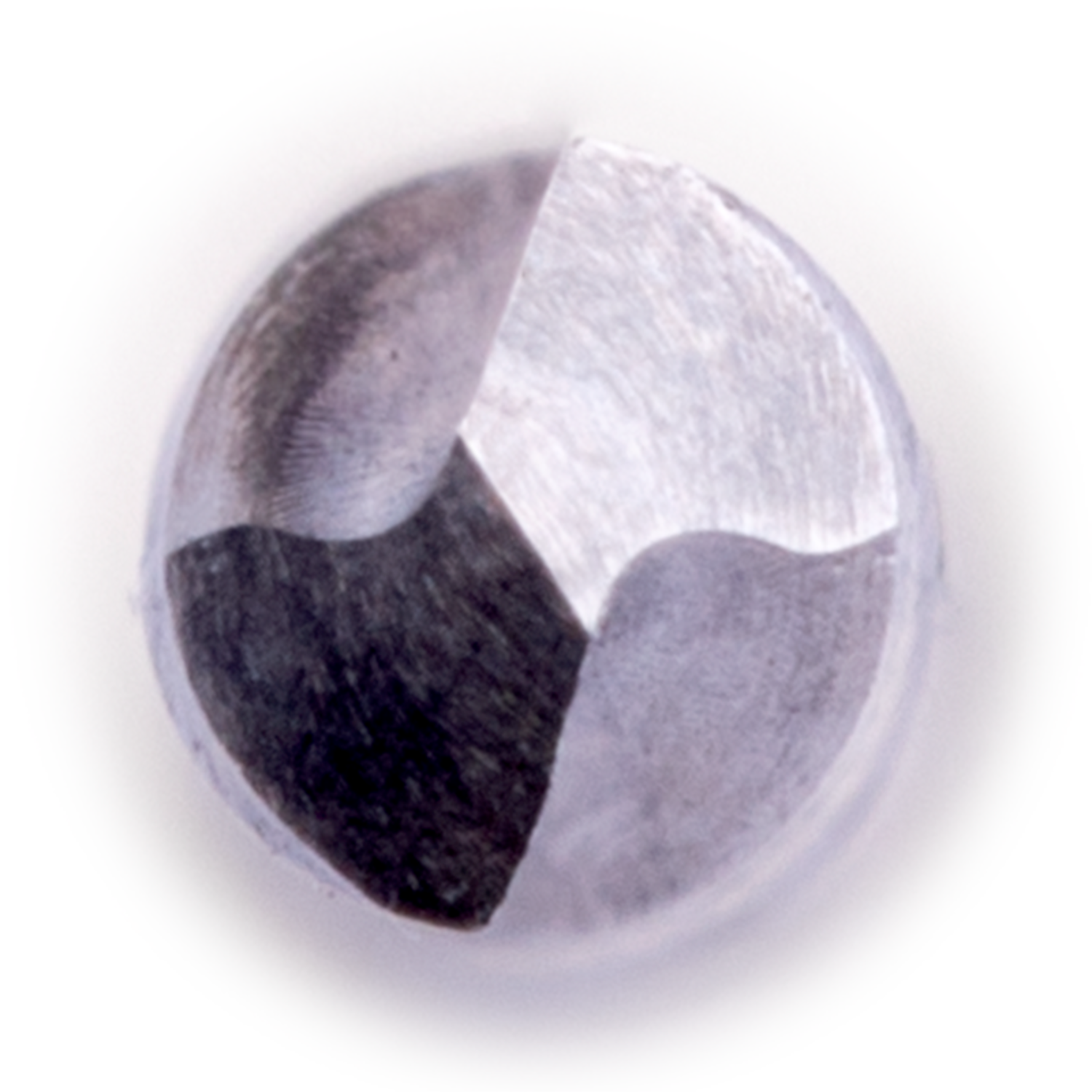

DORMER A0221.4 A022 Series HSS Stub Drill - Image 3
DORMER A0221.4 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 1.4mm with an overall length of 32mm and flute length of 9mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0085 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760600474
Product number (SAP): 86008165
Ordering code ANSI: A0221.4
Gross weight – grams: 0.57
Cutting diameter – millimeter (DC): 1.4 mm
Cutting diameter – inch (DC): 0.0551 inch
Length chip flute – millimeter (LCF): 9 mm
Overall length – millimeter (OAL): 32 mm
Connection diameter – millimeter (DCON MS): 1.4 mm
Length chip flute – inch (LCF): 0.3543 inch
ISO: A0221.4

Brand

DORMER
