DORMER A0221.7 A022 Series HSS Stub Drill

Product Code: A0221.7

$8.04$7.31 Ex. GST

Product Code: A0221.7 SKU A0221.7 Categories , ,

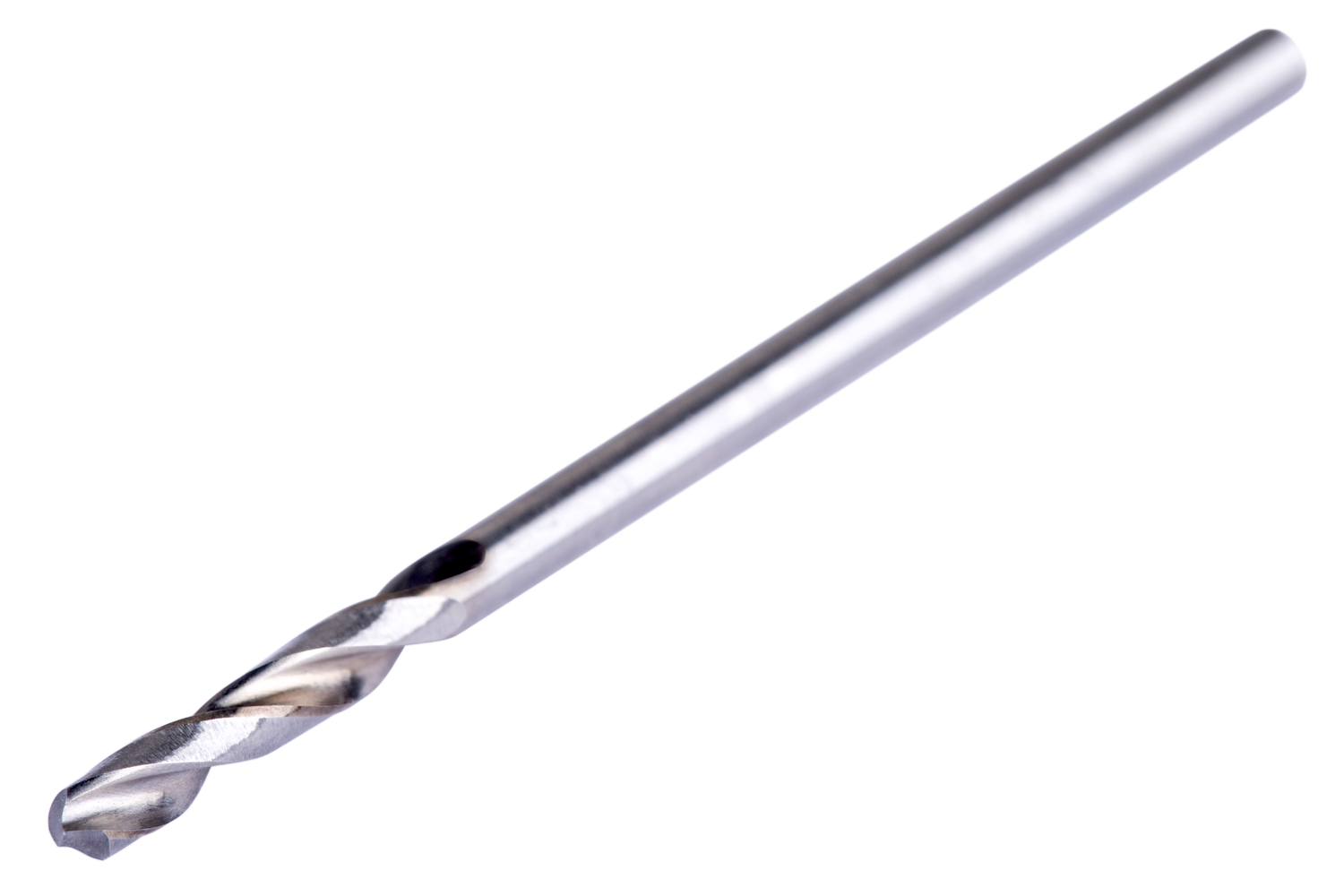

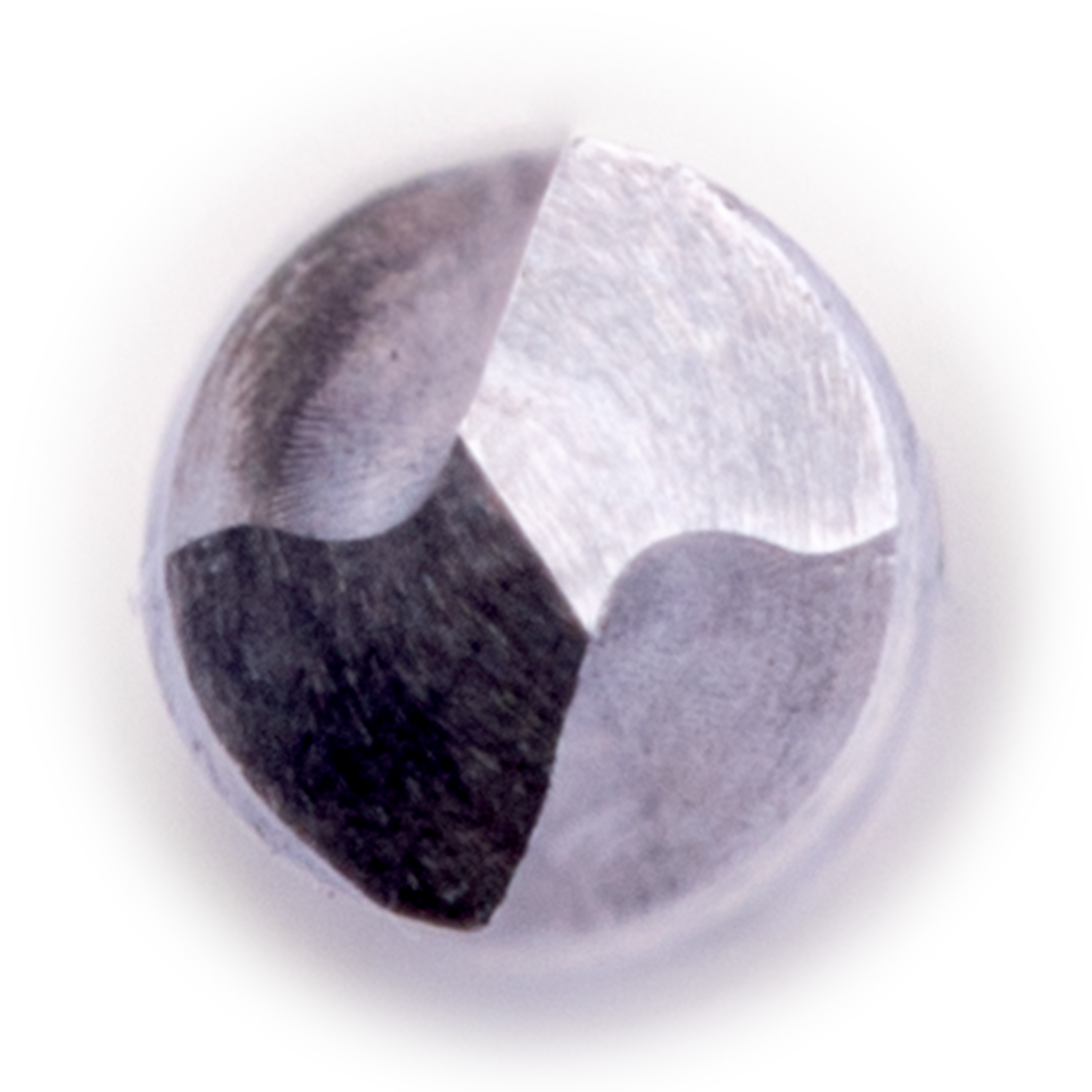

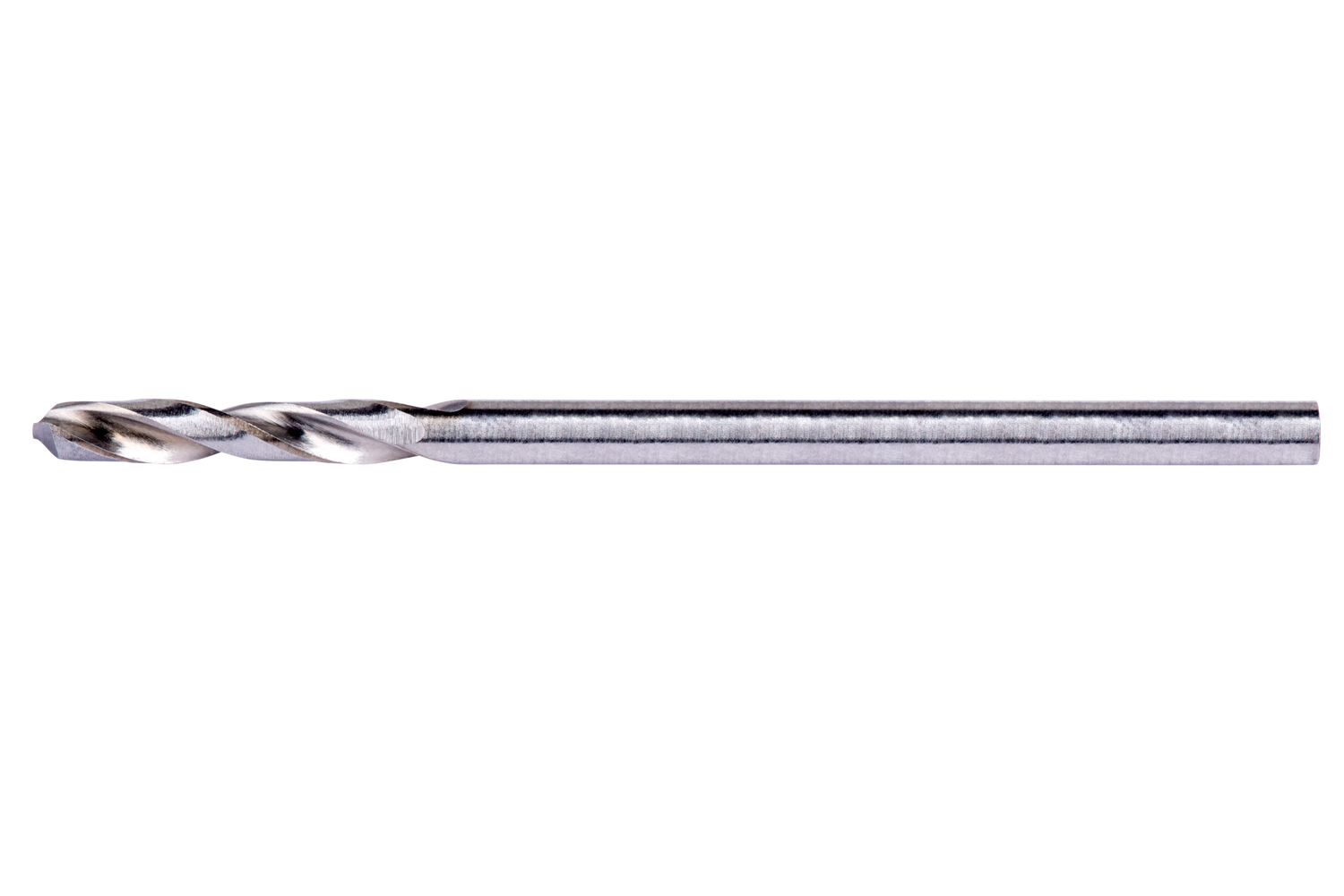

DORMER A0221.7 A022 Series HSS Stub Drill
DORMER A0221.7 A022 Series HSS Stub Drill - Image 2
DORMER A0221.7 A022 Series HSS Stub Drill - Image 3
DORMER A0221.7 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 1.7mm with an overall length of 34mm and flute length of 10mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0078 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760600504
Product number (SAP): 86008168
Ordering code ANSI: A0221.7
Gross weight – grams: 0.73
Cutting diameter – millimeter (DC): 1.7 mm
Cutting diameter – inch (DC): 0.0669 inch
Length chip flute – millimeter (LCF): 10 mm
Overall length – millimeter (OAL): 34 mm
Connection diameter – millimeter (DCON MS): 1.7 mm
Length chip flute – inch (LCF): 0.3937 inch
ISO: A0221.7

Brand

DORMER
