DORMER A02211.0 A022 Series HSS Stub Drill

Product Code: A02211.0

$42.94$39.04 Ex. GST

Product Code: A02211.0 SKU A02211.0 Categories , ,

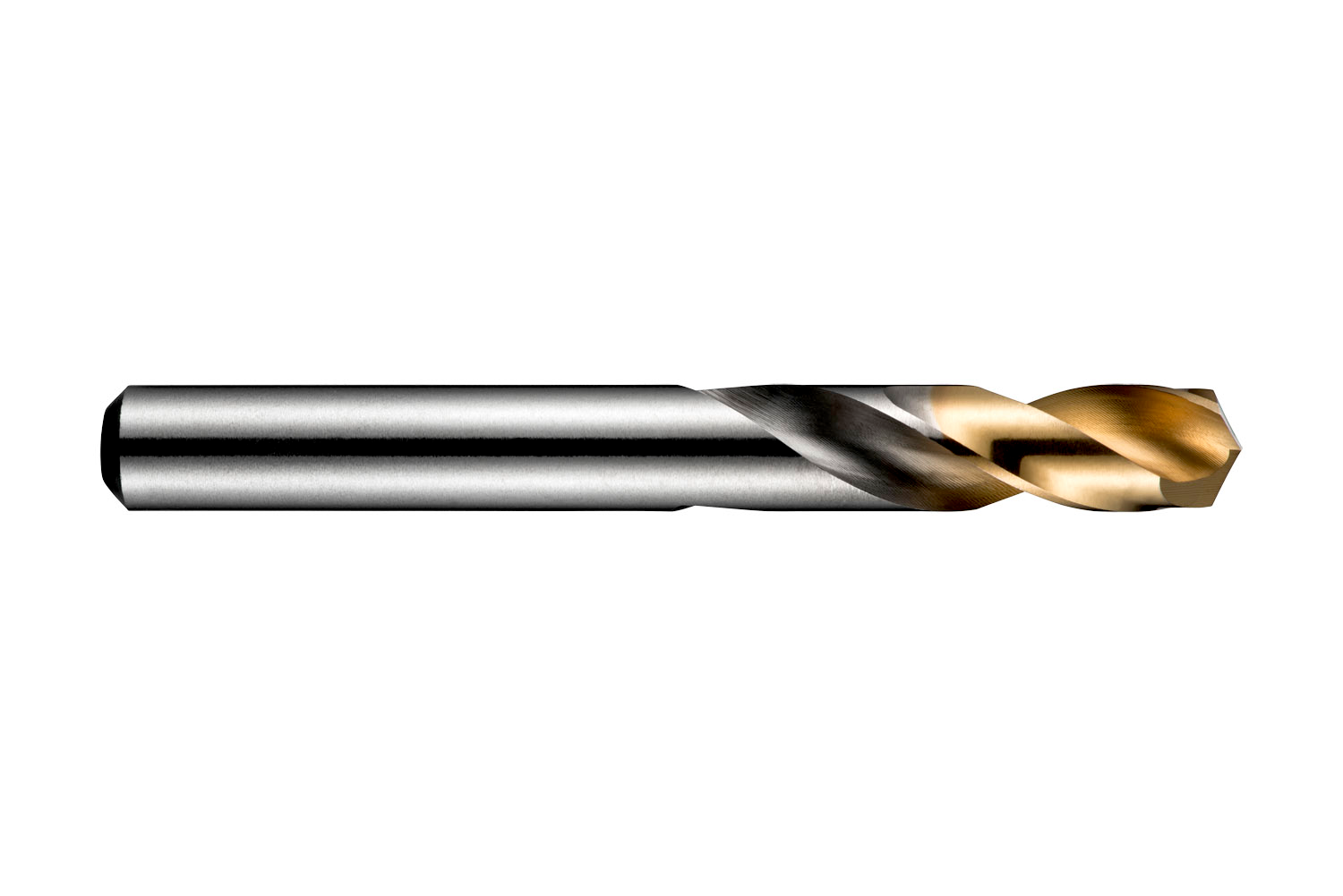

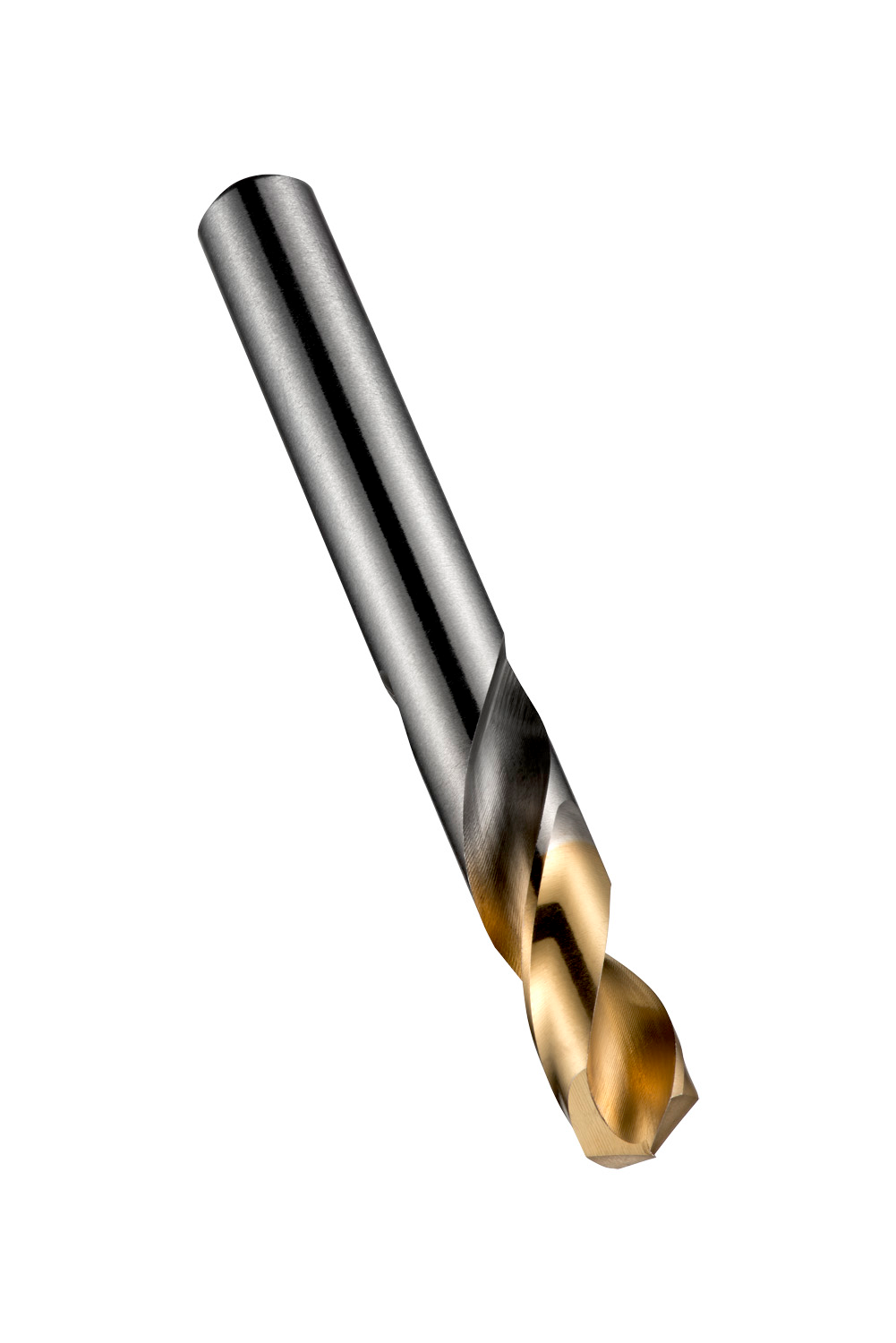

DORMER A02211.0 A022 Series HSS Stub Drill
DORMER A02211.0 A022 Series HSS Stub Drill - Image 2
DORMER A02211.0 A022 Series HSS Stub Drill - Image 3
DORMER A02211.0 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

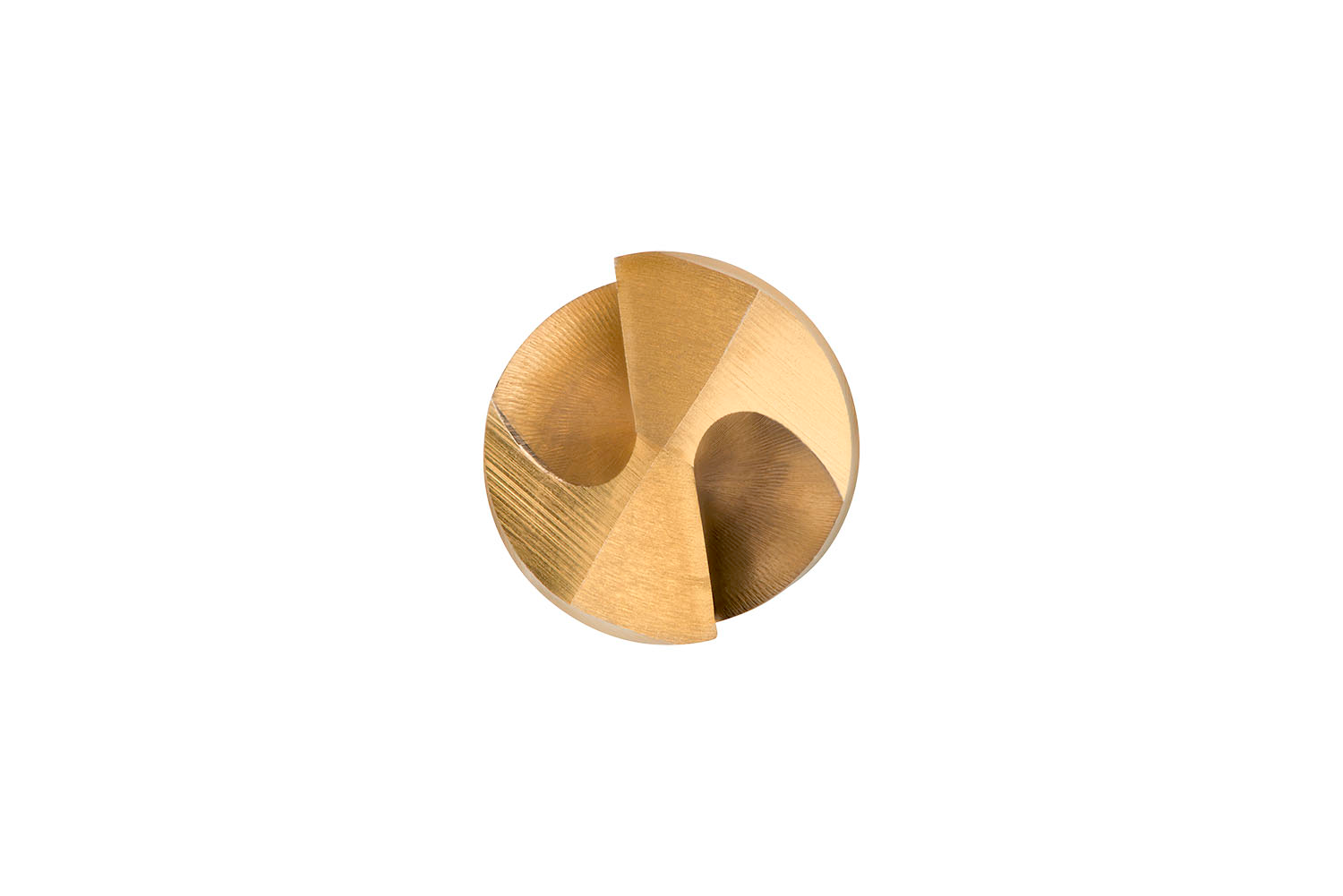

Stub length drill with straight shank, diameter 11mm with an overall length of 95mm and flute length of 47mm according to DIN/ANSI standard with 135° split point, HSS with TiN-tip coating for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0417 kg
Dimensions Length 9.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760588833
Product number (SAP): 86008186
Ordering code ANSI: A02211.0
Gross weight – grams: 59.08
Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 95 mm
Connection diameter – millimeter (DCON MS): 11 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: A02211.0

Brand

DORMER
