DORMER A02211.2 A022 Series HSS Stub Drill

Product Code: A02211.2

$76.48$69.53 Ex. GST

Product Code: A02211.2 SKU A02211.2 Categories , ,

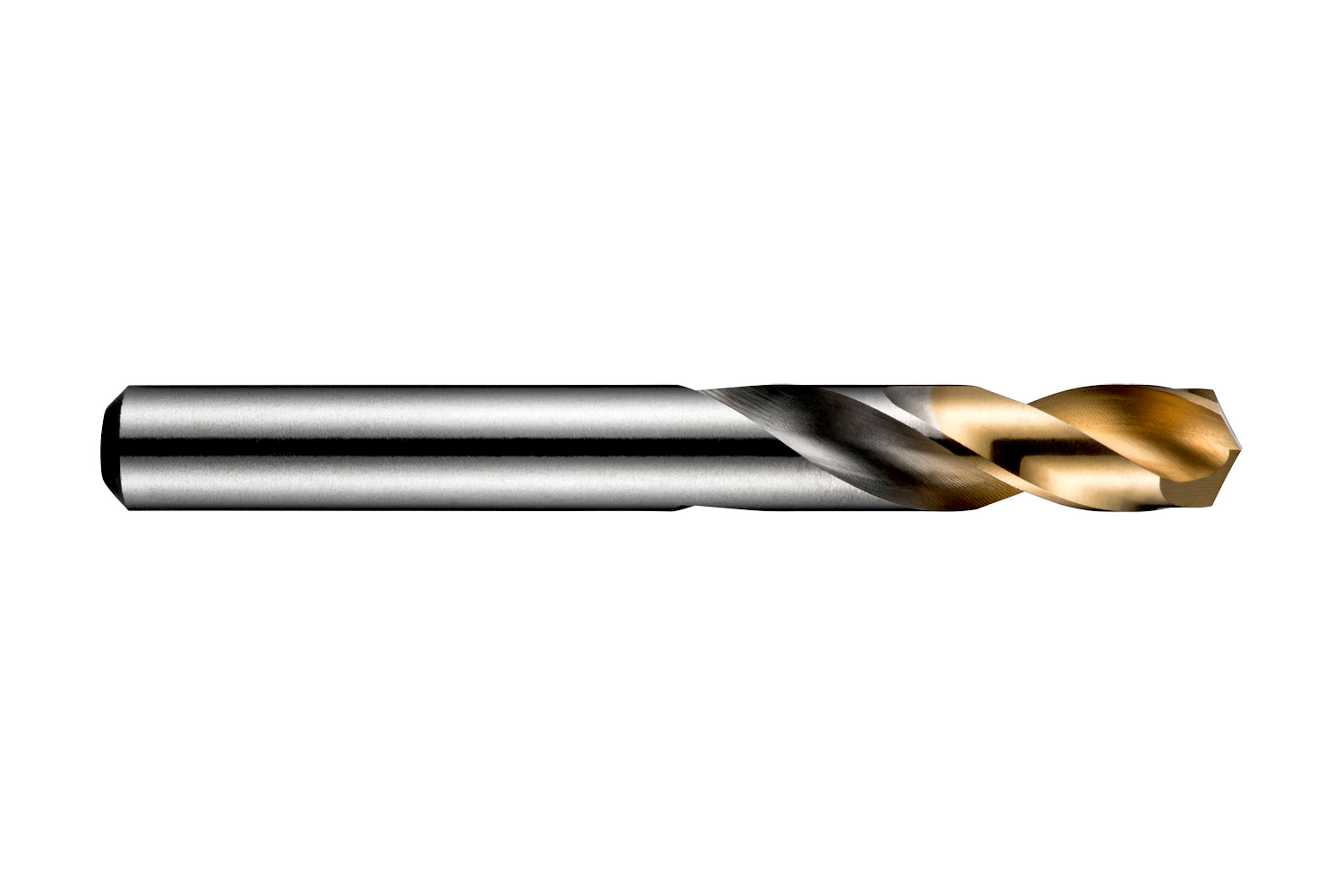

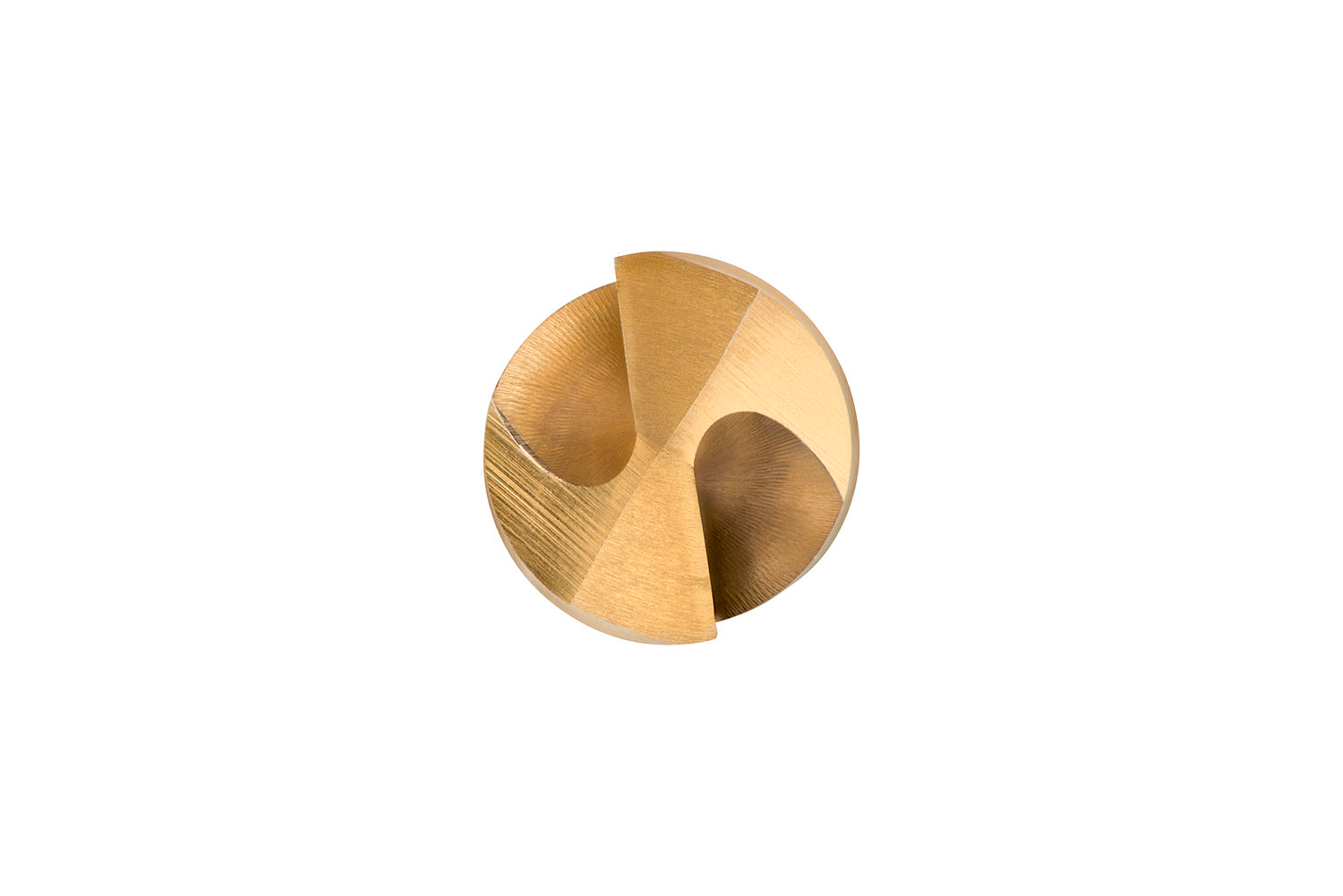

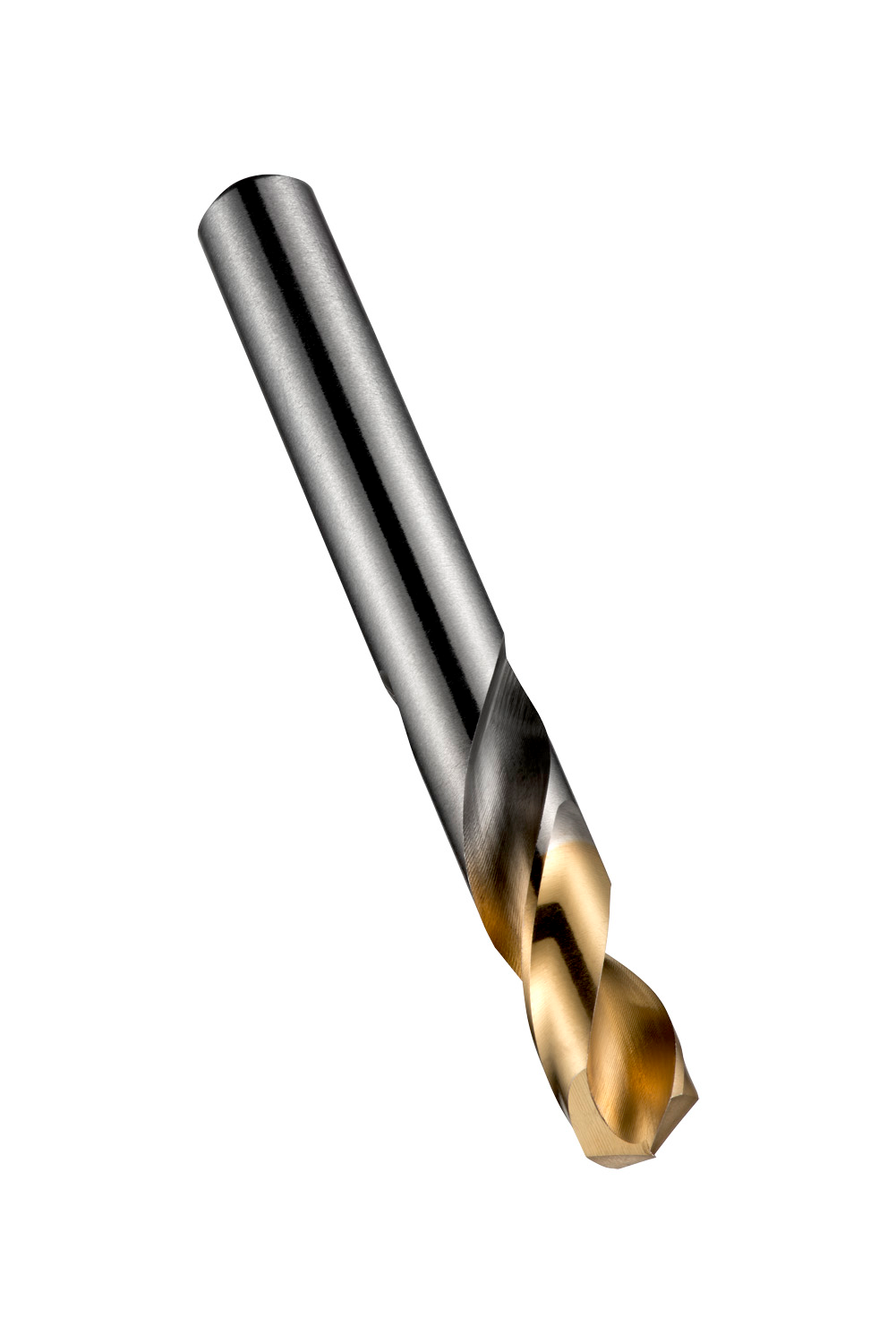

DORMER A02211.2 A022 Series HSS Stub Drill
DORMER A02211.2 A022 Series HSS Stub Drill - Image 2
DORMER A02211.2 A022 Series HSS Stub Drill - Image 3
DORMER A02211.2 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 11.2mm with an overall length of 95mm and flute length of 47mm according to DIN/ANSI standard with 135° split point, HSS with TiN-tip coating for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0742 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760588857
Product number (SAP): 86008188
Ordering code ANSI: A02211.2
Gross weight – grams: 62.22
Cutting diameter – millimeter (DC): 11.2 mm
Cutting diameter – inch (DC): 0.4409 inch
Length chip flute – millimeter (LCF): 47 mm
Overall length – millimeter (OAL): 95 mm
Connection diameter – millimeter (DCON MS): 11.2 mm
Length chip flute – inch (LCF): 1.8504 inch
ISO: A02211.2

Brand

DORMER
