DORMER A0222.0 A022 Series HSS Stub Drill

Product Code: A0222.0

$5.10$4.64 Ex. GST

Product Code: A0222.0 SKU A0222.0 Categories , ,

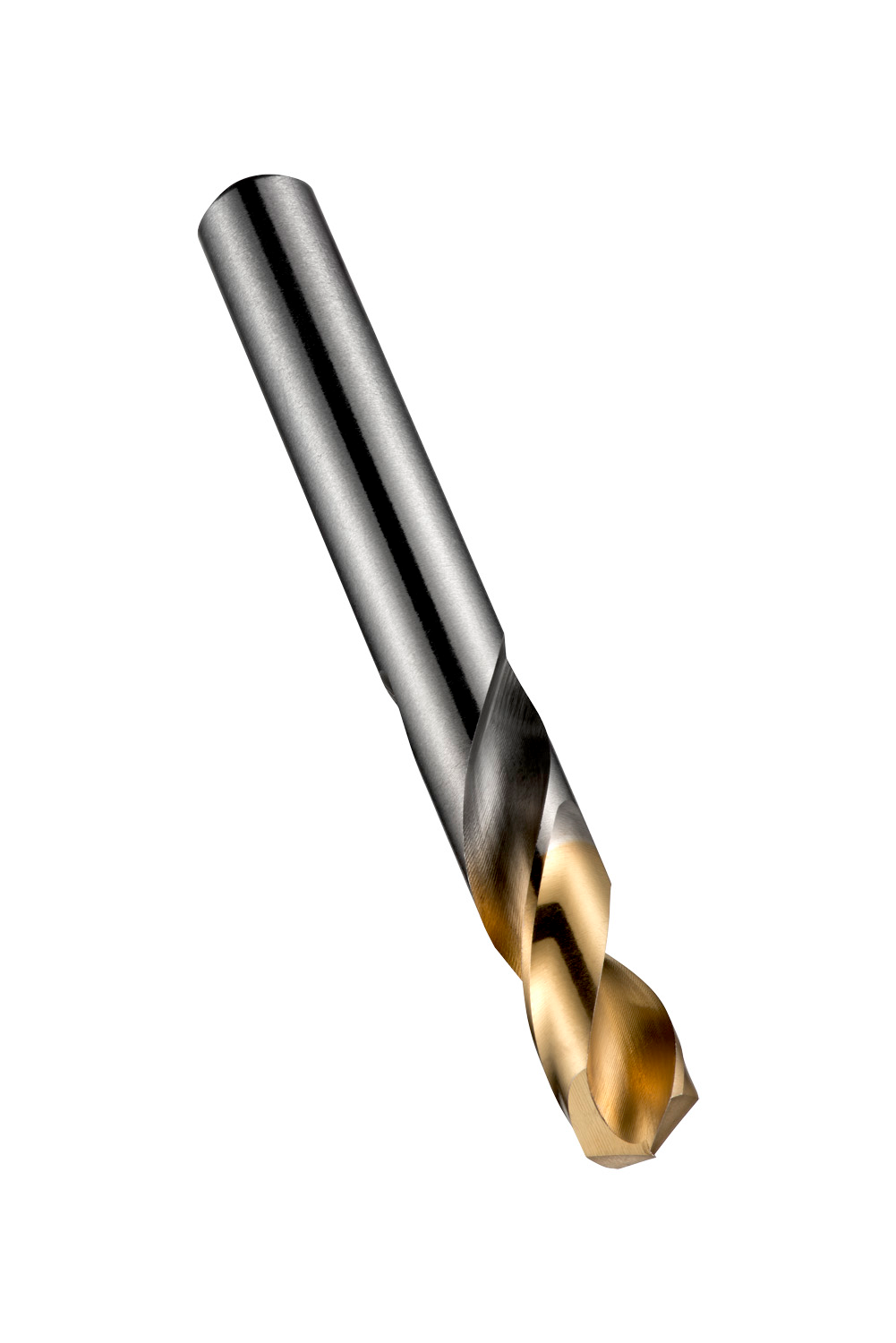

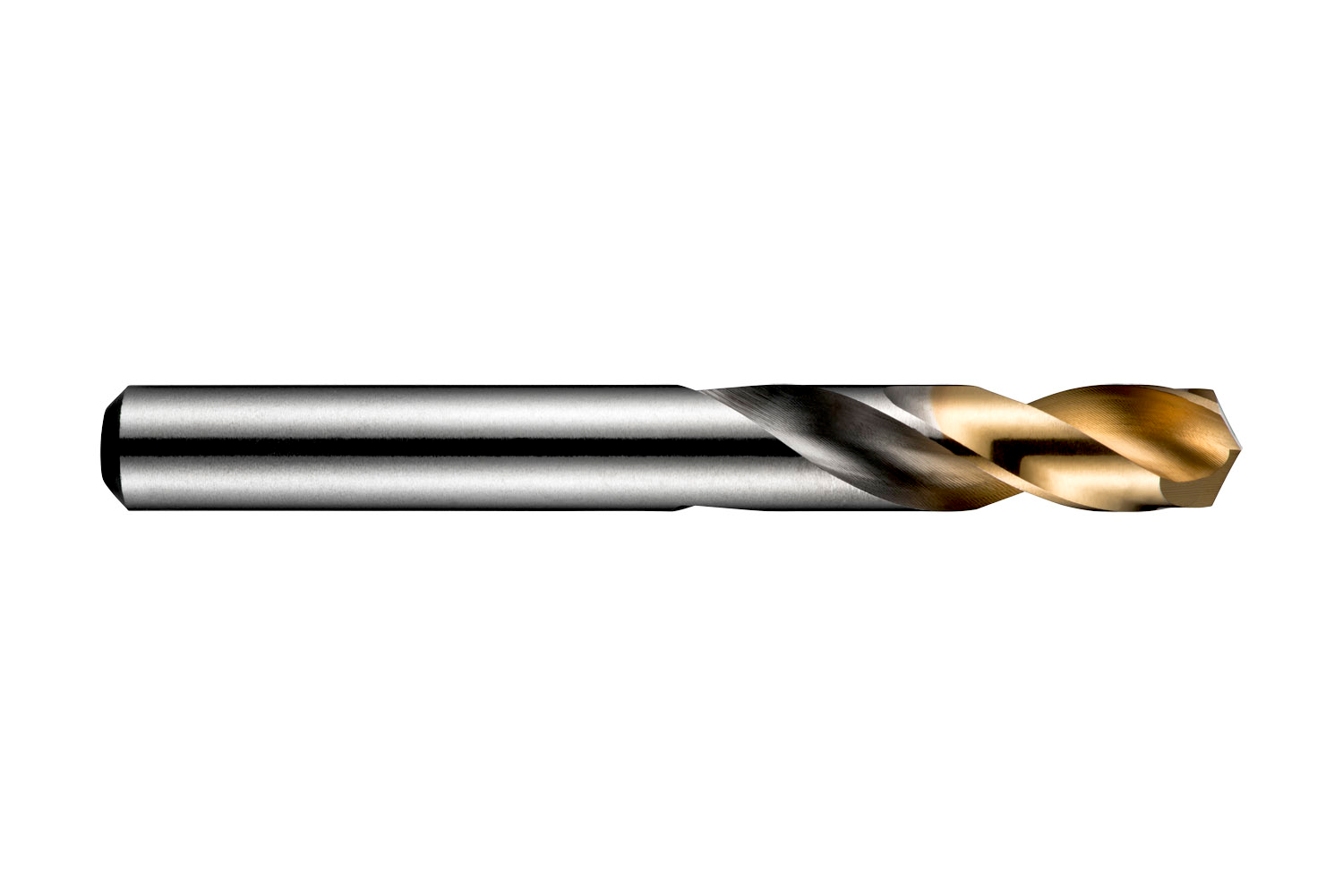

DORMER A0222.0 A022 Series HSS Stub Drill
DORMER A0222.0 A022 Series HSS Stub Drill - Image 2
DORMER A0222.0 A022 Series HSS Stub Drill - Image 3
DORMER A0222.0 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

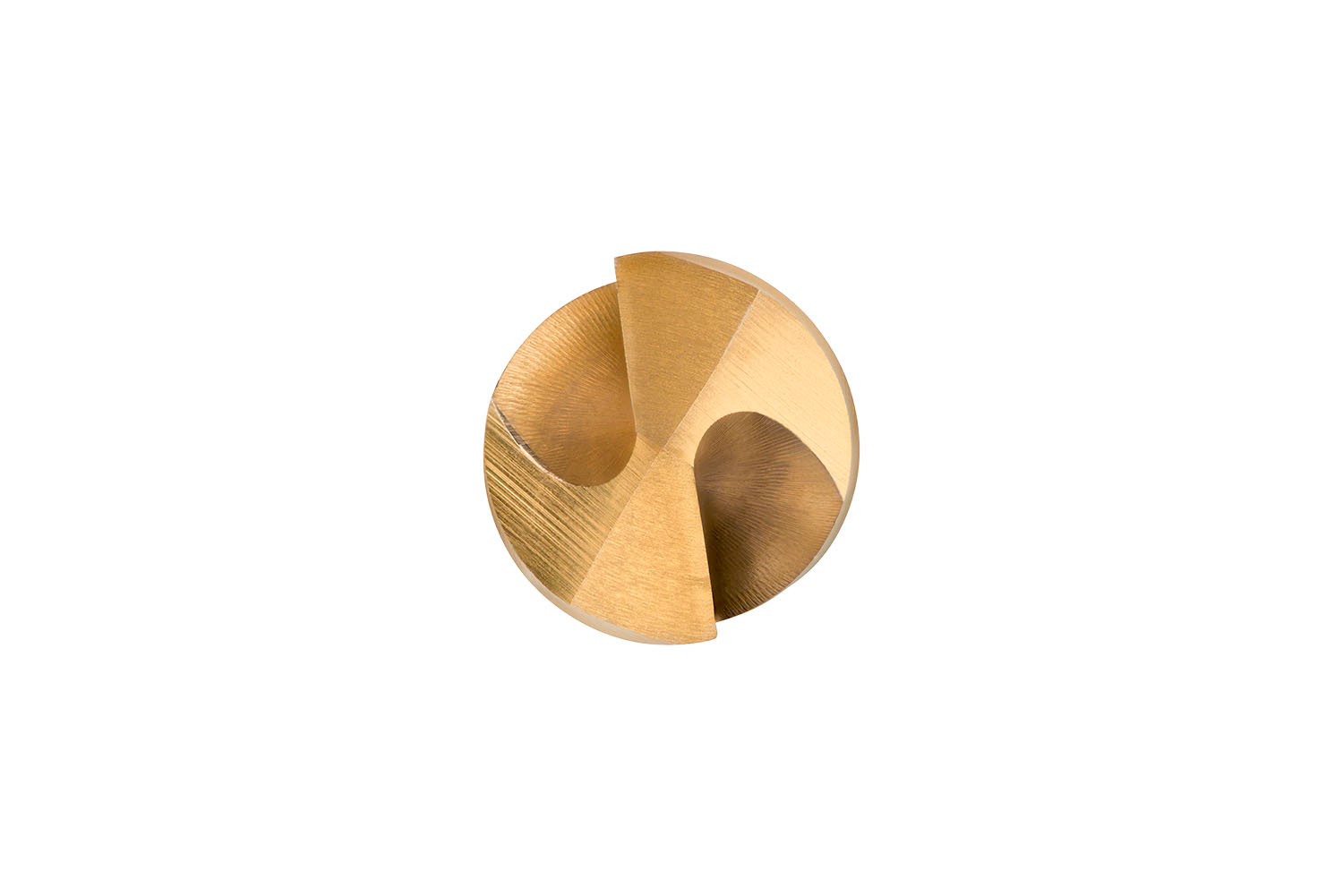

Stub length drill with straight shank, diameter 2mm with an overall length of 38mm and flute length of 12mm according to DIN/ANSI standard with 135° split point, HSS with TiN-tip coating for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0050 kg
Dimensions Length 3.8cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760600115
Product number (SAP): 86008211
Ordering code ANSI: A0222.0
Gross weight – grams: 1.23
Cutting diameter – millimeter (DC): 2 mm
Cutting diameter – inch (DC): 0.0787 inch
Length chip flute – millimeter (LCF): 12 mm
Overall length – millimeter (OAL): 38 mm
Connection diameter – millimeter (DCON MS): 2 mm
Length chip flute – inch (LCF): 0.4724 inch
ISO: A0222.0

Brand

DORMER
