DORMER A0223/64 A022 Series HSS Stub Drill

Product Code: A0223/64

$7.43$6.75 Ex. GST

Product Code: A0223/64 SKU A0223/64 Categories , ,

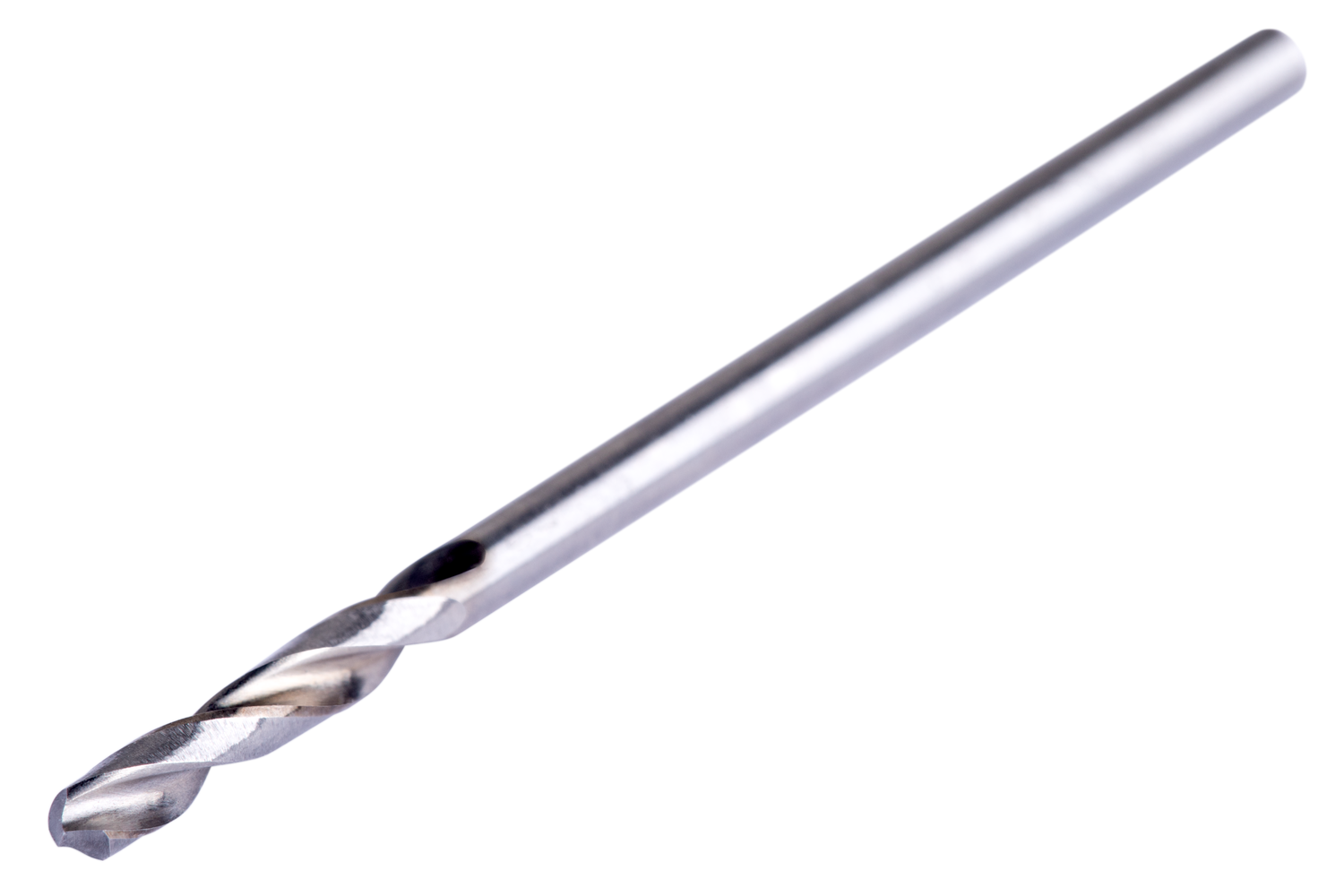

DORMER A0223/64 A022 Series HSS Stub Drill

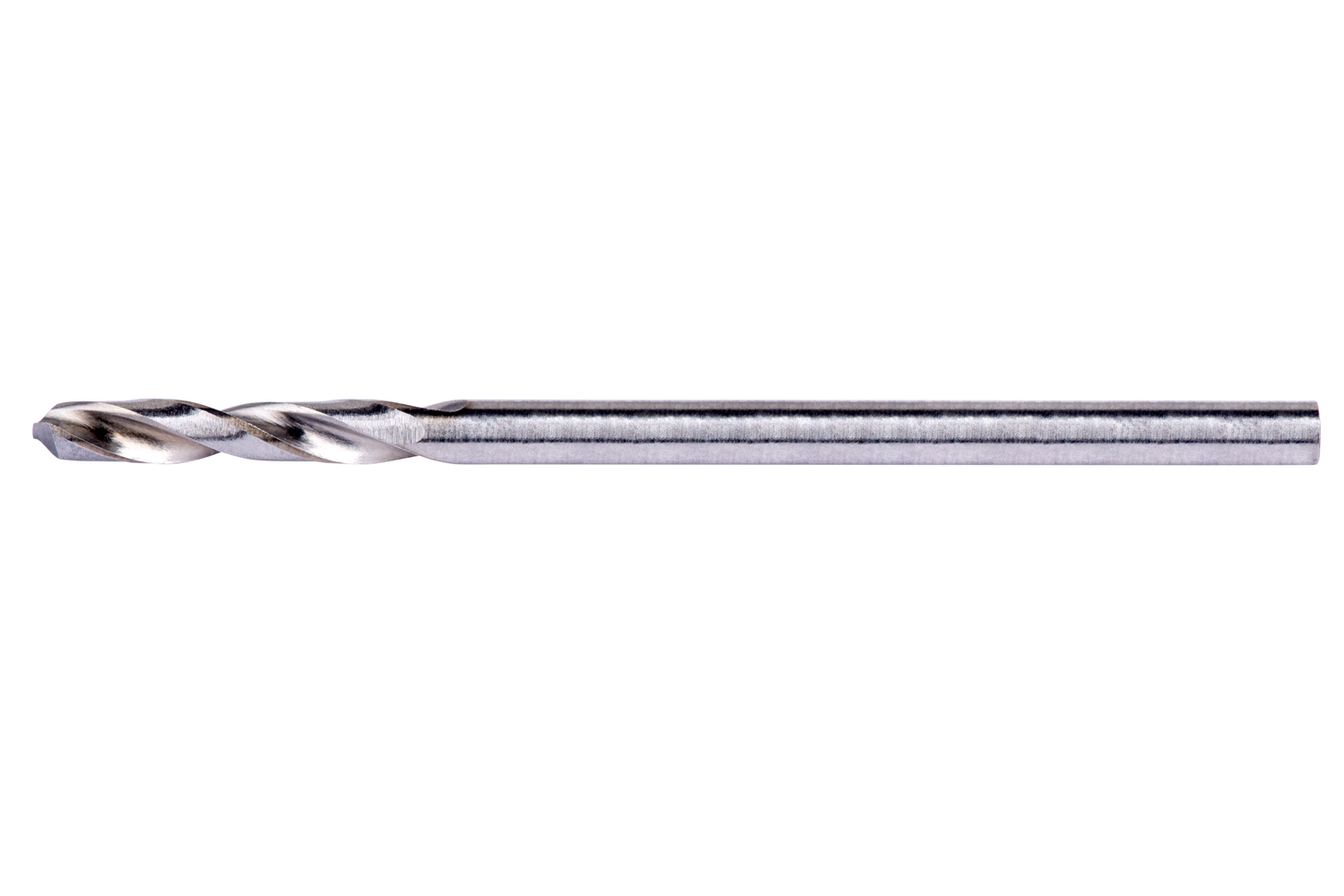

DORMER A0223/64 A022 Series HSS Stub Drill - Image 2

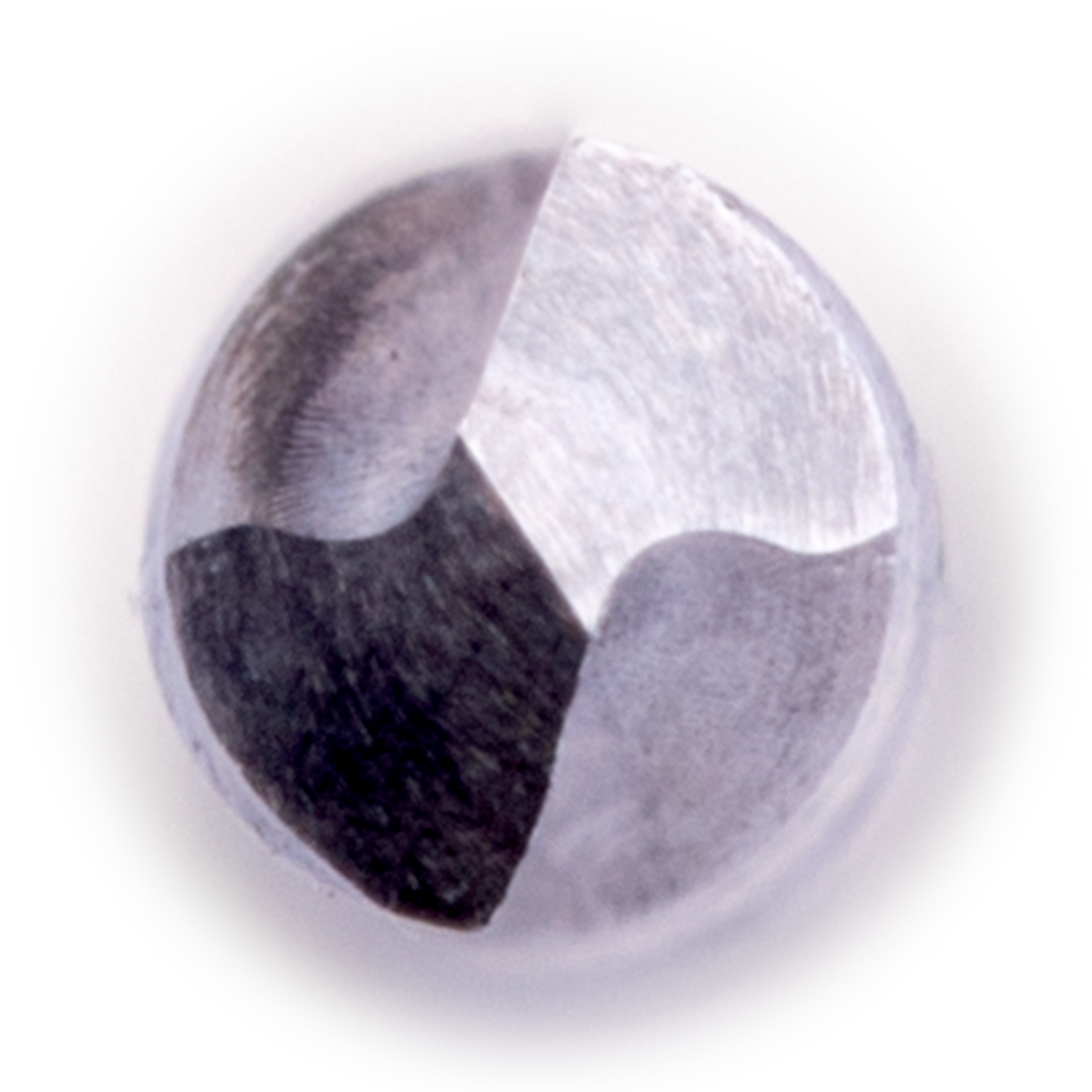

DORMER A0223/64 A022 Series HSS Stub Drill - Image 3
DORMER A0223/64 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 0.0469″ (3/64) with an overall length of 35mm and flute length of 13mm according to DIN/ANSI standard with 135° conical point, HSS with bright finish for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0072 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760600559
Product number (SAP): 86008236
Ordering code ANSI: A0223/64
Gross weight – grams: 0.258
Cutting diameter – fractional inch (DC): 3/64
Cutting diameter – millimeter (DC): 1.19 mm
Cutting diameter – inch (DC): 0.0469 inch
Length chip flute – millimeter (LCF): 13 mm
Overall length – millimeter (OAL): 35 mm
Connection diameter – millimeter (DCON MS): 1.19 mm
Length chip flute – inch (LCF): 0.5118 inch
ISO: A0223/64

Brand

DORMER
