DORMER A0227.8 A022 Series HSS Stub Drill

Product Code: A0227.8

$25.95$23.59 Ex. GST

Product Code: A0227.8 SKU A0227.8 Categories , ,

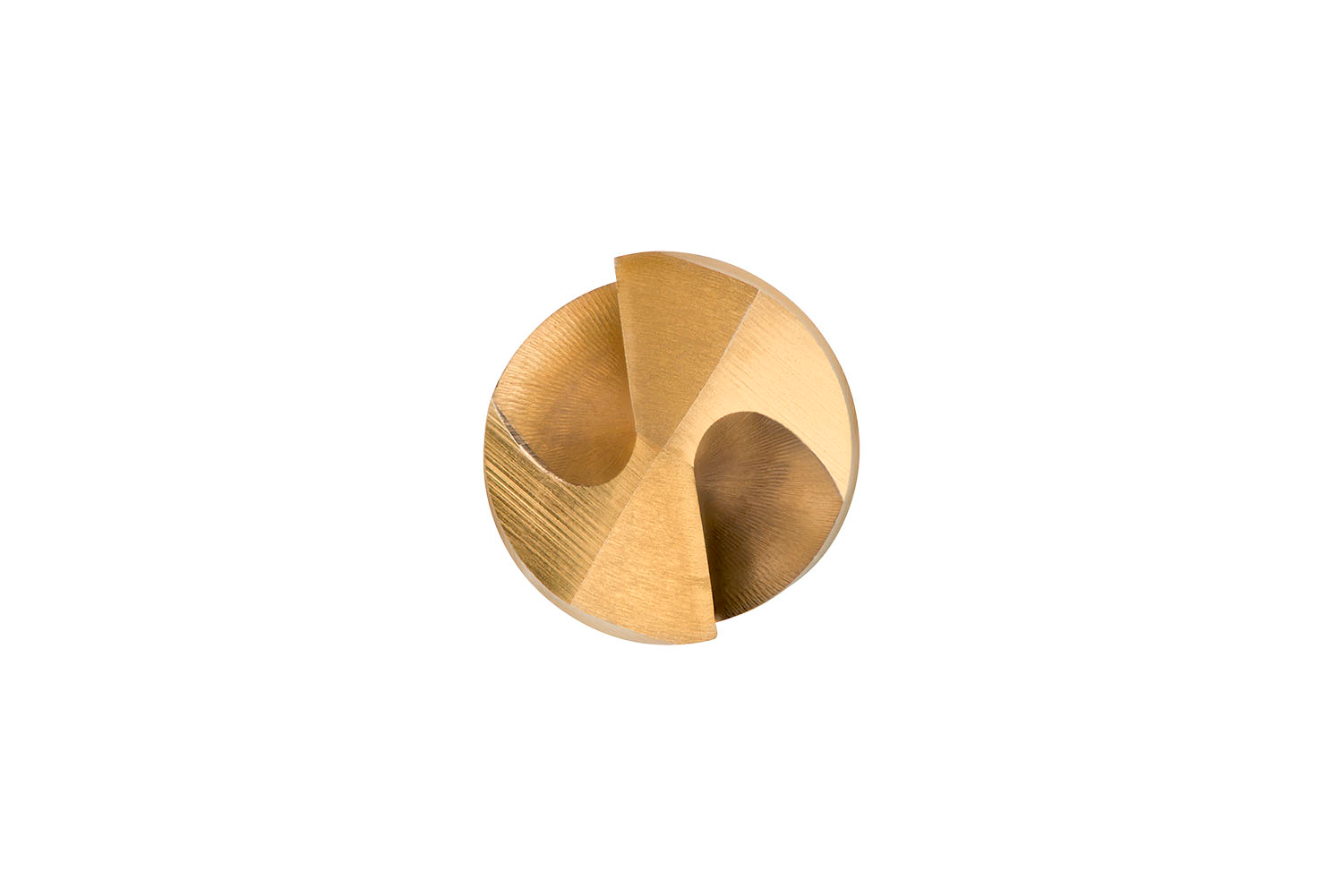

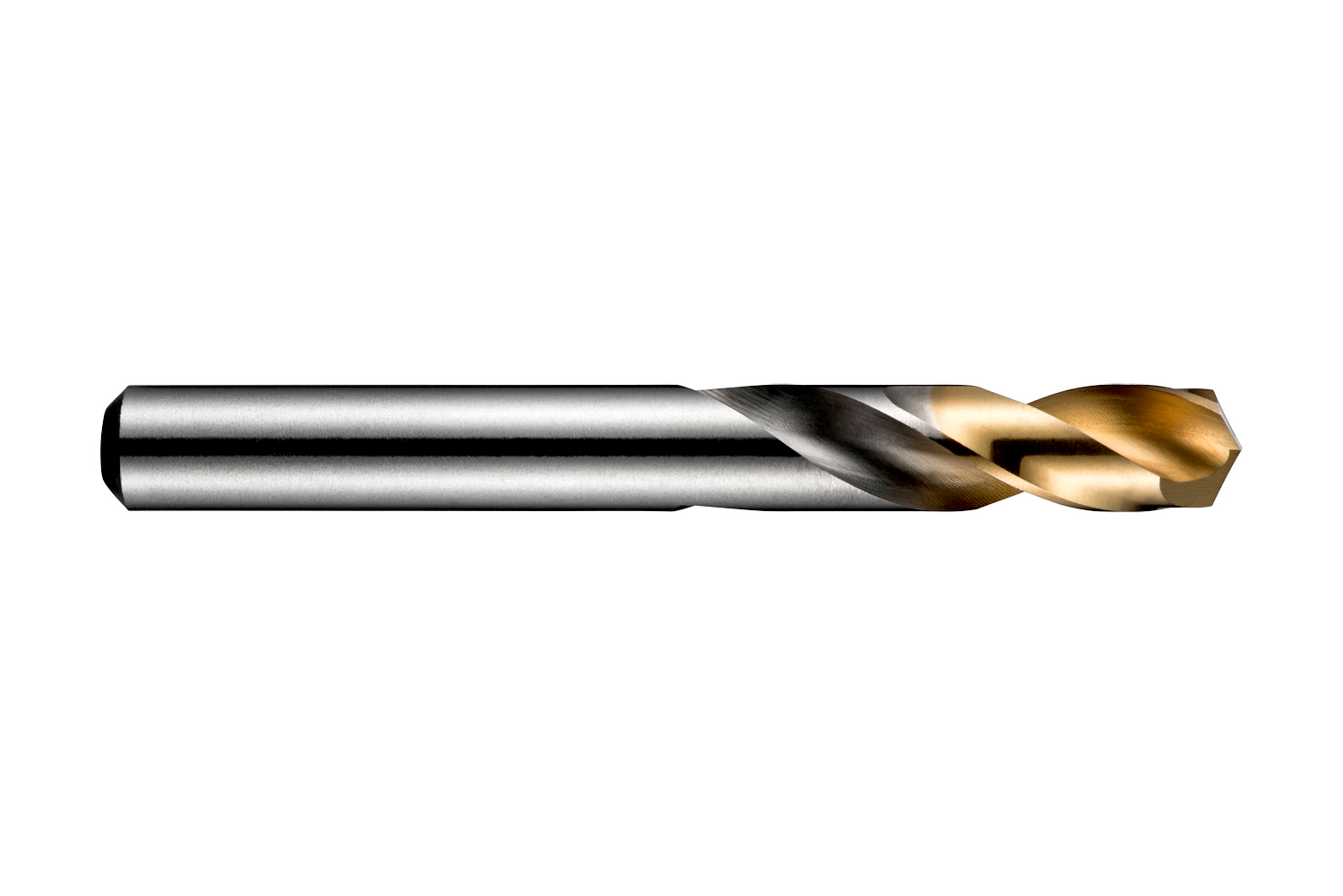

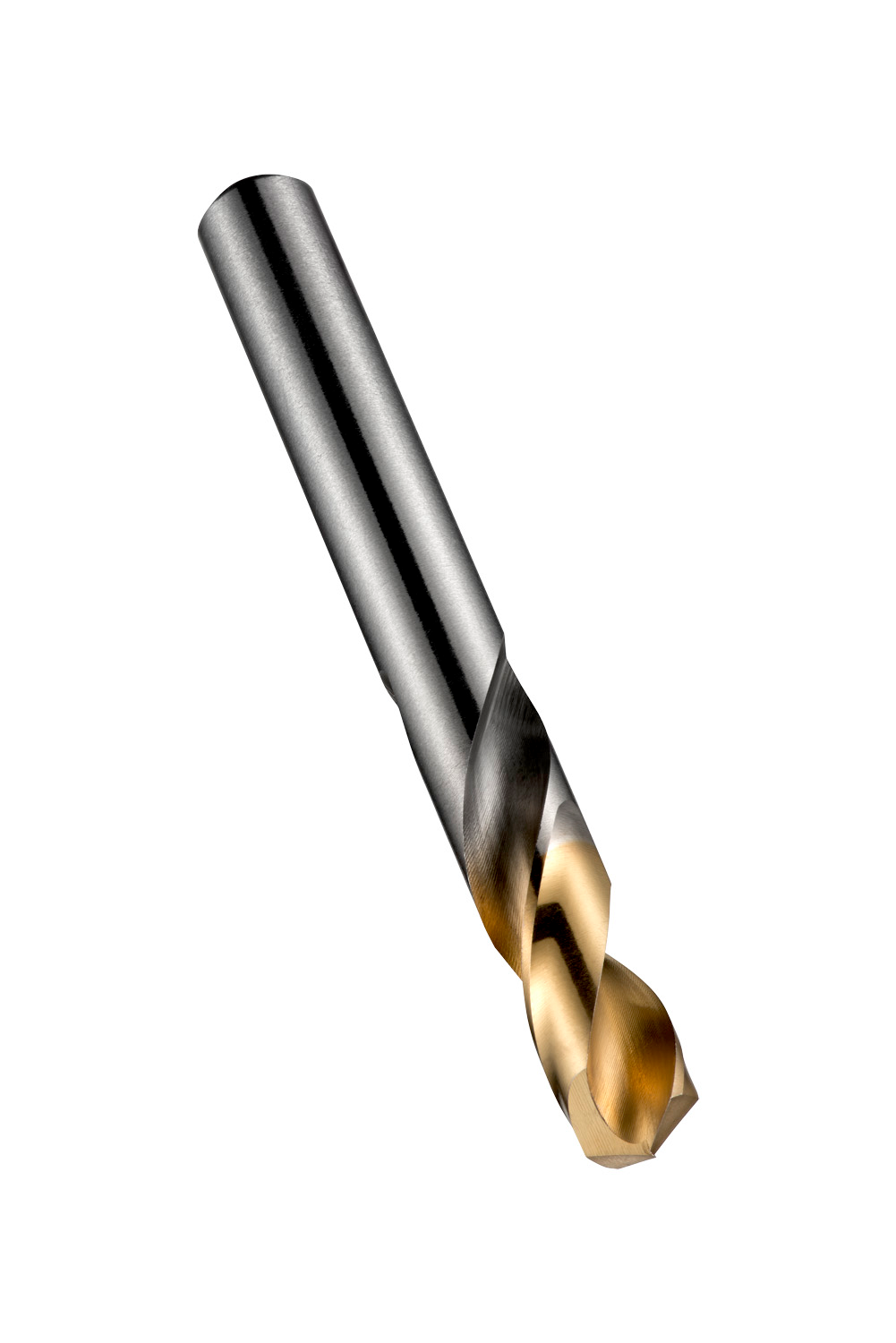

DORMER A0227.8 A022 Series HSS Stub Drill
DORMER A0227.8 A022 Series HSS Stub Drill - Image 2
DORMER A0227.8 A022 Series HSS Stub Drill - Image 3
DORMER A0227.8 A022 Series HSS Stub Drill - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Stub length drill with straight shank, diameter 7.8mm with an overall length of 79mm and flute length of 37mm according to DIN/ANSI standard with 135° split point, HSS with TiN-tip coating for 2.5xD drilling without pecking in steel and cast iron

Additional information

Weight 0.0252 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760589618
Product number (SAP): 86008280
Ordering code ANSI: A0227.8
Gross weight – grams: 26.16
Cutting diameter – millimeter (DC): 7.8 mm
Cutting diameter – inch (DC): 0.3071 inch
Length chip flute – millimeter (LCF): 37 mm
Overall length – millimeter (OAL): 79 mm
Connection diameter – millimeter (DCON MS): 7.8 mm
Length chip flute – inch (LCF): 1.4567 inch
ISO: A0227.8

Brand

DORMER
