DORMER A100.52 Jobber Drills

Product Code: A100.52

$13.04$11.85 Ex. GST

Product Code: A100.52 SKU A100.52 Categories , ,

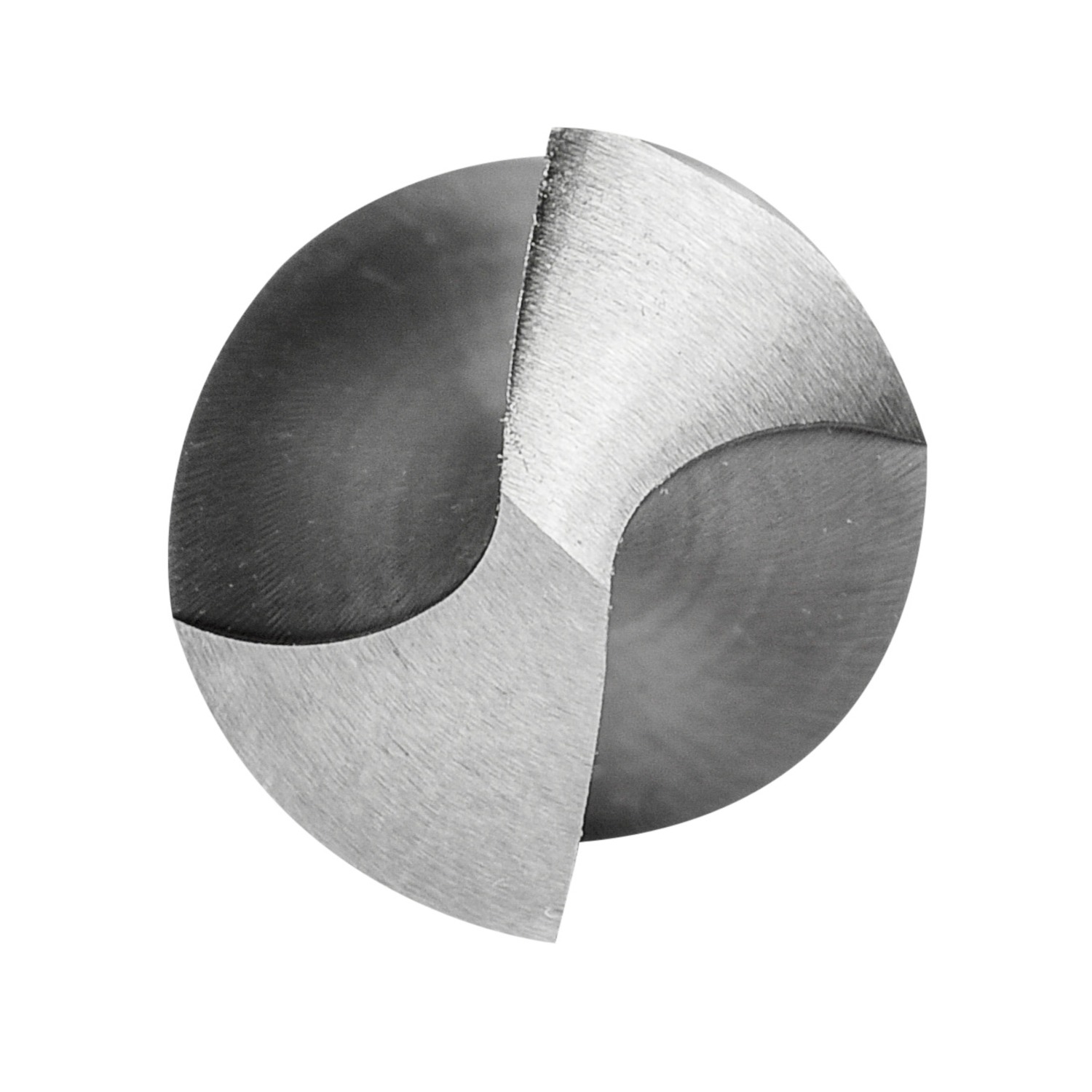

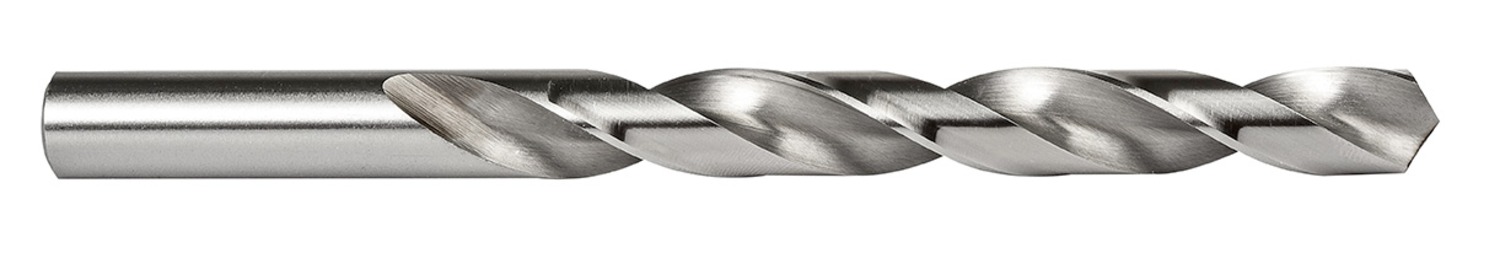

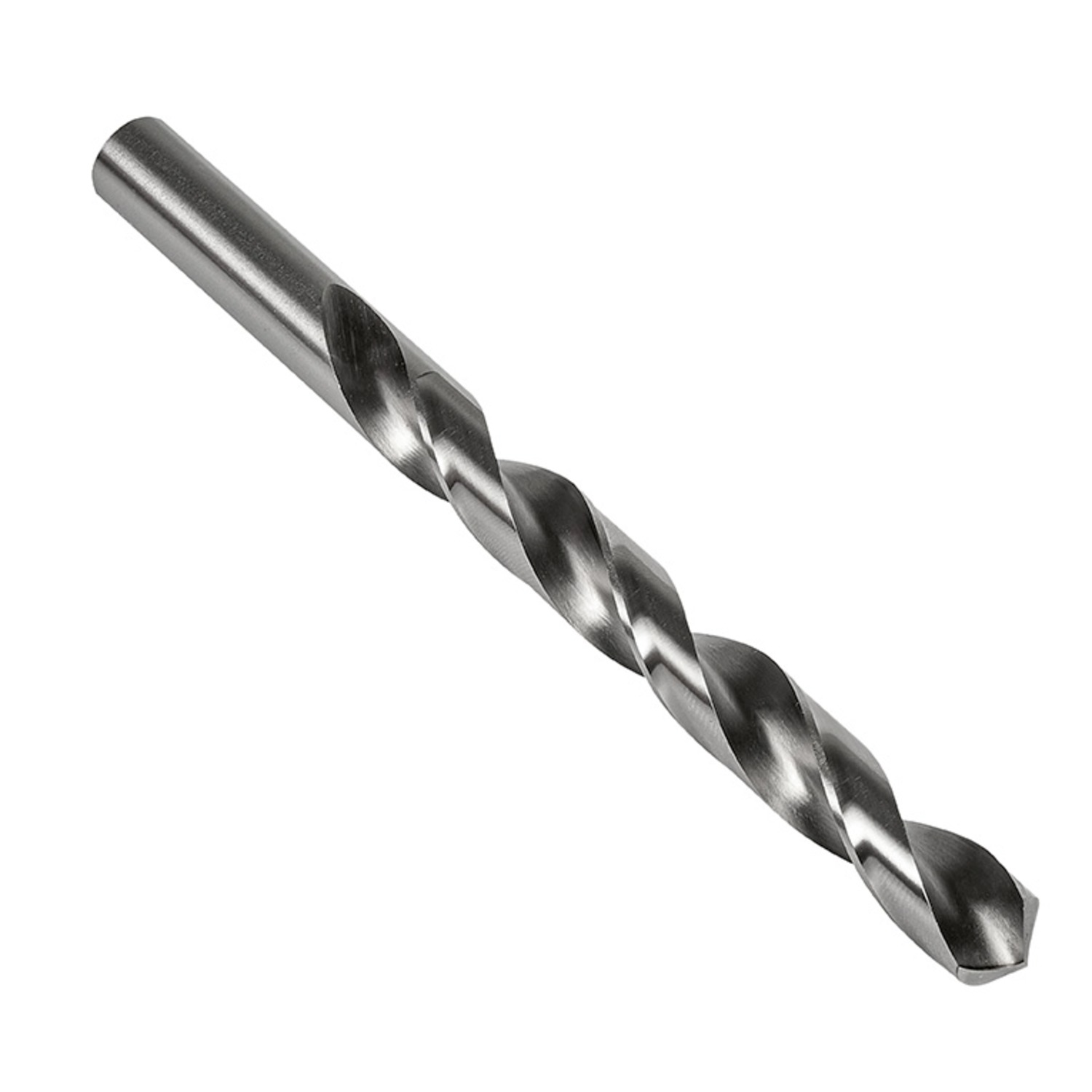

DORMER A100.52 Jobber Drills
DORMER A100.52 Jobber Drills - Image 2
DORMER A100.52 Jobber Drills - Image 3
DORMER A100.52 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.52mm with an overall length of 22mm and flute length of 6mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0126 kg
Dimensions Length 2.2cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760000137
Product number (SAP): 86008335
Ordering code ANSI: A100.52
Gross weight – grams: 0.2
Cutting diameter – millimeter (DC): 0.52 mm
Cutting diameter – inch (DC): 0.0205 inch
Length chip flute – millimeter (LCF): 6 mm
Overall length – millimeter (OAL): 22 mm
Connection diameter – millimeter (DCON MS): 0.52 mm
Length chip flute – inch (LCF): 0.2362 inch
ISO: A100.52

Brand

DORMER
