DORMER A100.85 Jobber Drills

Product Code: A100.85

$6.96$6.33 Ex. GST

Product Code: A100.85 SKU A100.85 Categories , ,

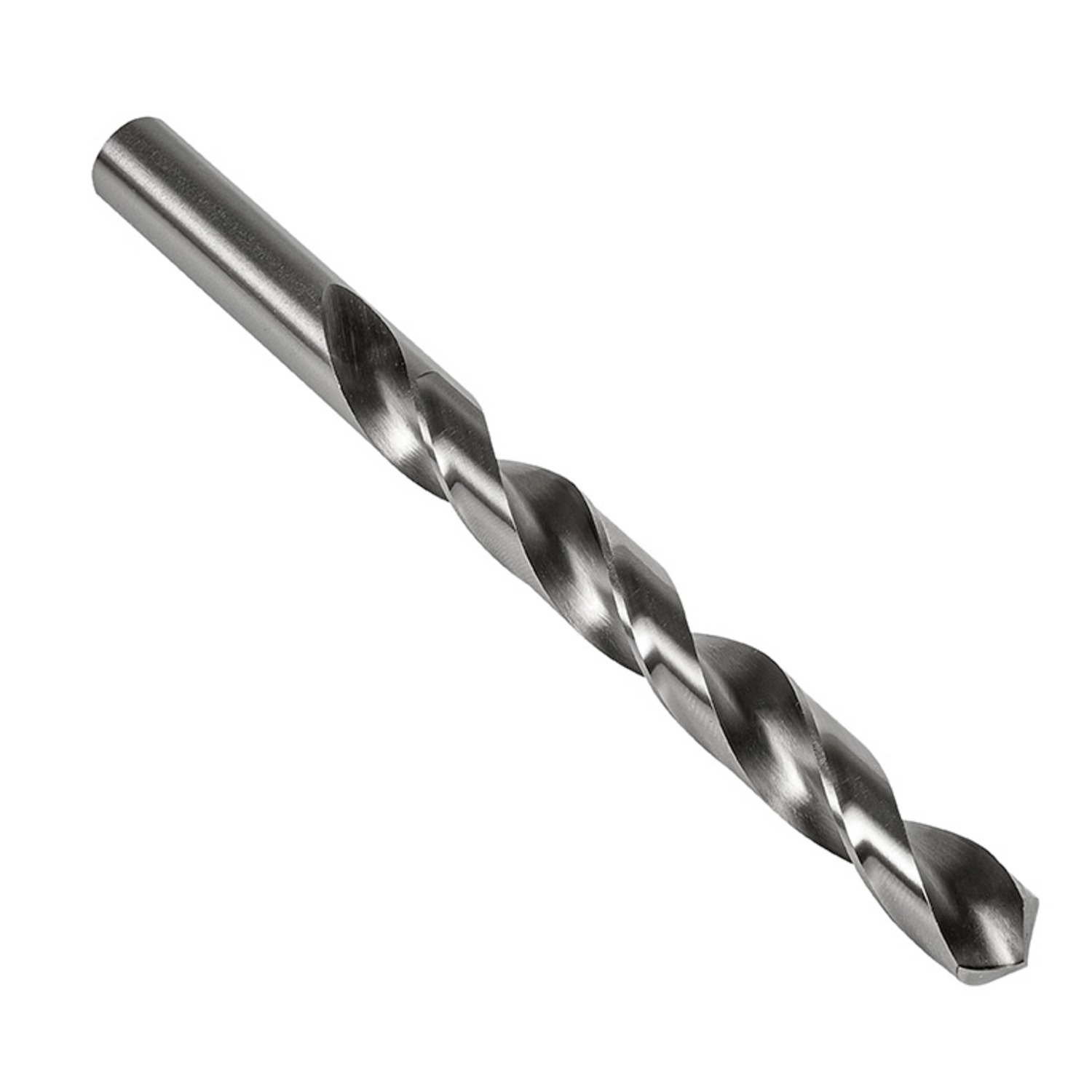

DORMER A100.85 Jobber Drills

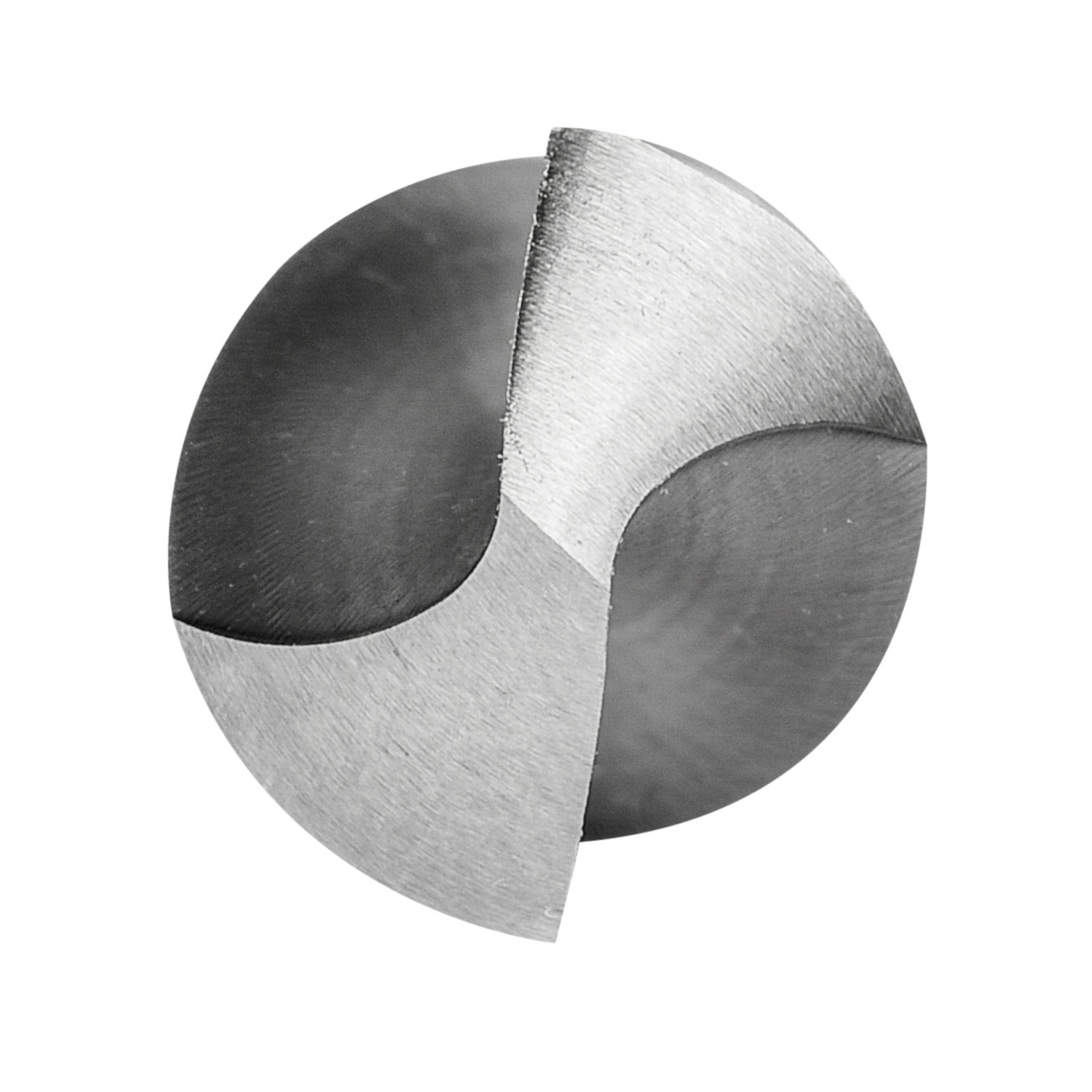

DORMER A100.85 Jobber Drills - Image 2

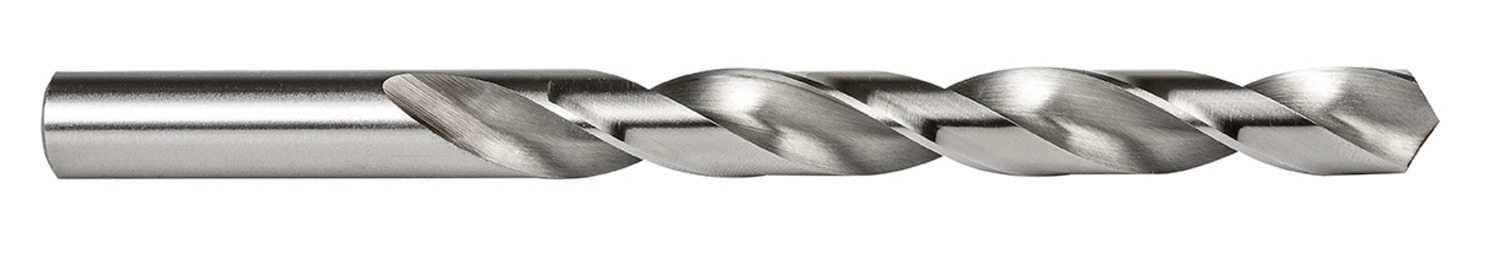

DORMER A100.85 Jobber Drills - Image 3
DORMER A100.85 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.85mm with an overall length of 30mm and flute length of 10mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0068 kg
Dimensions Length 3cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760000267
Product number (SAP): 86008348
Ordering code ANSI: A100.85
Gross weight – grams: 0.28
Cutting diameter – millimeter (DC): 0.85 mm
Cutting diameter – inch (DC): 0.0335 inch
Length chip flute – millimeter (LCF): 10 mm
Overall length – millimeter (OAL): 30 mm
Connection diameter – millimeter (DCON MS): 0.85 mm
Length chip flute – inch (LCF): 0.3937 inch
ISO: A100.85

Brand

DORMER
