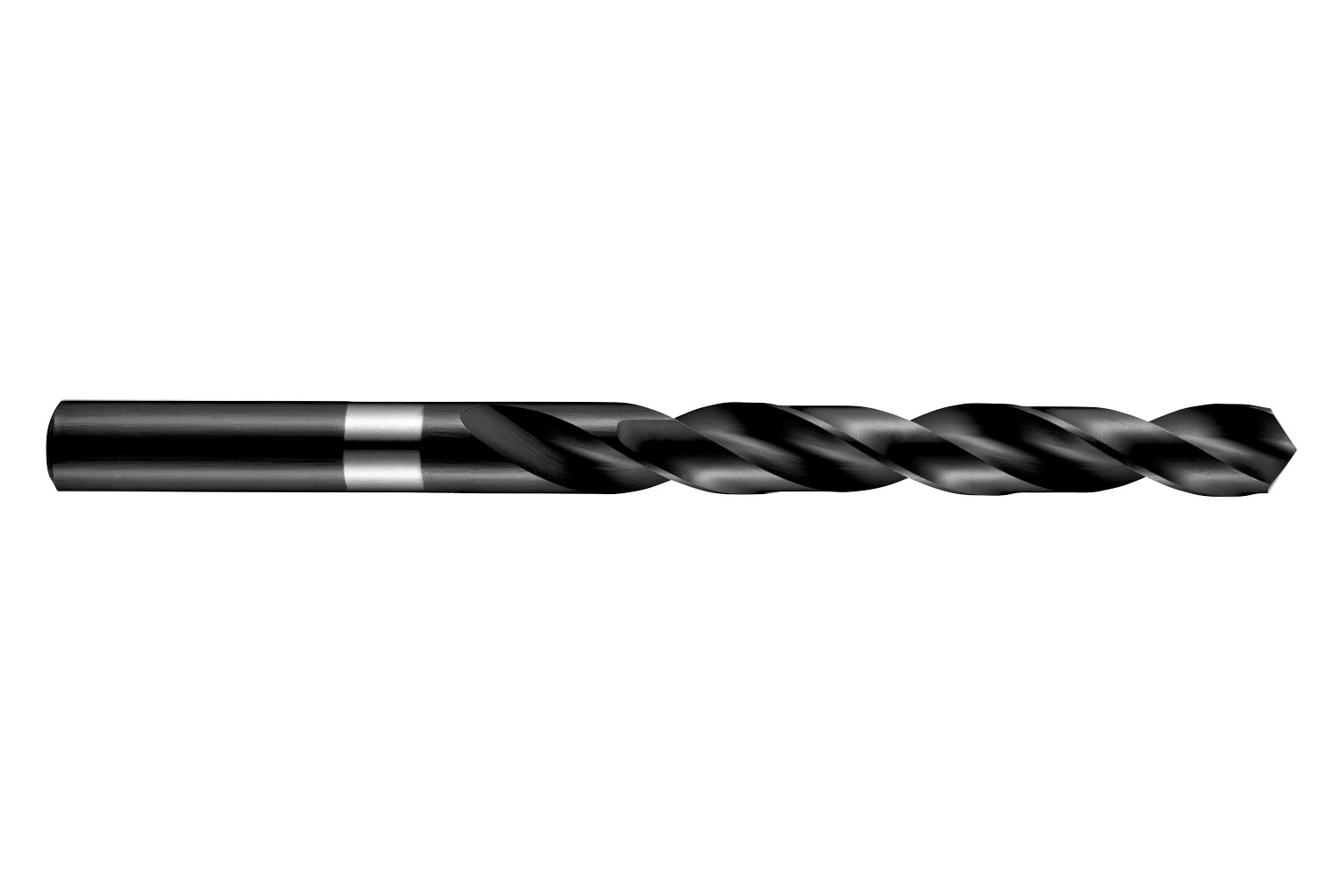

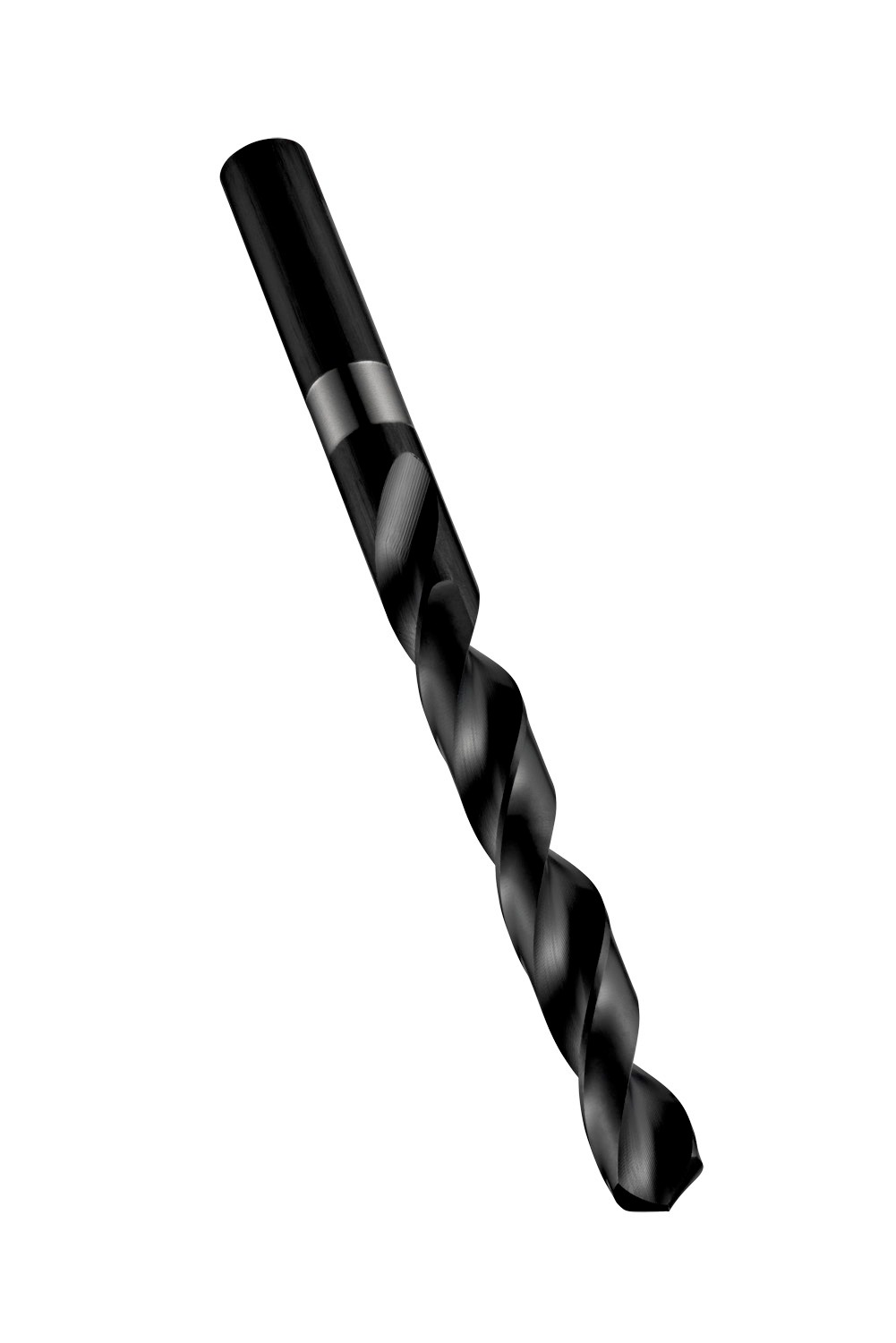

DORMER A1001.8 Jobber Drills

Description

Jobber length drill with straight shank, diameter 1.8mm with an overall length of 46mm and flute length of 22mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight	0.0007 kg
Dimensions
barcode

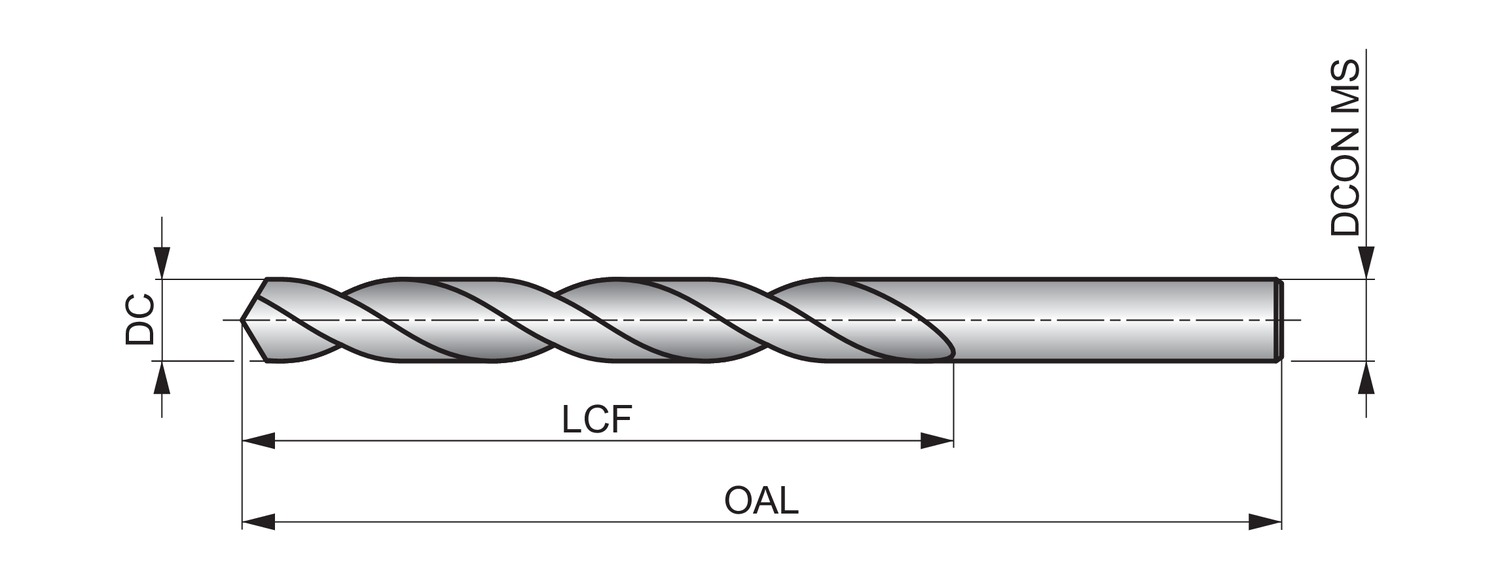

Additional Information	Description: Value EAN number: 7320760000489 Product number (SAP): 86008370 Ordering code ANSI: A1001.8 Gross weight – grams: 0.9 Cutting diameter – millimeter (DC): 1.8 mm Cutting diameter – inch (DC): 0.0709 inch Length chip flute – millimeter (LCF): 22 mm Overall length – millimeter (OAL): 46 mm Connection diameter – millimeter (DCON MS): 1.8 mm Length chip flute – inch (LCF): 0.8661 inch ISO: A1001.8
