DORMER A1001.85 Jobber Drills

Product Code: A1001.85

$6.12$5.56 Ex. GST

Product Code: A1001.85 SKU A1001.85 Categories , ,

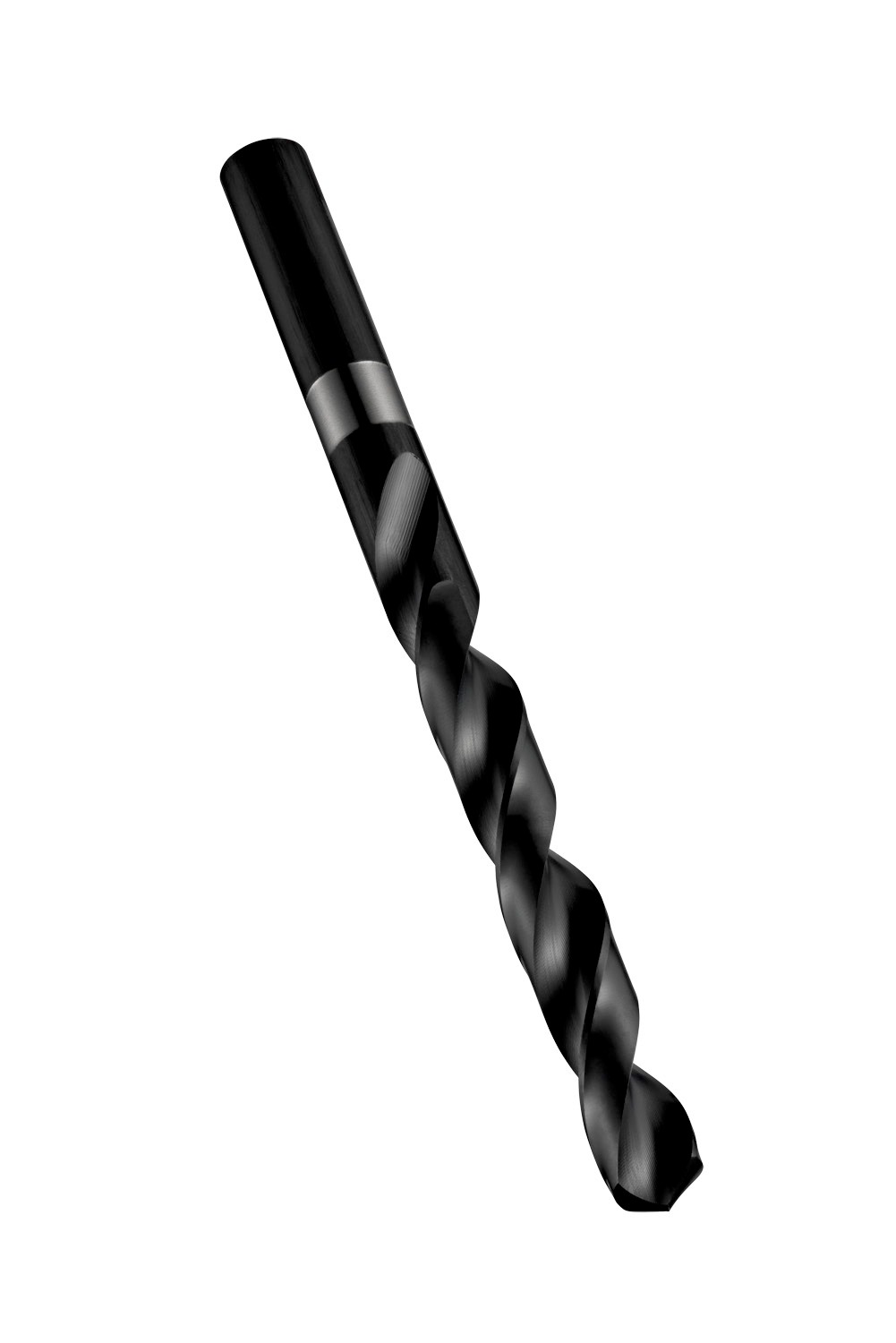

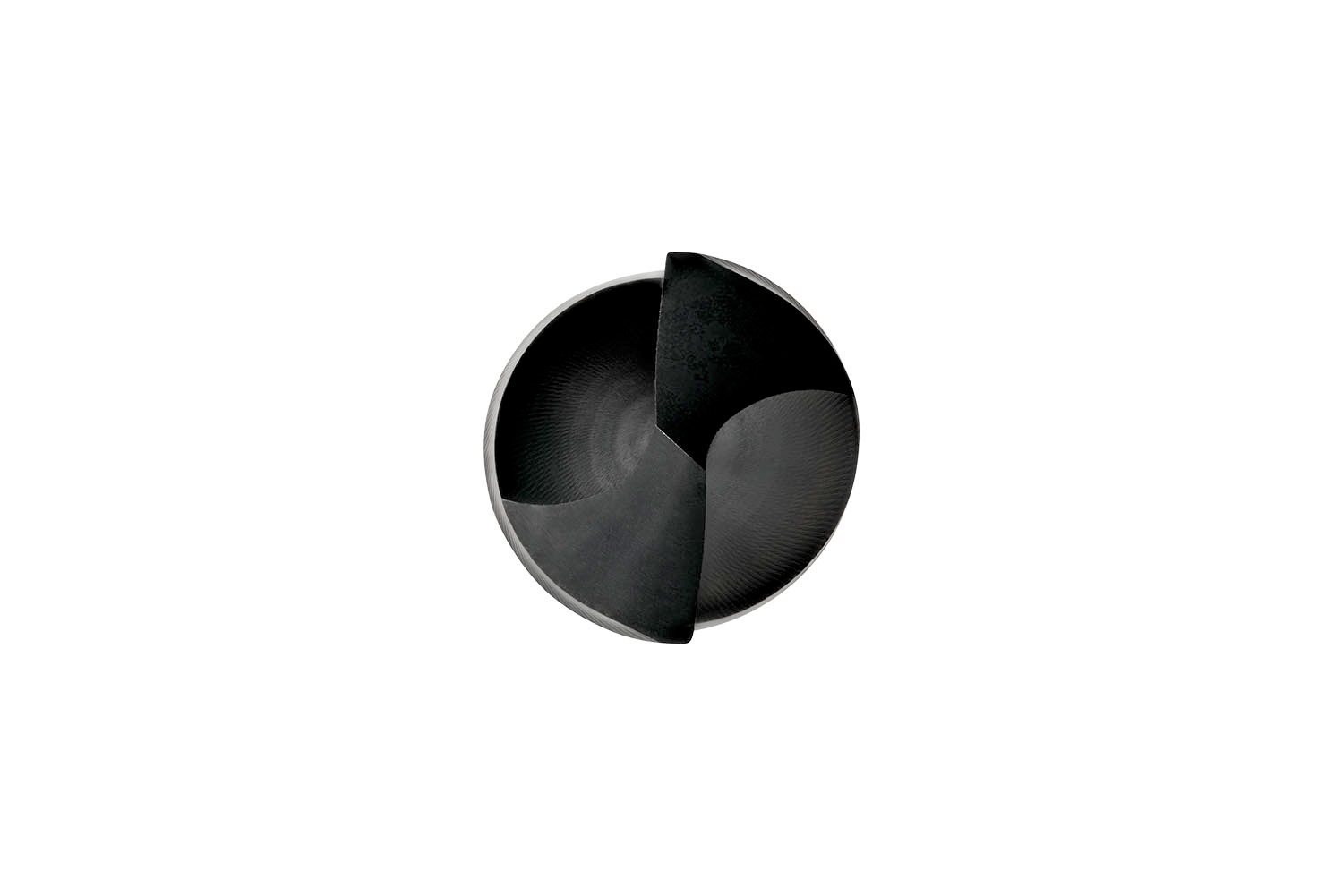

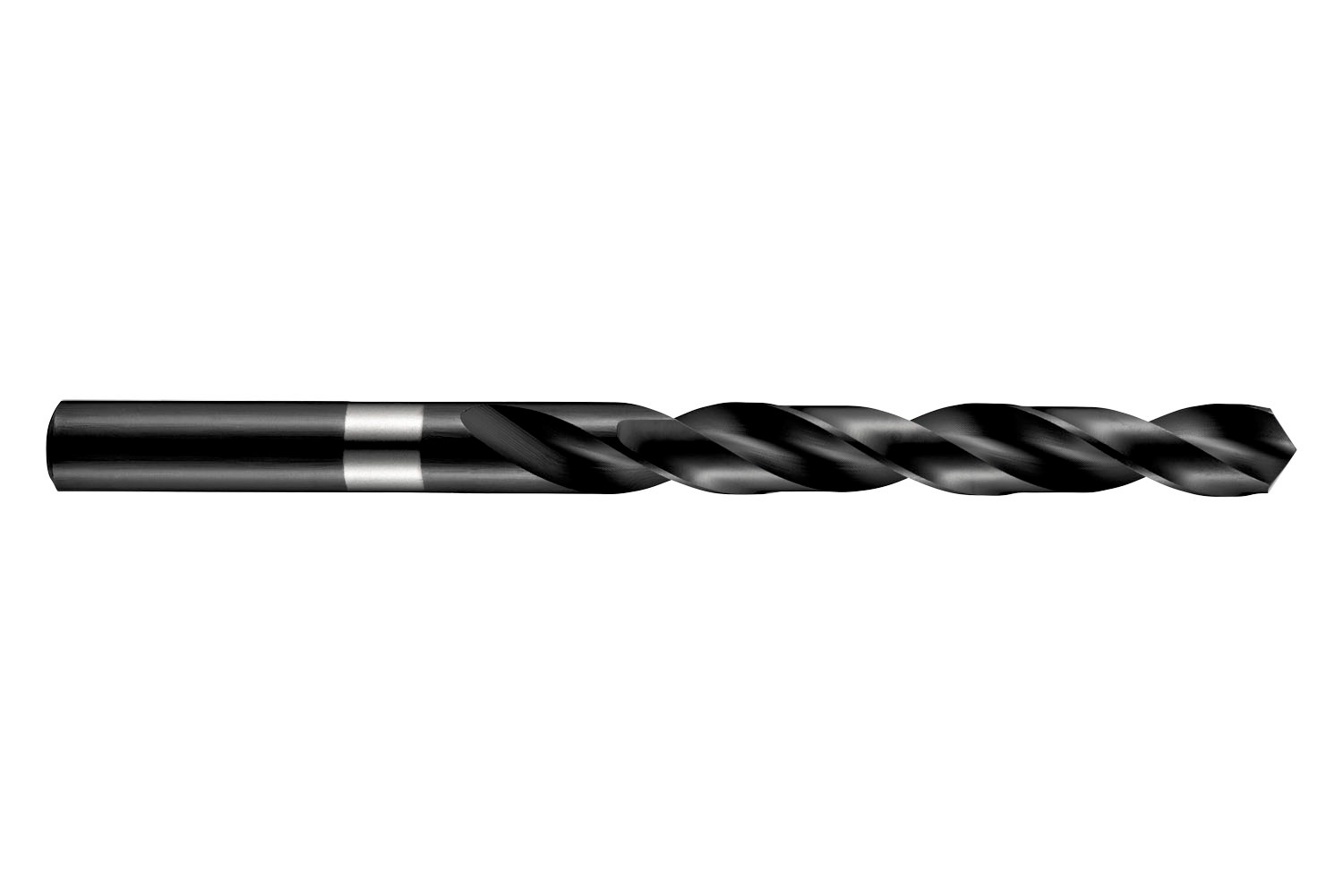

DORMER A1001.85 Jobber Drills
DORMER A1001.85 Jobber Drills - Image 2
DORMER A1001.85 Jobber Drills - Image 3
DORMER A1001.85 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 1.85mm with an overall length of 46mm and flute length of 22mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0059 kg
Dimensions Length 4.6cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760000496
Product number (SAP): 86008371
Ordering code ANSI: A1001.85
Gross weight – grams: 0.96
Cutting diameter – millimeter (DC): 1.85 mm
Cutting diameter – inch (DC): 0.0728 inch
Length chip flute – millimeter (LCF): 22 mm
Overall length – millimeter (OAL): 46 mm
Connection diameter – millimeter (DCON MS): 1.85 mm
Length chip flute – inch (LCF): 0.8661 inch
ISO: A1001.85

Brand

DORMER
