DORMER A10011.0 Jobber Drills

Product Code: A10011.0

$35.46$32.24 Ex. GST

Product Code: A10011.0 SKU A10011.0 Categories , ,

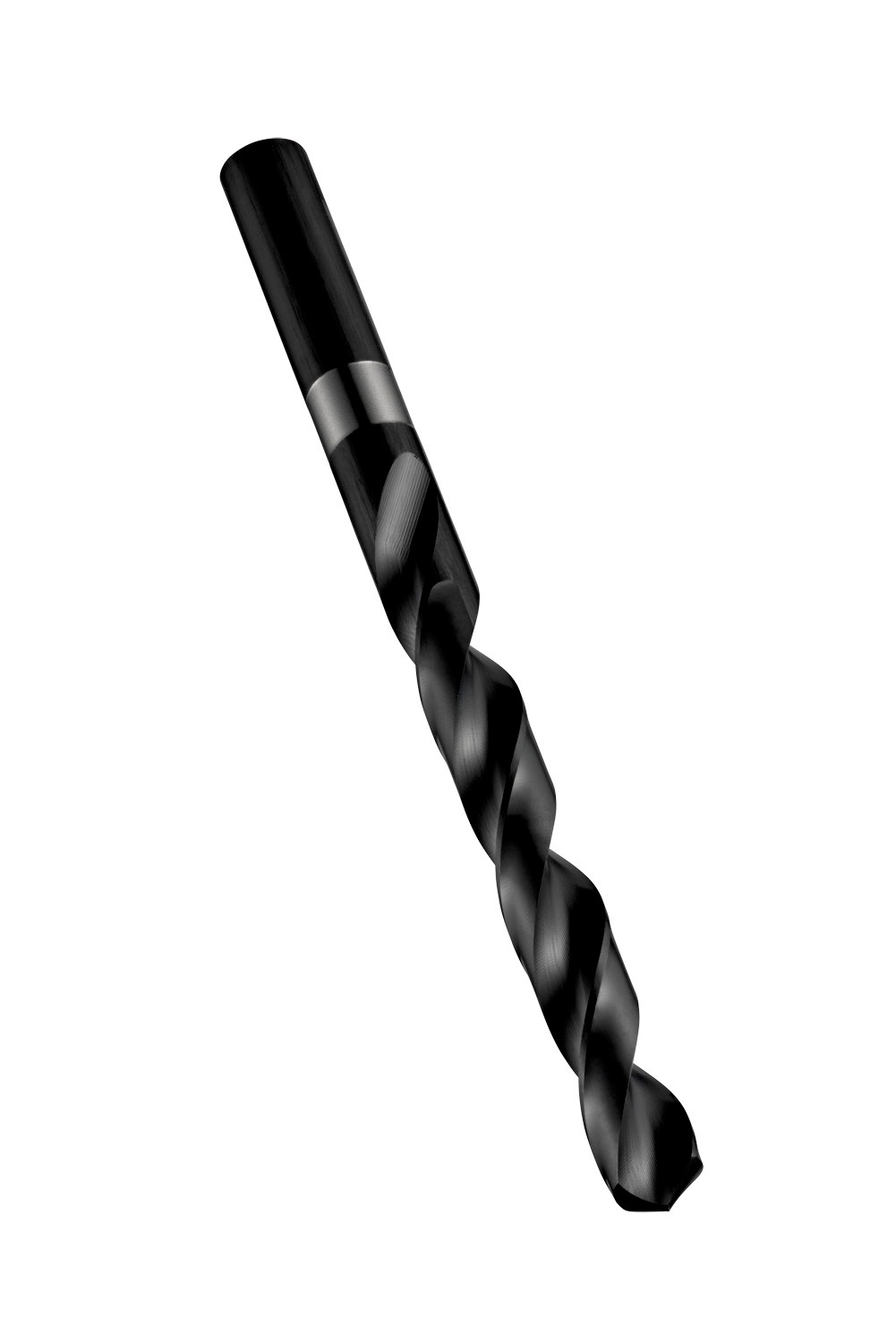

DORMER A10011.0 Jobber Drills
DORMER A10011.0 Jobber Drills - Image 2

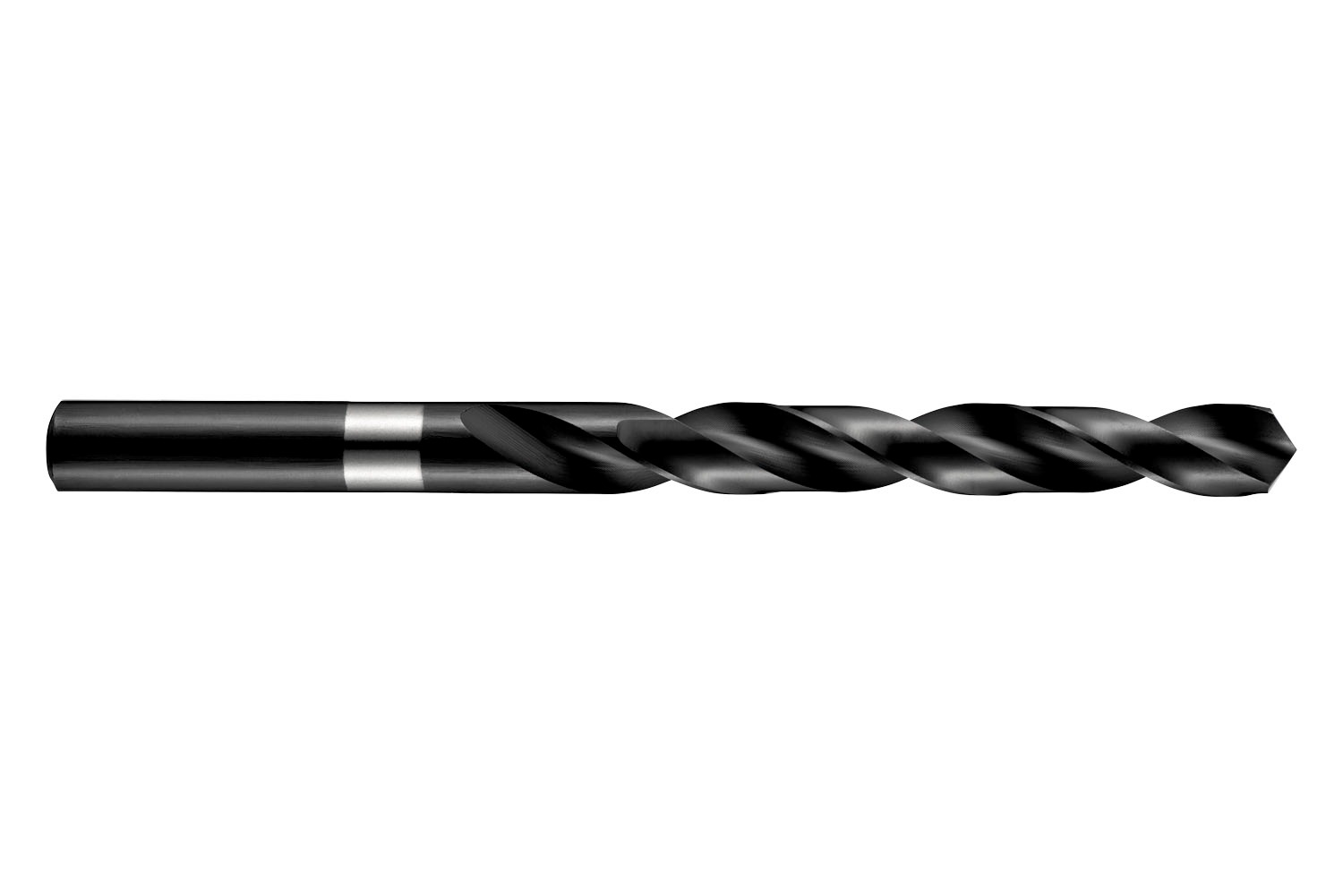

DORMER A10011.0 Jobber Drills - Image 3

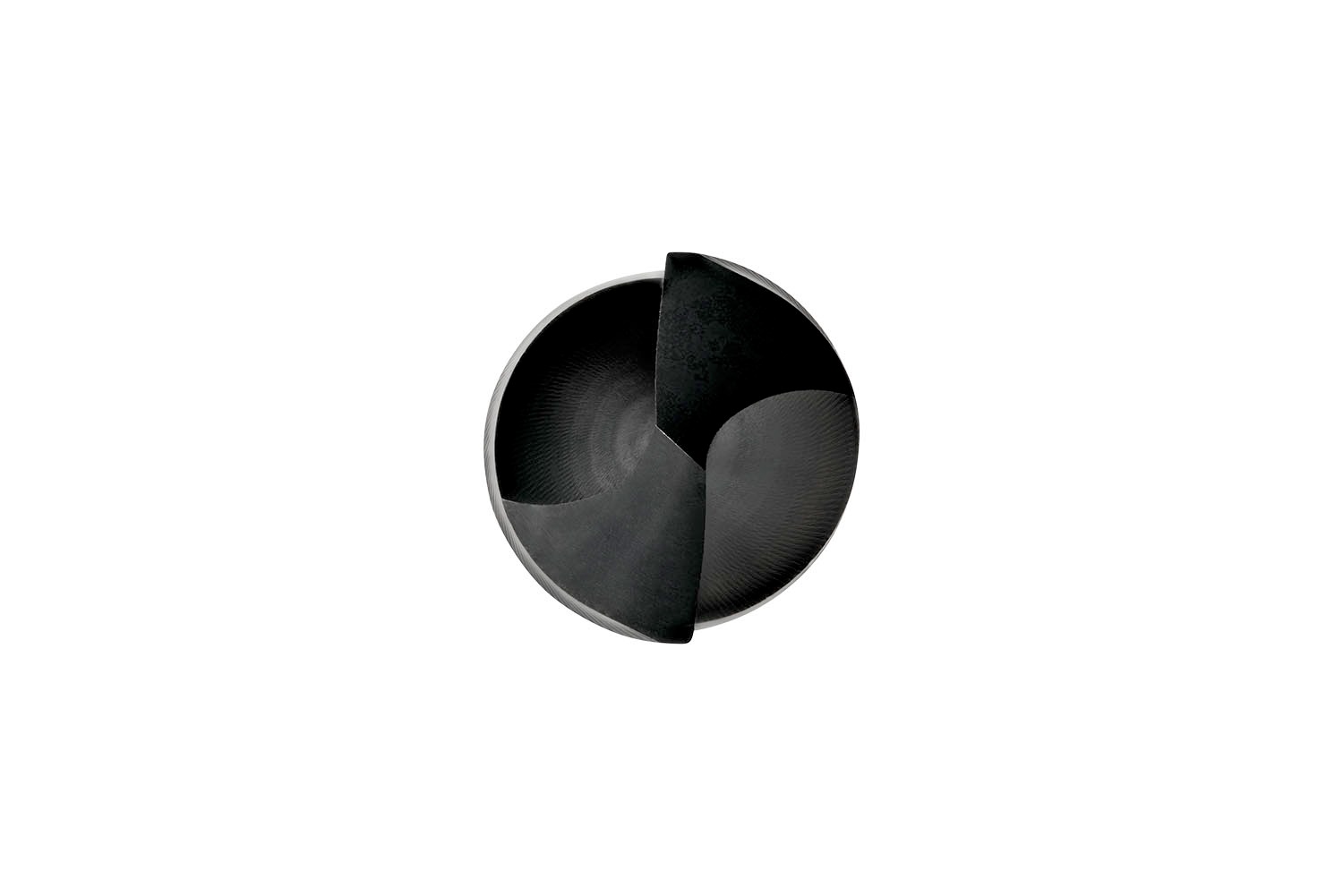

DORMER A10011.0 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 11mm with an overall length of 142mm and flute length of 94mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0344 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760000649
Product number (SAP): 86008392
Ordering code ANSI: A10011.0
Gross weight – grams: 76.8
Cutting diameter – millimeter (DC): 11 mm
Cutting diameter – inch (DC): 0.4331 inch
Length chip flute – millimeter (LCF): 94 mm
Overall length – millimeter (OAL): 142 mm
Connection diameter – millimeter (DCON MS): 11 mm
Length chip flute – inch (LCF): 3.7008 inch
ISO: A10011.0

Brand

DORMER
