DORMER A10013.2 Jobber Drills

Product Code: A10013.2

$71.95$65.41 Ex. GST

Product Code: A10013.2 SKU A10013.2 Categories , ,

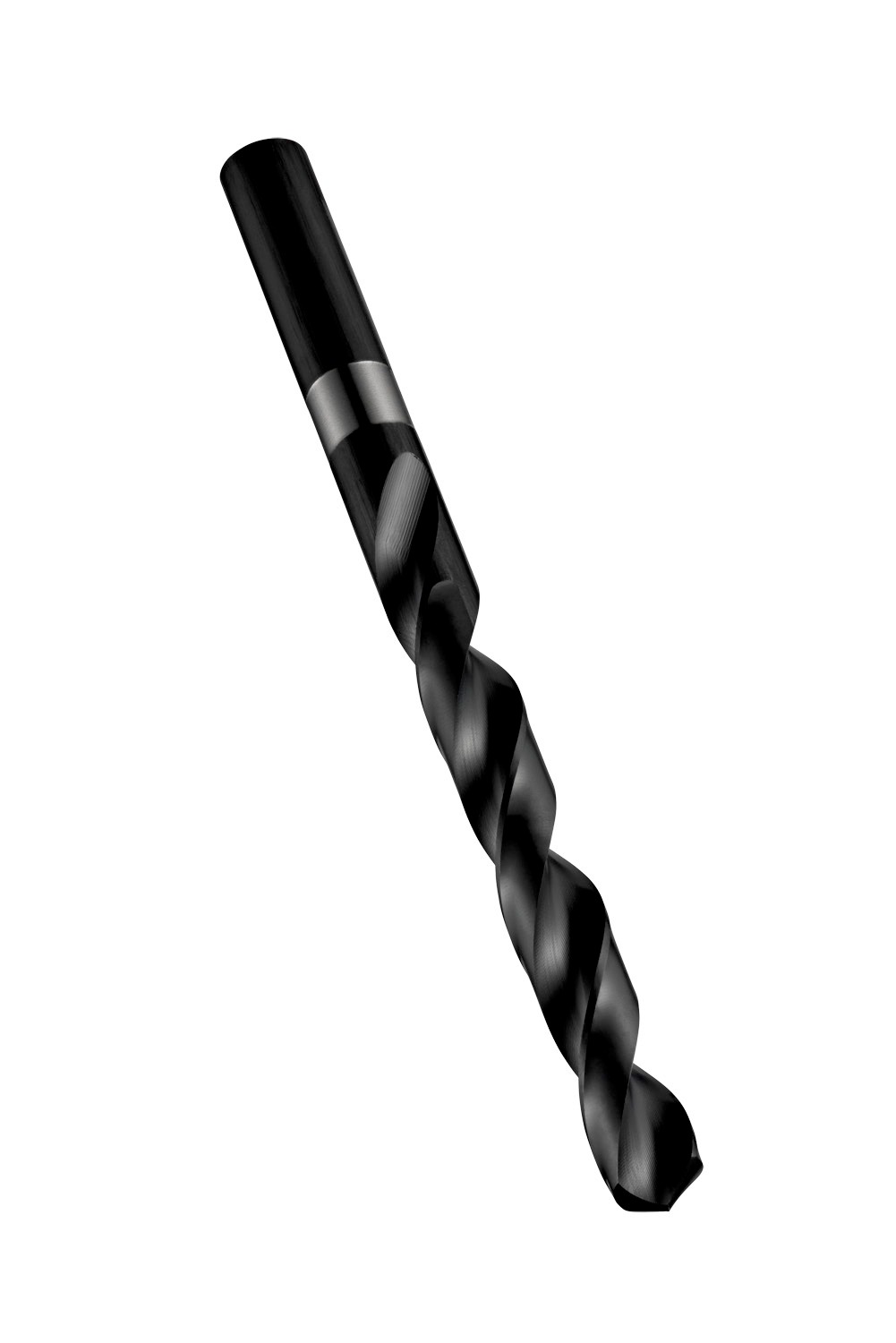

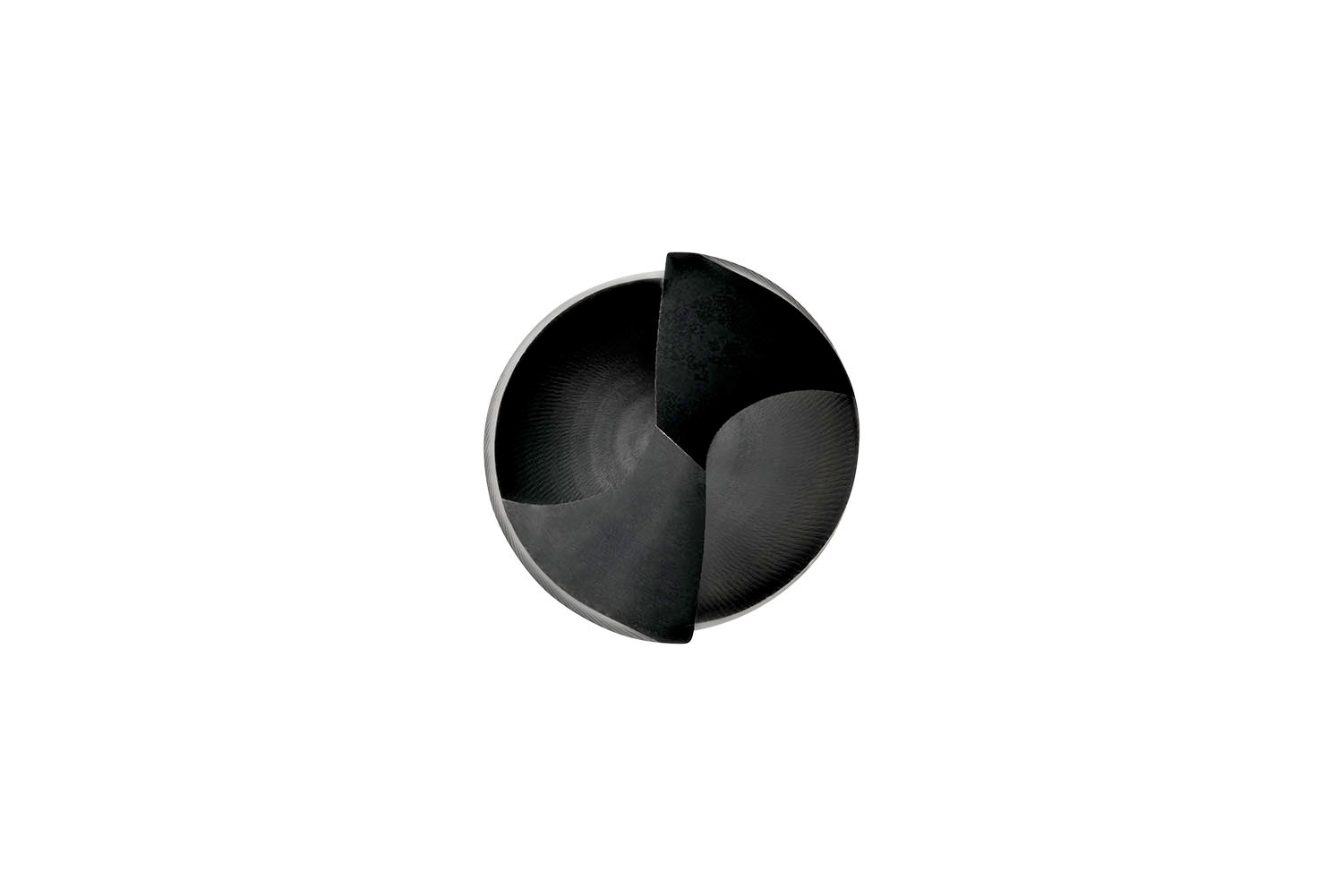

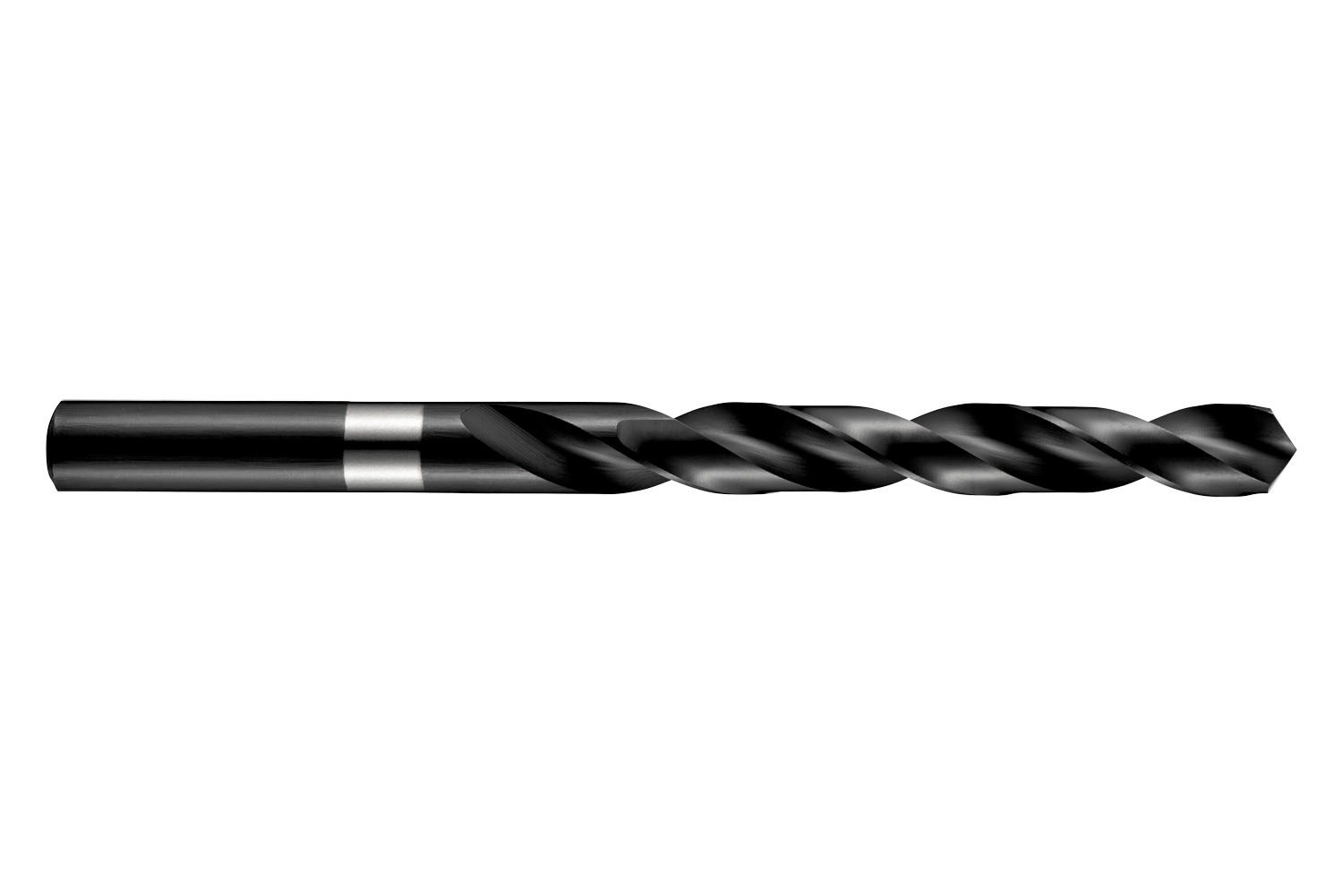

DORMER A10013.2 Jobber Drills
DORMER A10013.2 Jobber Drills - Image 2
DORMER A10013.2 Jobber Drills - Image 3
DORMER A10013.2 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 13.2mm with an overall length of 151mm and flute length of 101mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0699 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760000953
Product number (SAP): 86008421
Ordering code ANSI: A10013.2
Gross weight – grams: 117
Cutting diameter – millimeter (DC): 13.2 mm
Cutting diameter – inch (DC): 0.5197 inch
Length chip flute – millimeter (LCF): 101 mm
Overall length – millimeter (OAL): 151 mm
Connection diameter – millimeter (DCON MS): 13.2 mm
Length chip flute – inch (LCF): 3.9764 inch
ISO: A10013.2

Brand

DORMER
