DORMER A1002.6 Jobber Drills

Product Code: A1002.6

$4.82$4.38 Ex. GST

Product Code: A1002.6 SKU A1002.6 Categories , ,

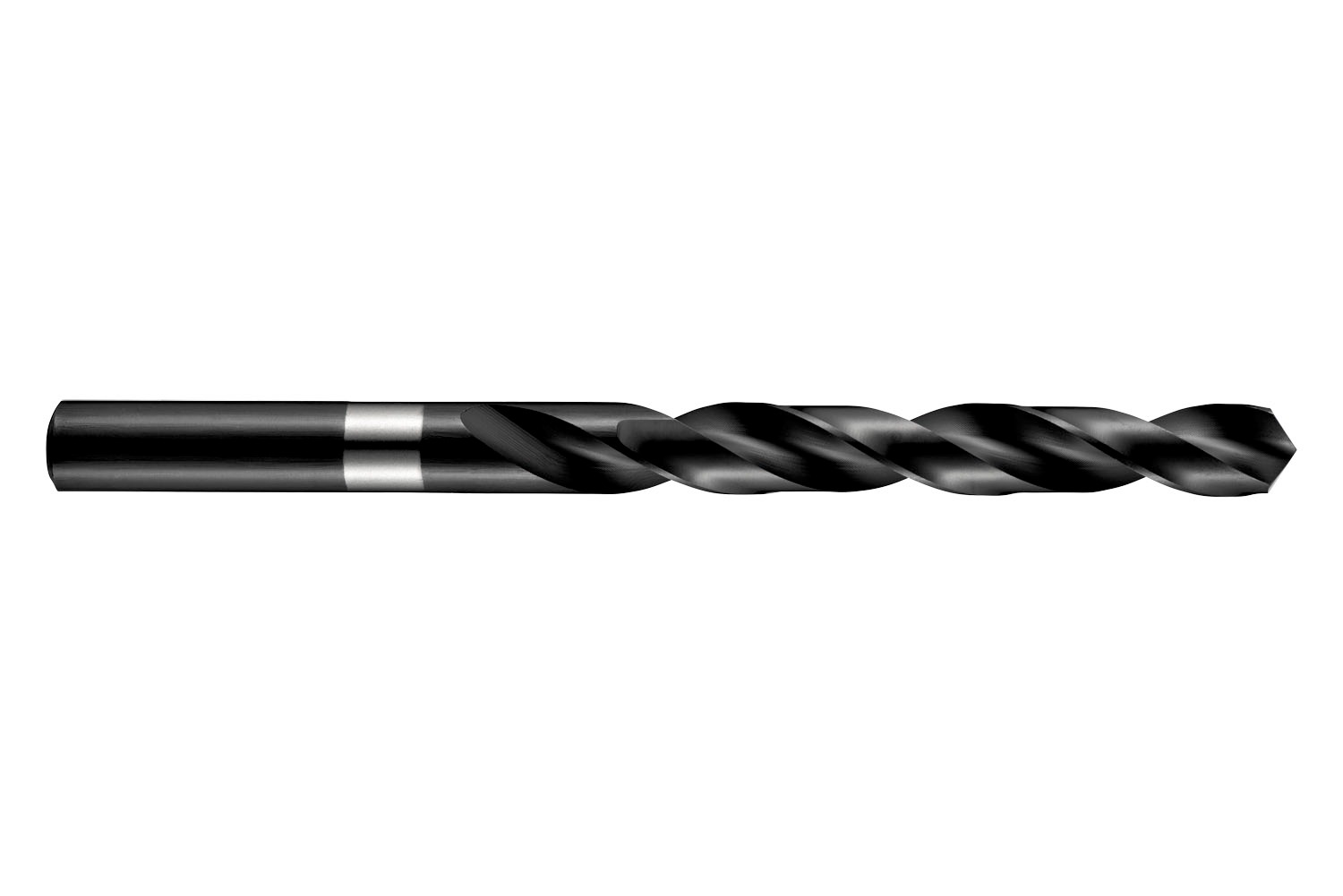

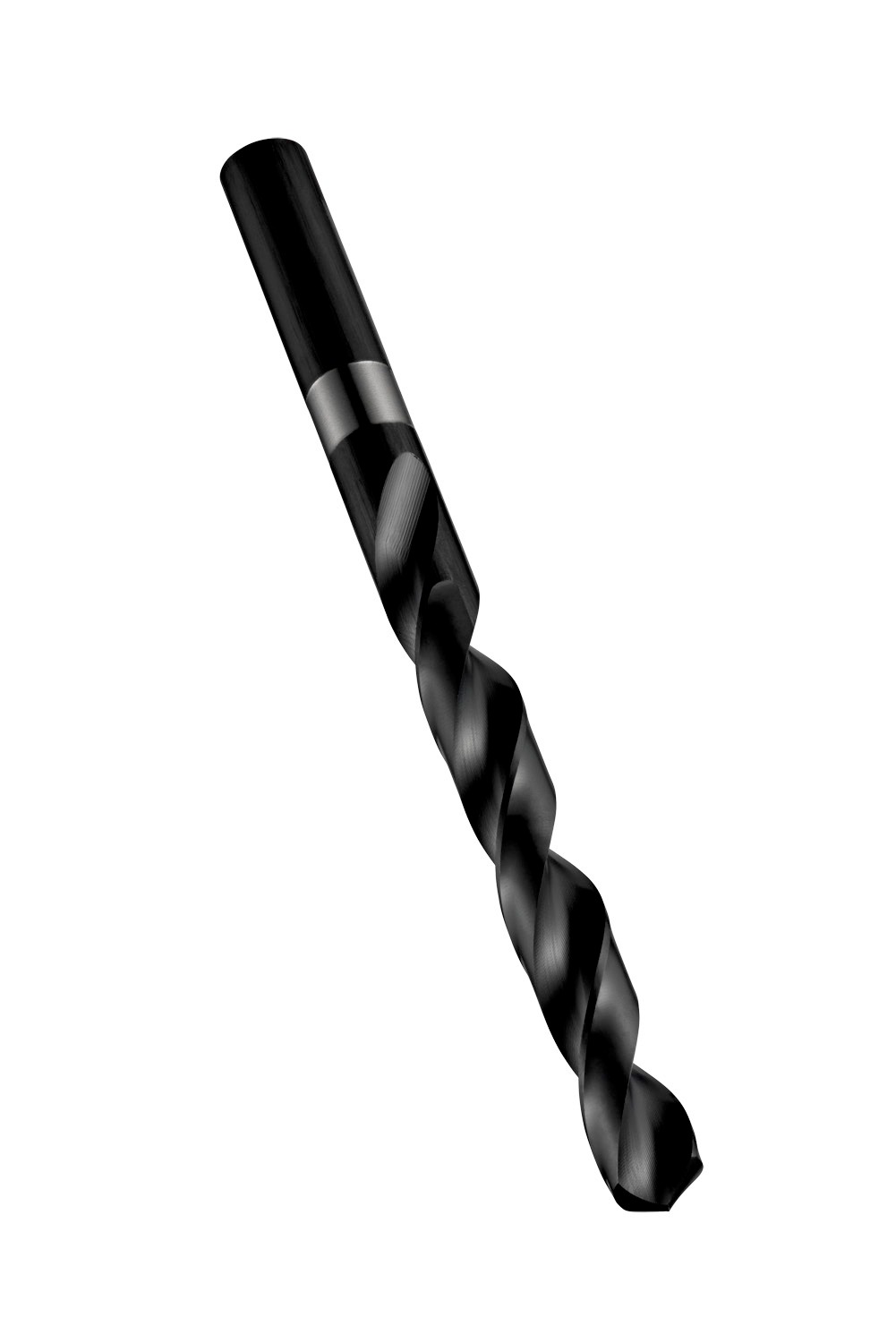

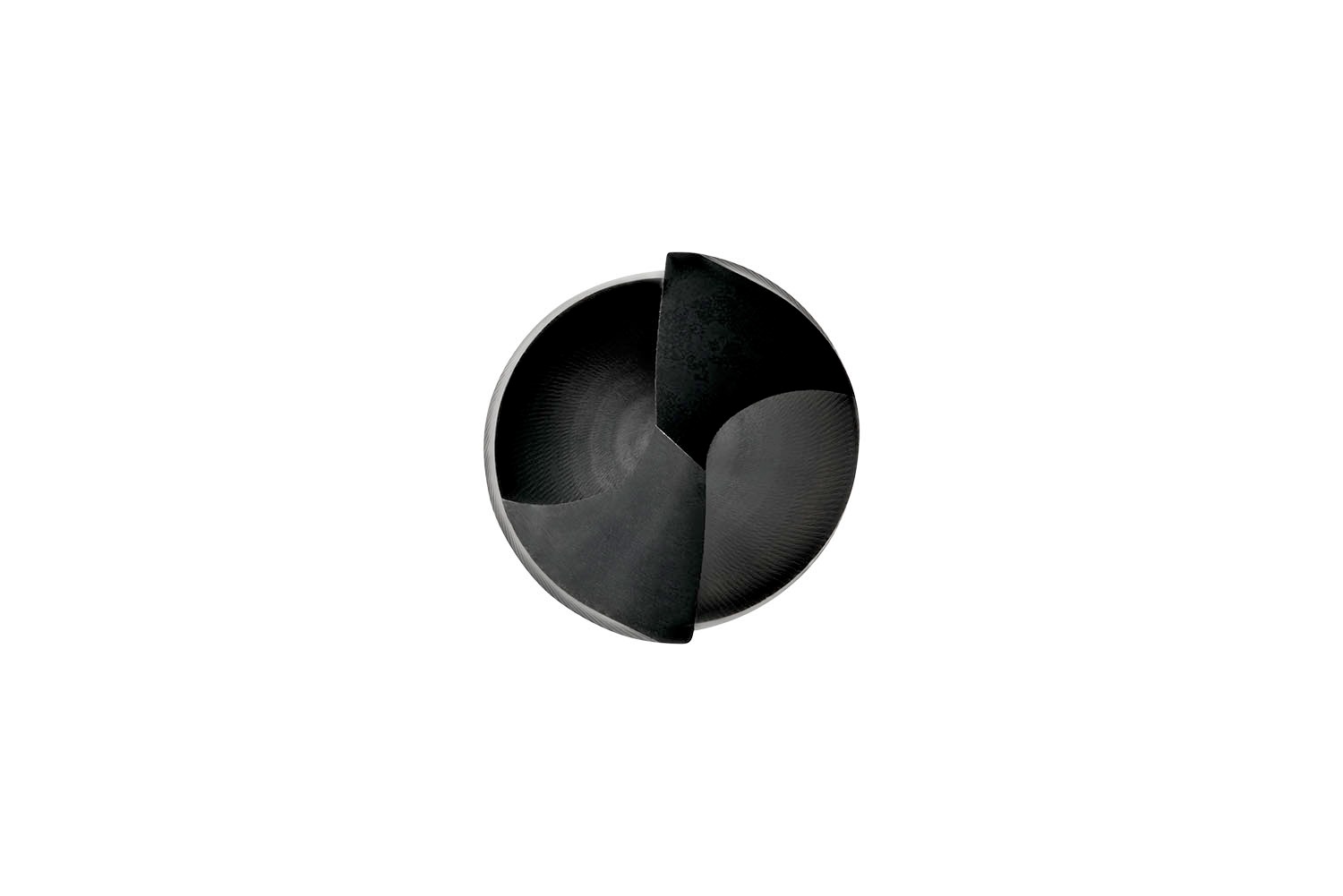

DORMER A1002.6 Jobber Drills
DORMER A1002.6 Jobber Drills - Image 2
DORMER A1002.6 Jobber Drills - Image 3
DORMER A1002.6 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 2.6mm with an overall length of 57mm and flute length of 30mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0047 kg
Dimensions Length 5.7cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760001455
Product number (SAP): 86008467
Ordering code ANSI: A1002.6
Gross weight – grams: 2.15
Cutting diameter – millimeter (DC): 2.6 mm
Cutting diameter – inch (DC): 0.1024 inch
Length chip flute – millimeter (LCF): 30 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 2.6 mm
Length chip flute – inch (LCF): 1.1811 inch
ISO: A1002.6

Brand

DORMER
