DORMER A100N1 Jobber Drills

Product Code: A100N1

$12.57$11.43 Ex. GST

Product Code: A100N1 SKU A100N1 Categories , ,

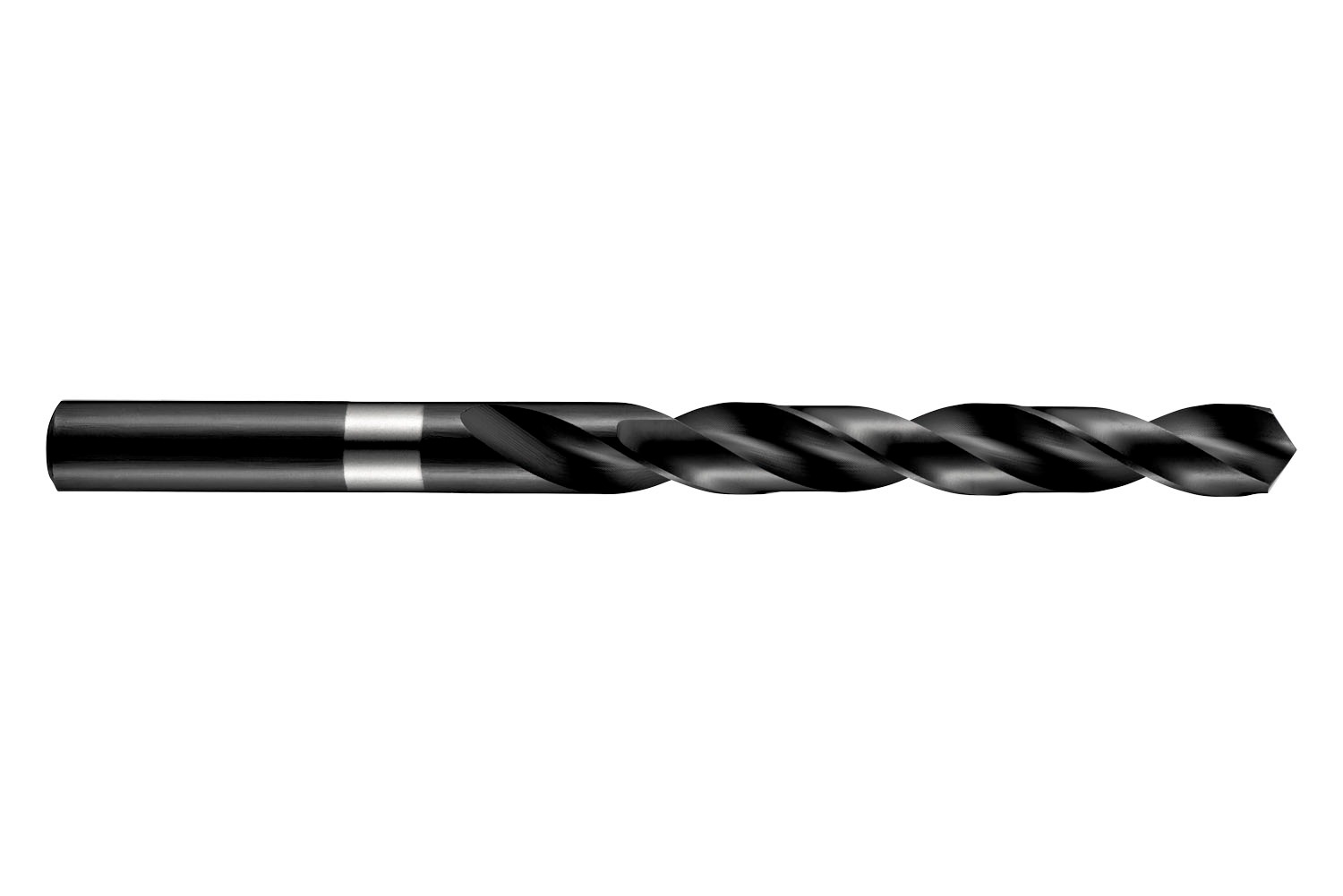

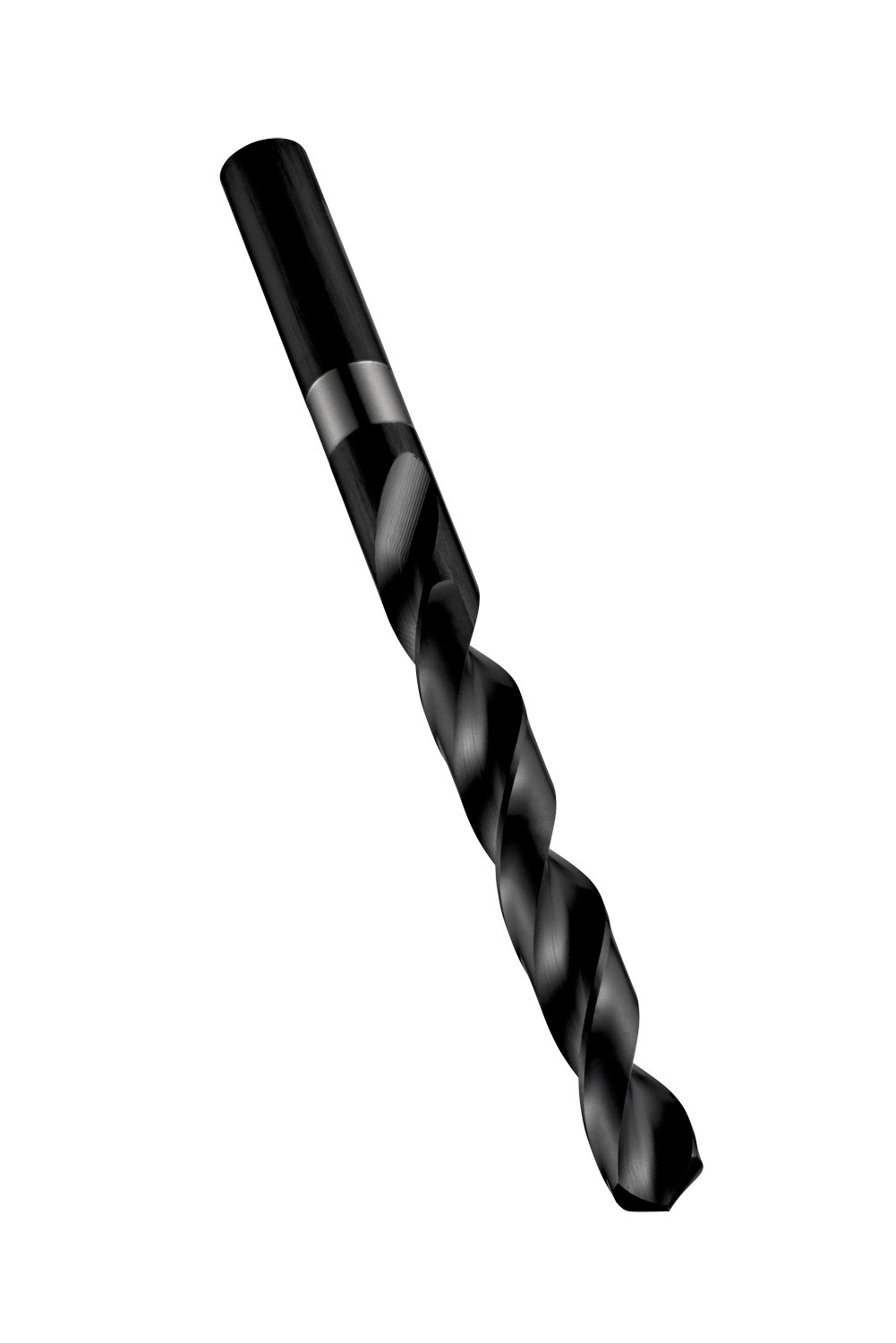

DORMER A100N1 Jobber Drills
DORMER A100N1 Jobber Drills - Image 2
DORMER A100N1 Jobber Drills - Image 3

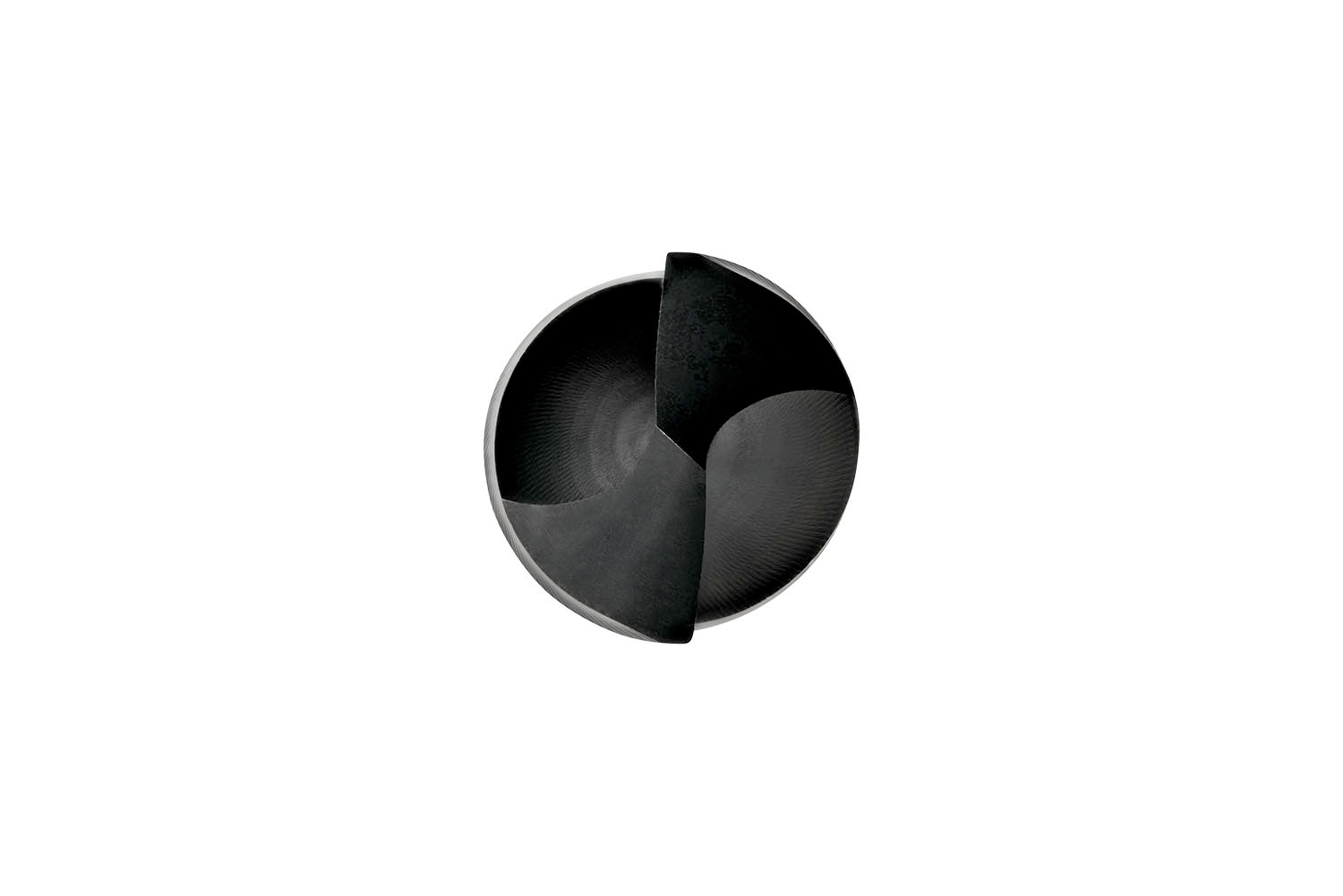

DORMER A100N1 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.2280″ (N1) with an overall length of 93mm and flute length of 57mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0122 kg
Dimensions Length 9.3cm x Width cm x Depth cm
barcode

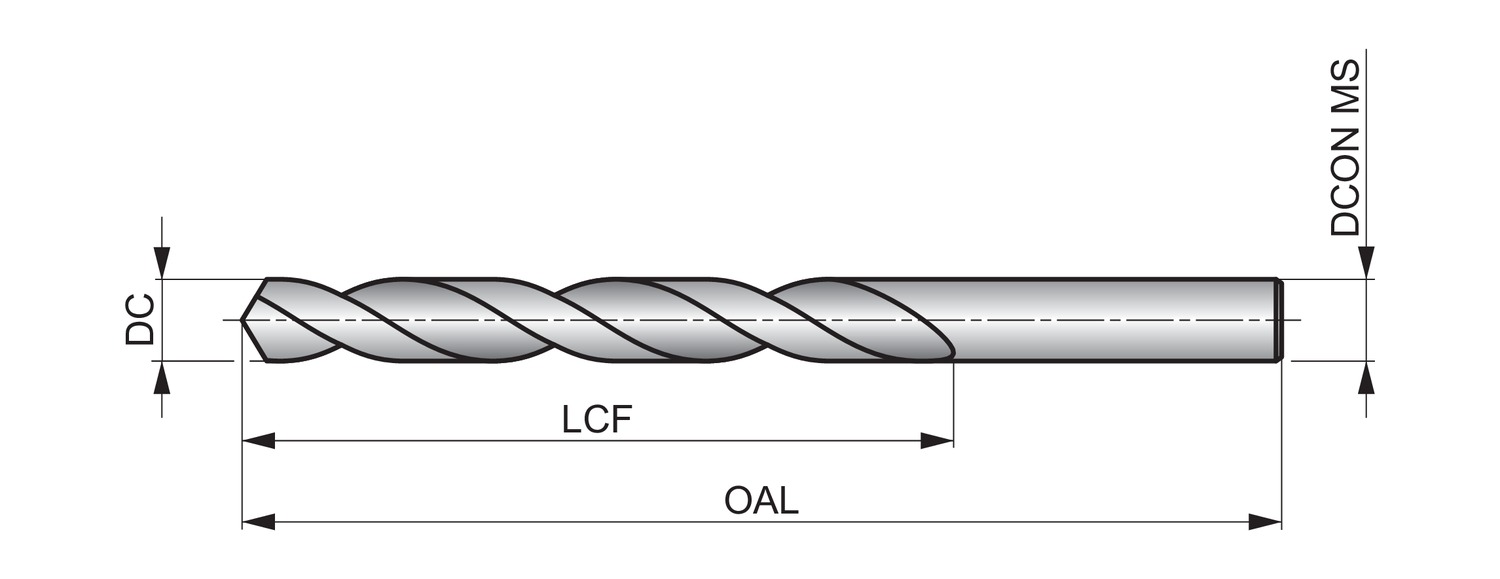

Additional Information

Description: Value
EAN number: 7320760028704
Product number (SAP): 86008602
Ordering code ANSI: A100N1
Gross weight – grams: 14.58
Cutting diameter (wire gauge size) (DC): N1
Cutting diameter – millimeter (DC): 5.79 mm
Cutting diameter – inch (DC): 0.228 inch
Length chip flute – millimeter (LCF): 57 mm
Overall length – millimeter (OAL): 93 mm
Connection diameter – millimeter (DCON MS): 5.79 mm
Length chip flute – inch (LCF): 2.2441 inch
ISO: A100N1

Brand

DORMER
