DORMER A100N22 Jobber Drills

Product Code: A100N22

$7.82$7.11 Ex. GST

Product Code: A100N22 SKU A100N22 Categories , ,

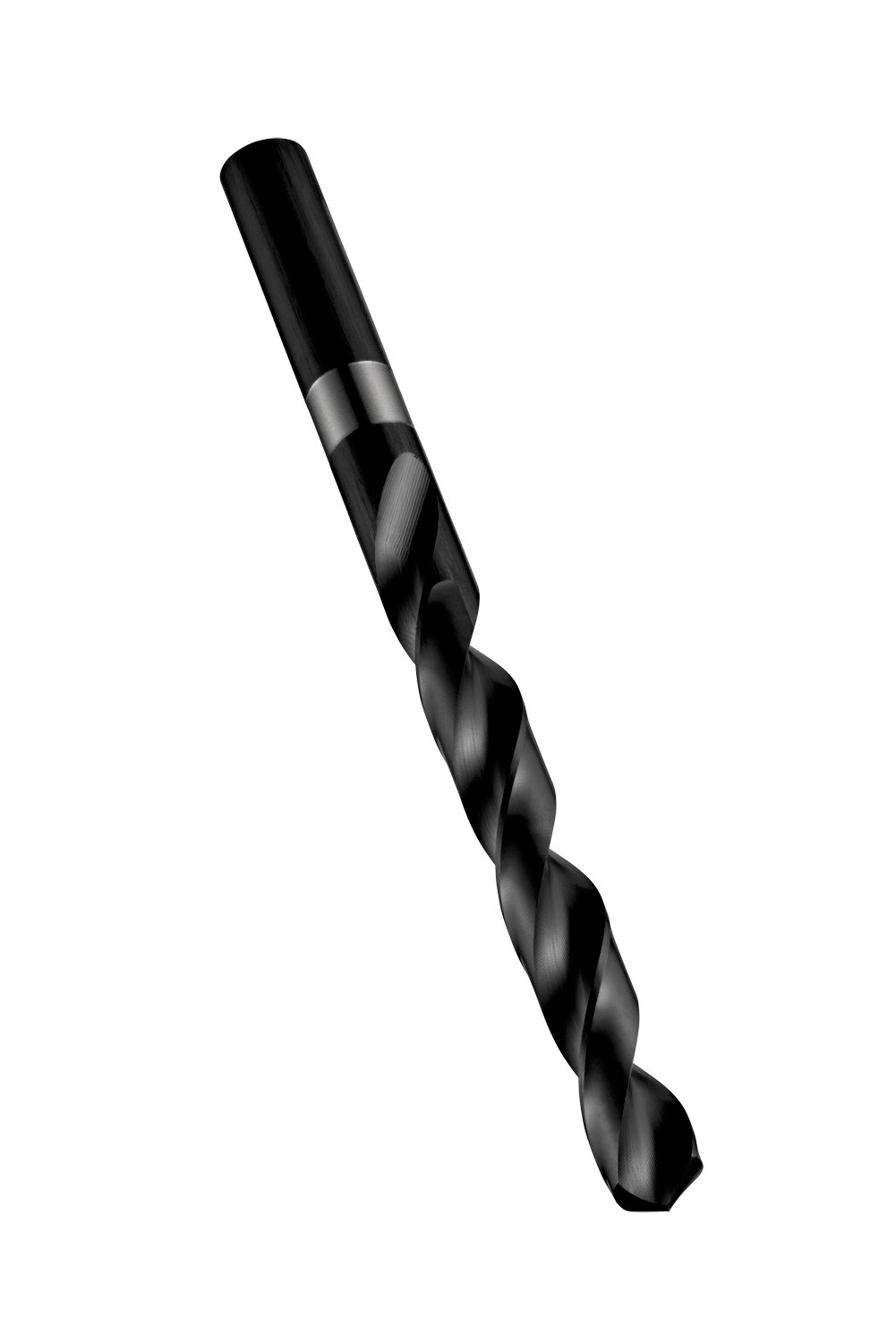

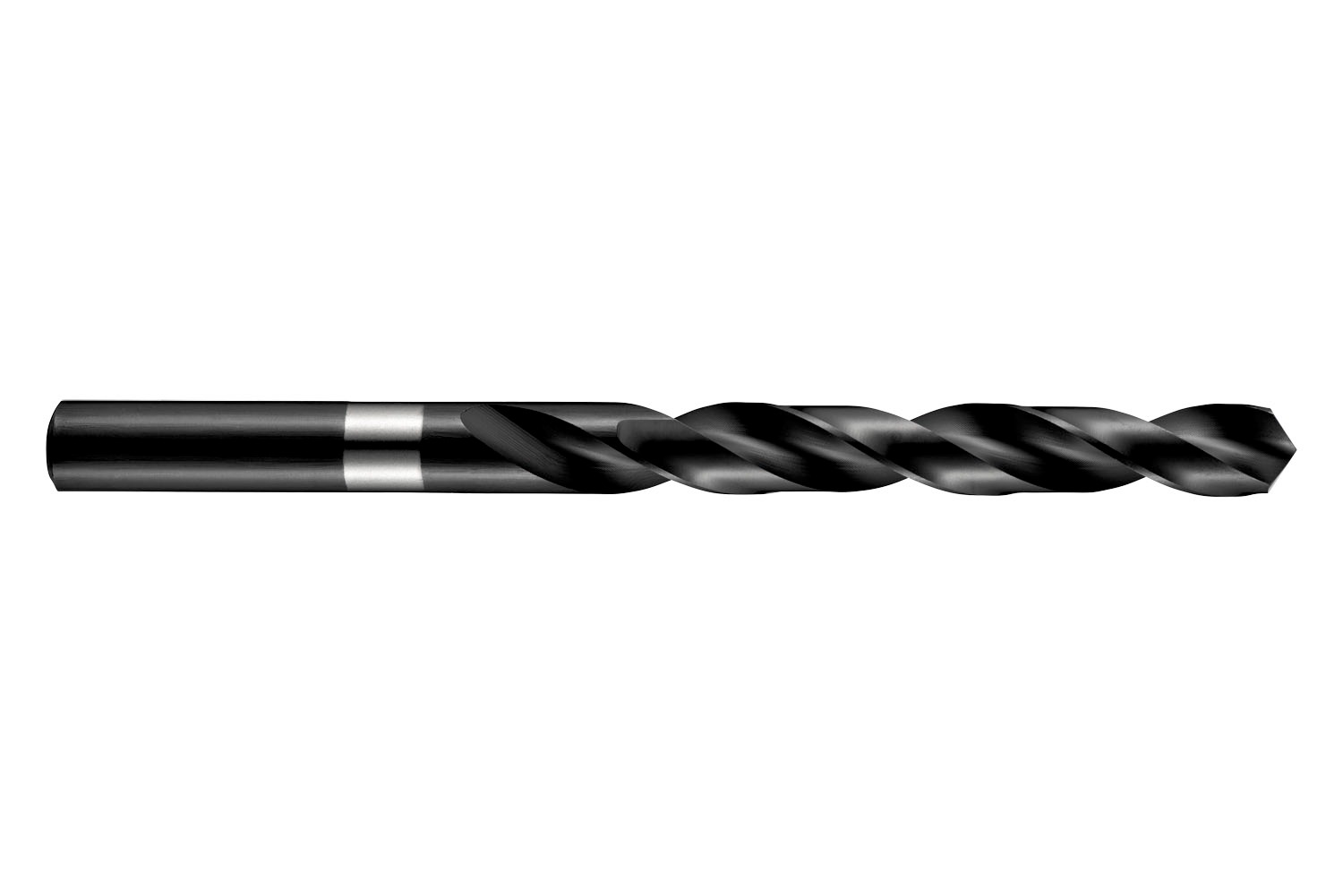

DORMER A100N22 Jobber Drills
DORMER A100N22 Jobber Drills - Image 2
DORMER A100N22 Jobber Drills - Image 3
DORMER A100N22 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.1570″ (N22) with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0076 kg
Dimensions Length 7.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760028841
Product number (SAP): 86008616
Ordering code ANSI: A100N22
Gross weight – grams: 6.16

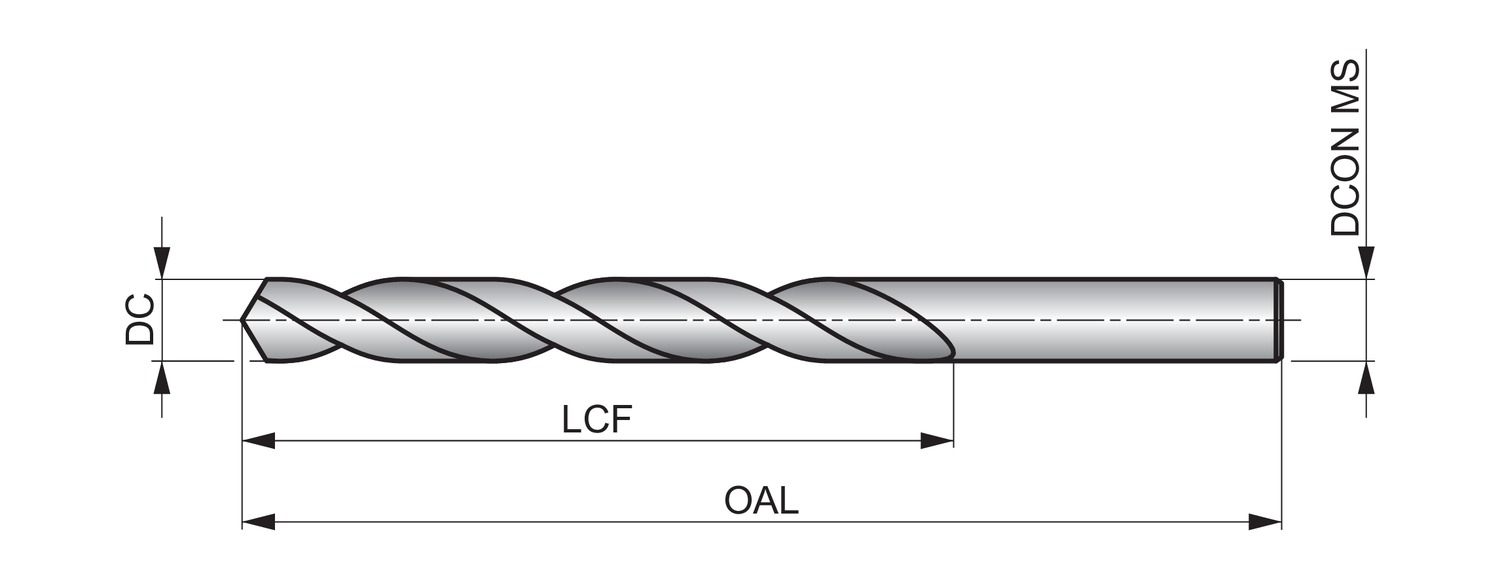

Cutting diameter (wire gauge size) (DC): N22
Cutting diameter – millimeter (DC): 3.99 mm
Cutting diameter – inch (DC): 0.157 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 3.99 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: A100N22

Brand

DORMER
