DORMER A100N23 Jobber Drills

Product Code: A100N23

$7.65$6.95 Ex. GST

Product Code: A100N23 SKU A100N23 Categories , ,

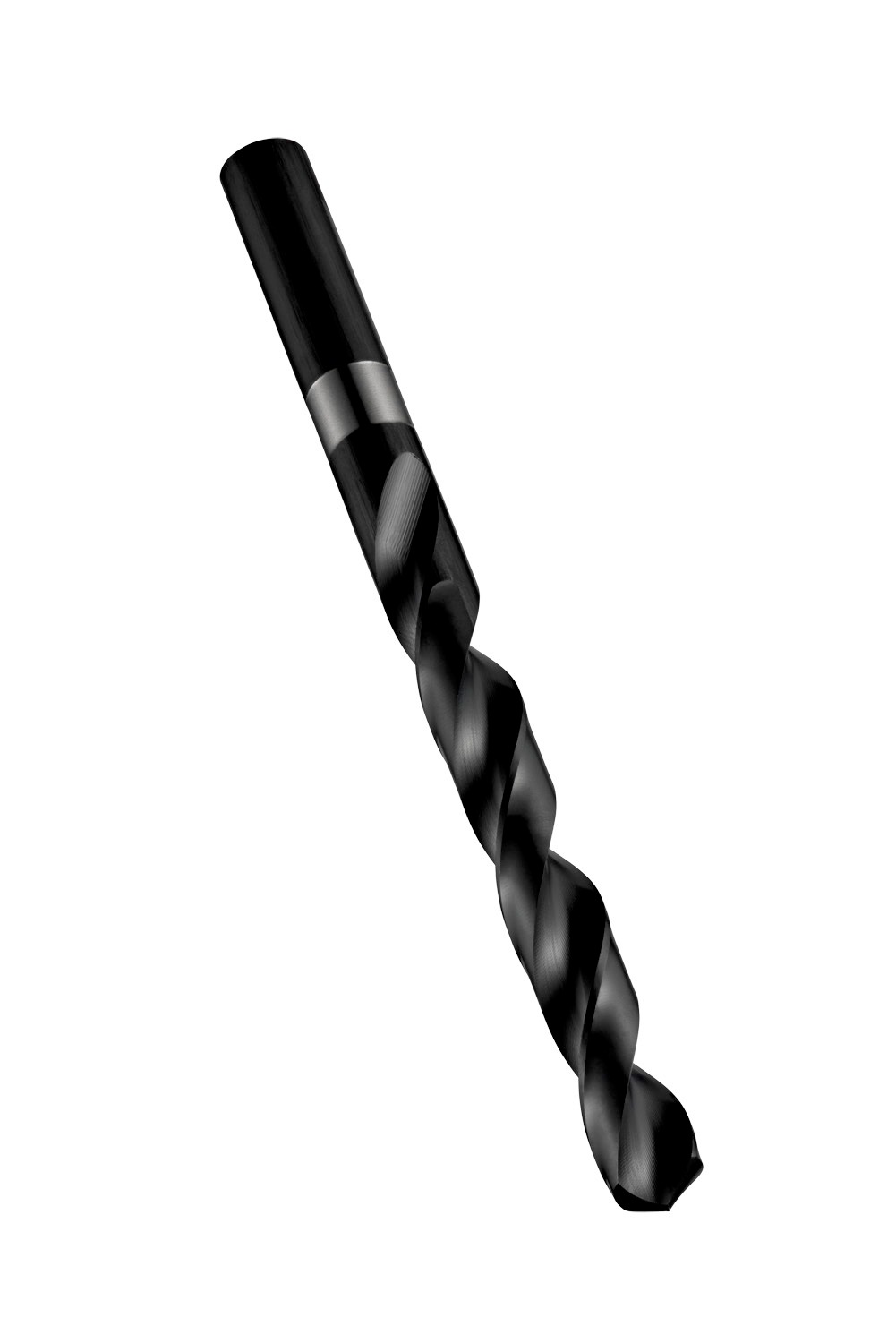

DORMER A100N23 Jobber Drills

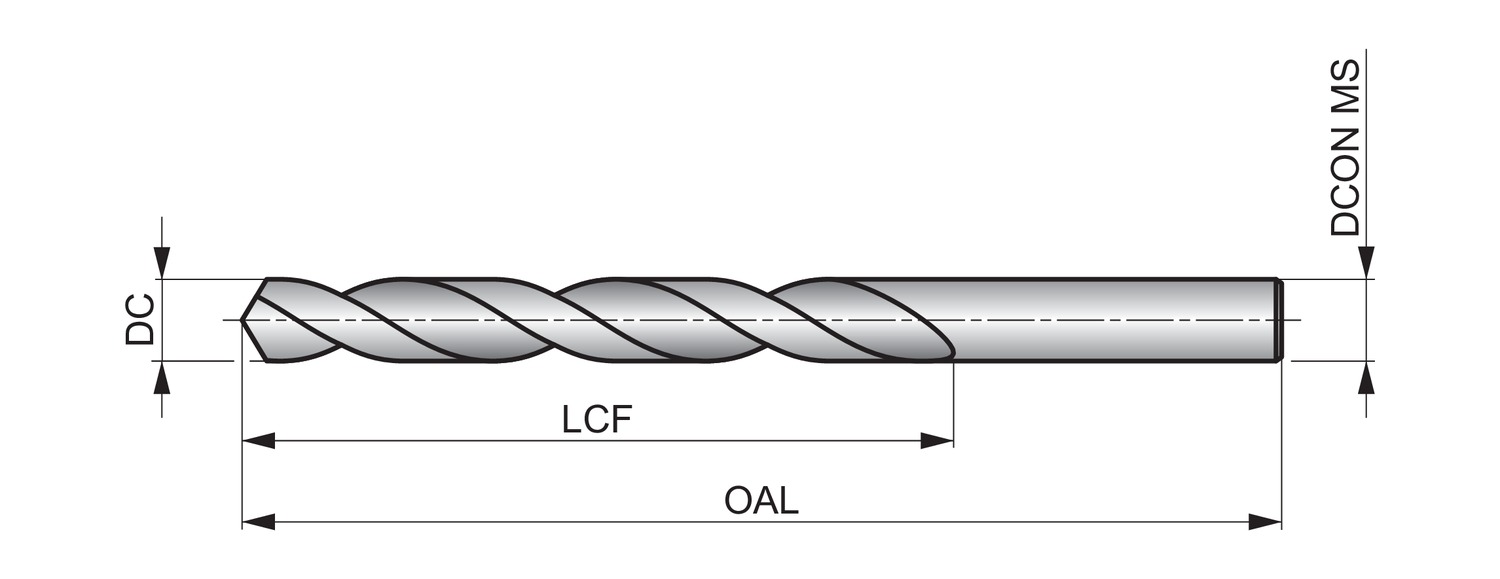

DORMER A100N23 Jobber Drills - Image 2

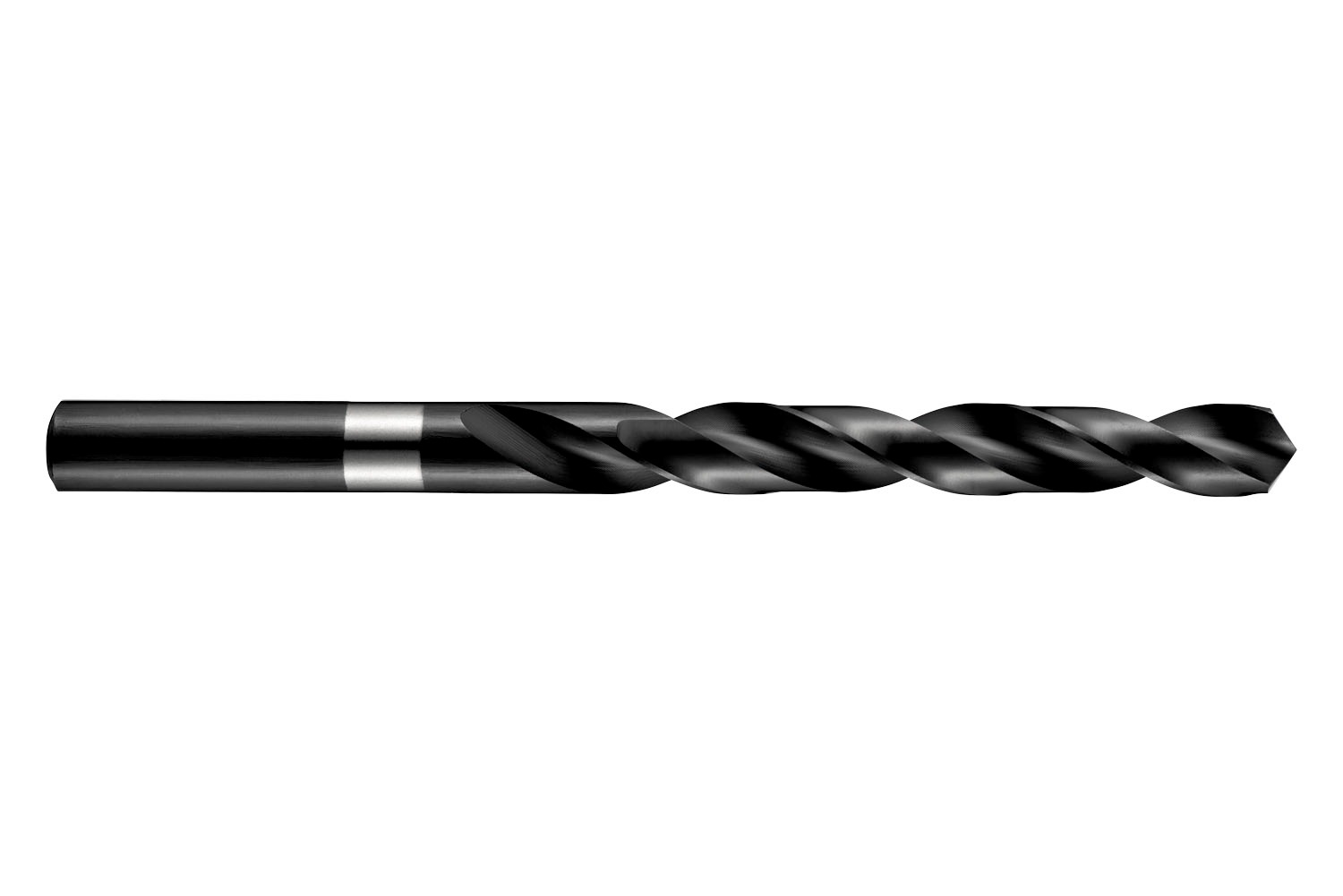

DORMER A100N23 Jobber Drills - Image 3

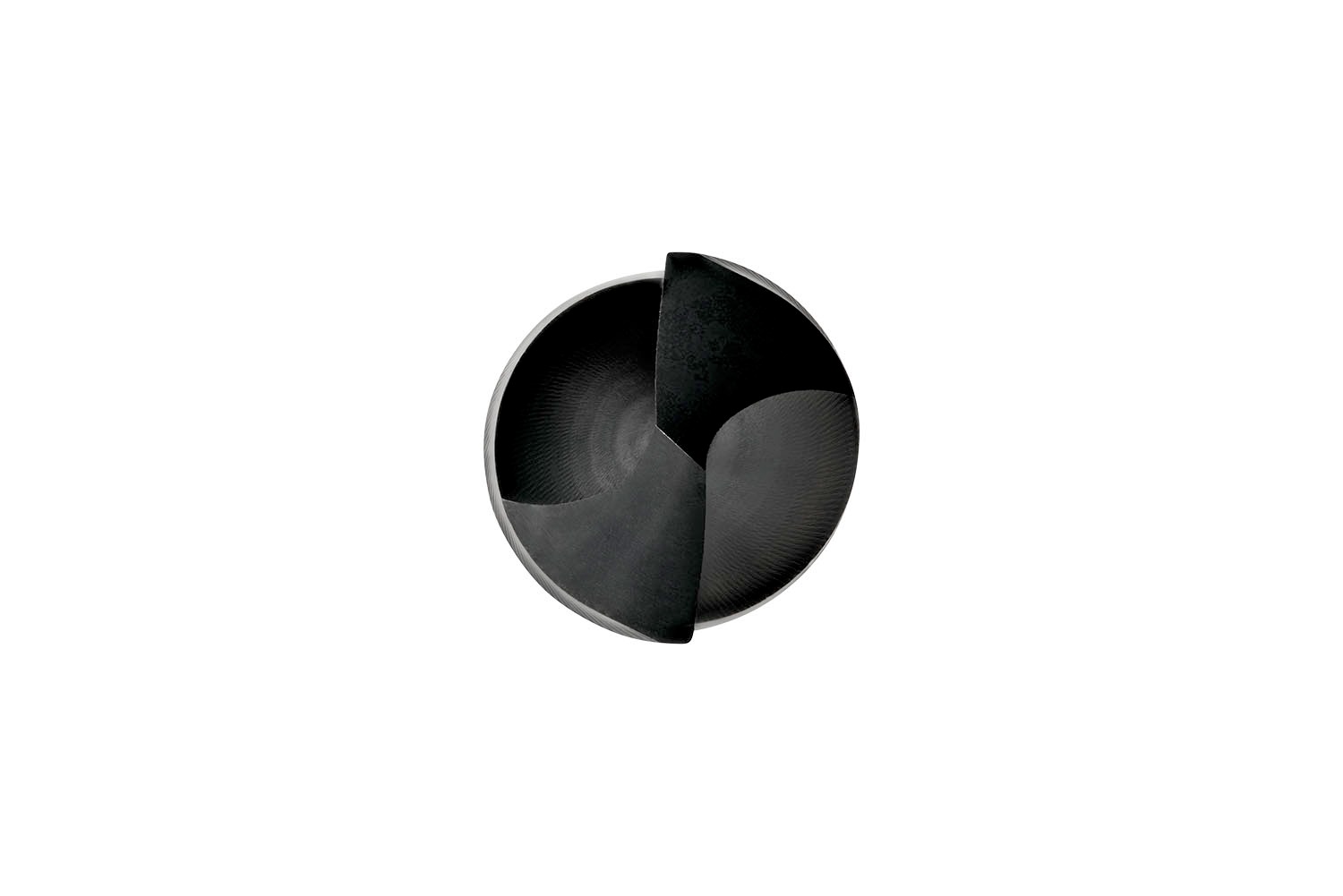

DORMER A100N23 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.1540″ (N23) with an overall length of 75mm and flute length of 43mm according to DIN 338 standard with 118° point angle, HSS with steam tempered finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0074 kg
Dimensions Length 7.5cm x Width cm x Depth cm
barcode
Additional Information

Description: Value
EAN number: 7320760028858
Product number (SAP): 86008617
Ordering code ANSI: A100N23
Gross weight – grams: 6.08
Cutting diameter (wire gauge size) (DC): N23
Cutting diameter – millimeter (DC): 3.91 mm
Cutting diameter – inch (DC): 0.154 inch
Length chip flute – millimeter (LCF): 43 mm
Overall length – millimeter (OAL): 75 mm
Connection diameter – millimeter (DCON MS): 3.91 mm
Length chip flute – inch (LCF): 1.6929 inch
ISO: A100N23

Brand

DORMER
