DORMER A100N63 Jobber Drills

Product Code: A100N63

$9.80$8.91 Ex. GST

Product Code: A100N63 SKU A100N63 Categories , ,

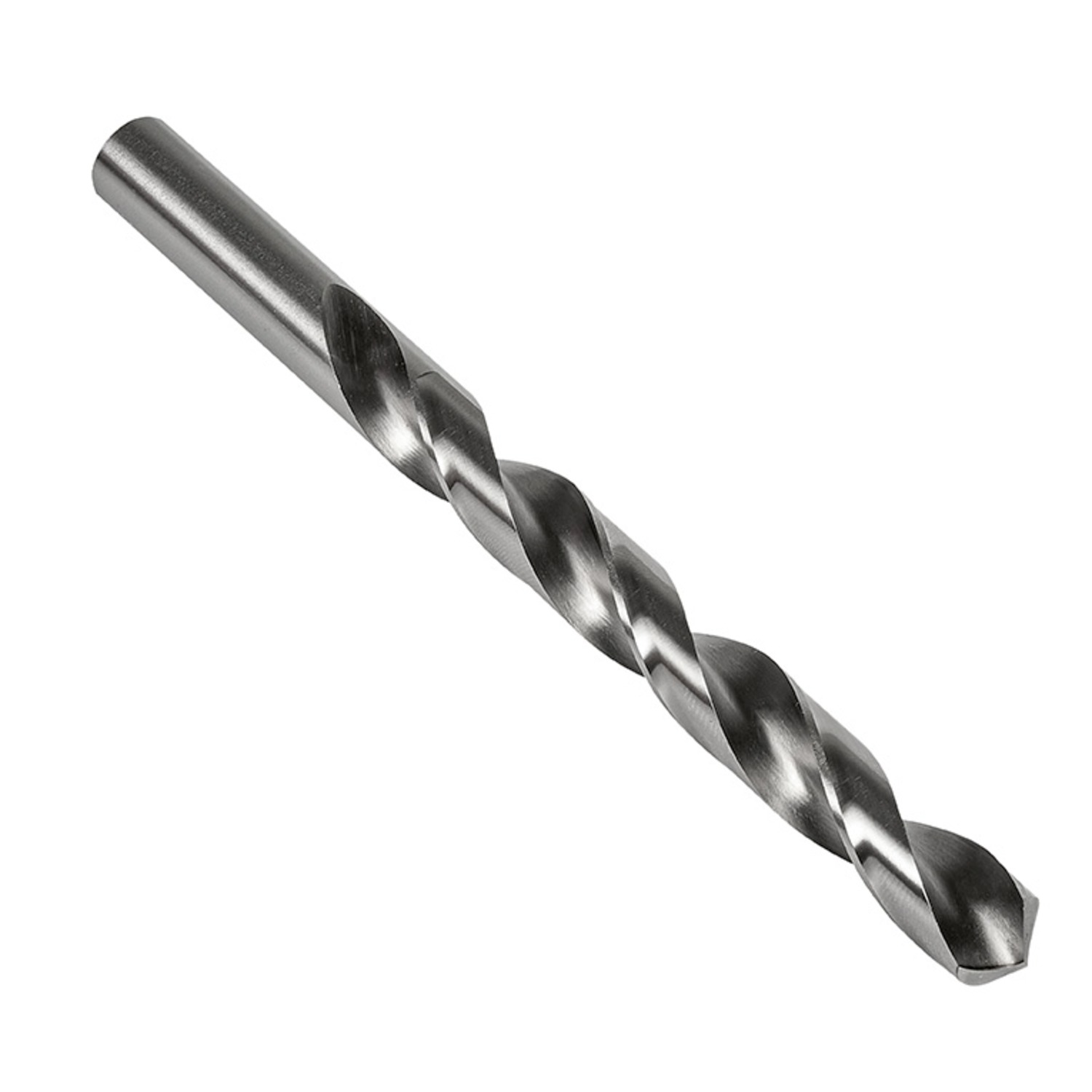

DORMER A100N63 Jobber Drills
DORMER A100N63 Jobber Drills - Image 2

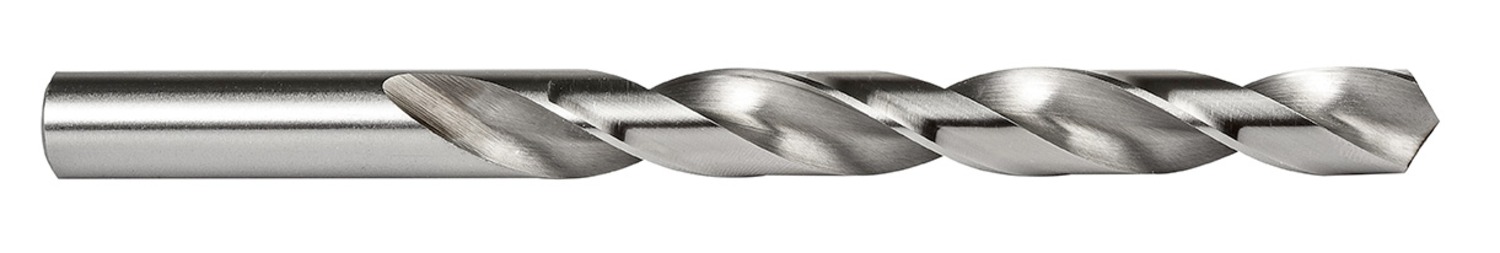

DORMER A100N63 Jobber Drills - Image 3

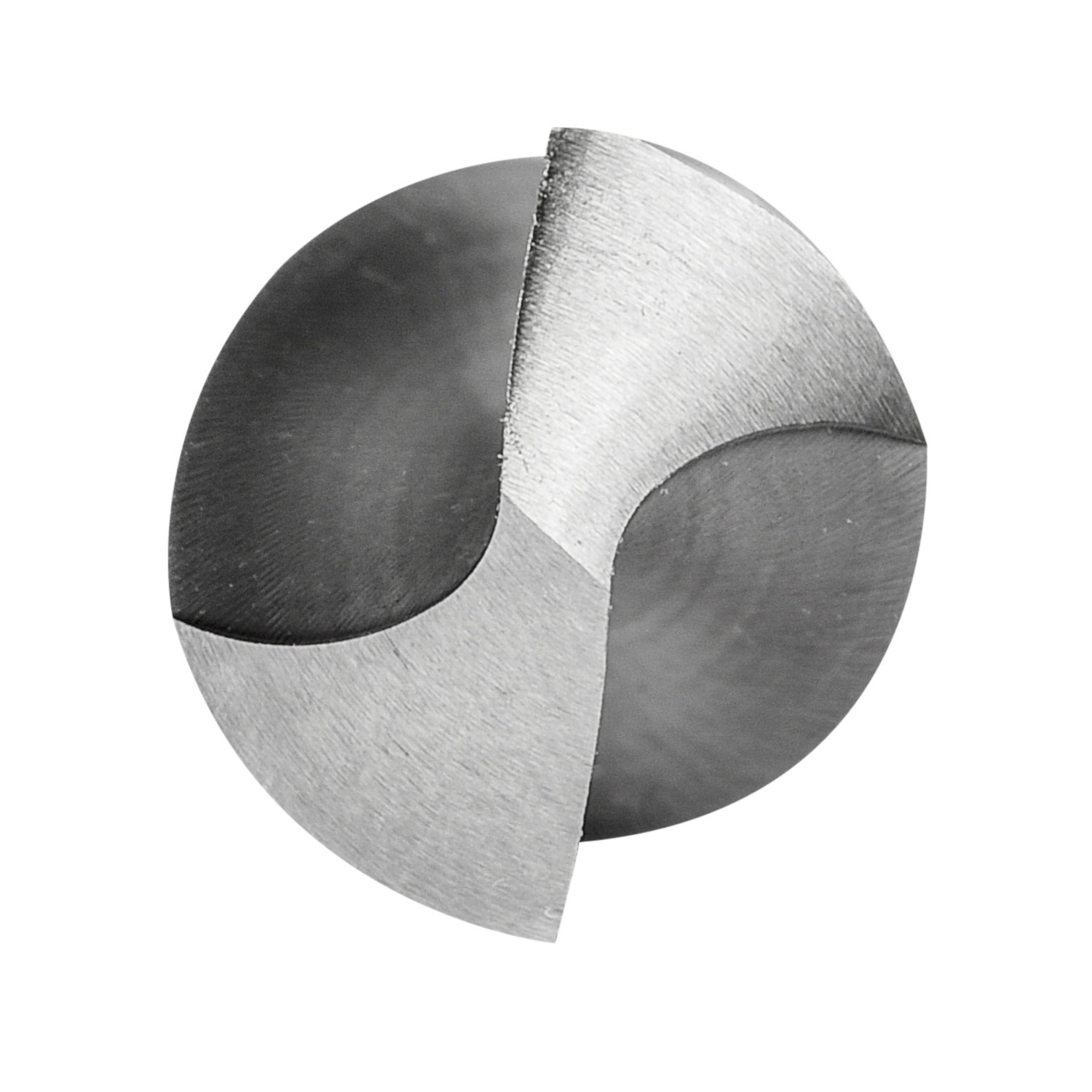

DORMER A100N63 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.0370″ (N63) with an overall length of 32mm and flute length of 11mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0095 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760029299
Product number (SAP): 86008661
Ordering code ANSI: A100N63
Gross weight – grams: 0.31
Cutting diameter (wire gauge size) (DC): N63
Cutting diameter – millimeter (DC): 0.94 mm
Cutting diameter – inch (DC): 0.037 inch
Length chip flute – millimeter (LCF): 11 mm
Overall length – millimeter (OAL): 32 mm
Connection diameter – millimeter (DCON MS): 0.94 mm
Length chip flute – inch (LCF): 0.4331 inch
ISO: A100N63

Brand

DORMER
