DORMER A100N74 Jobber Drills

Product Code: A100N74

$12.80$11.64 Ex. GST

Product Code: A100N74 SKU A100N74 Categories , ,

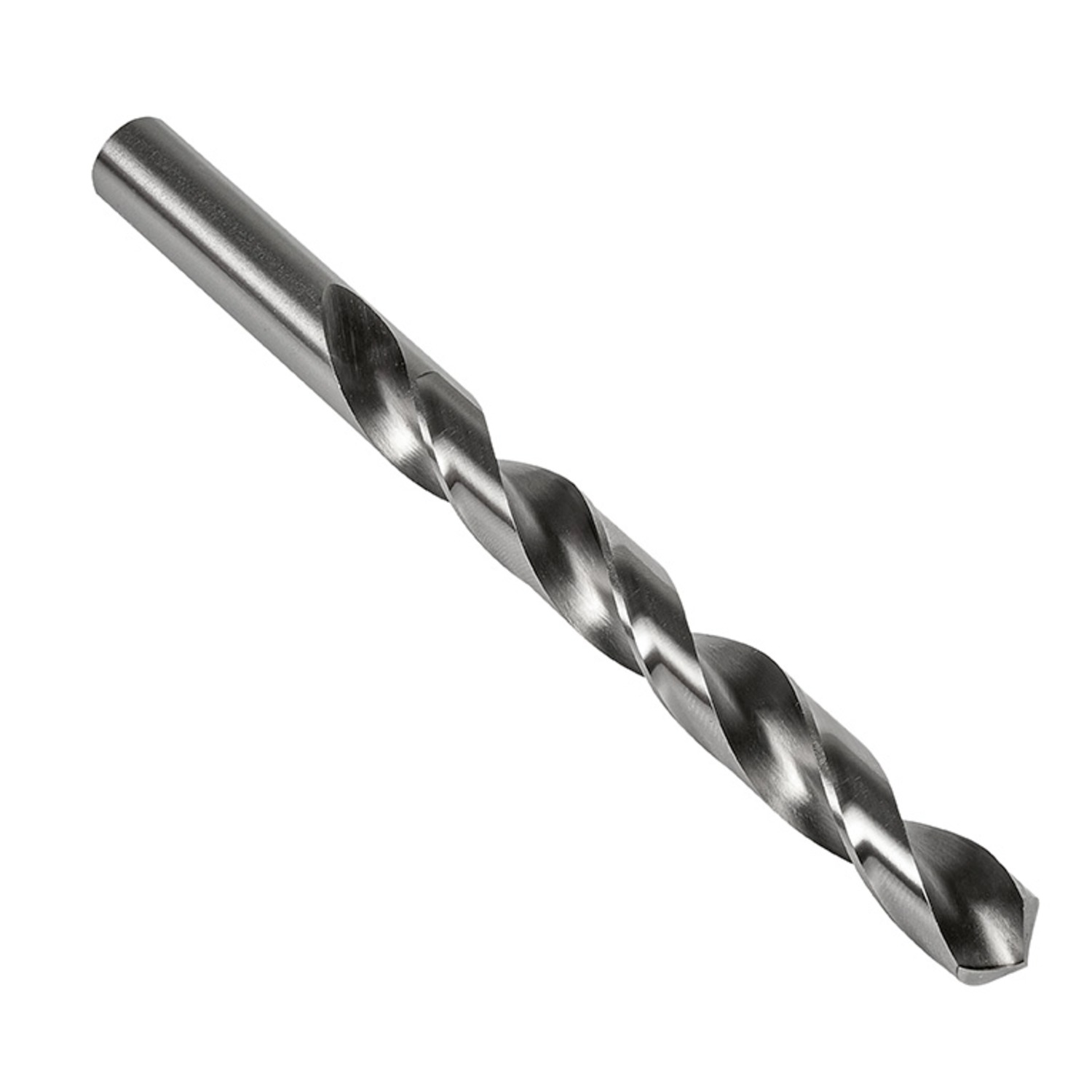

DORMER A100N74 Jobber Drills
DORMER A100N74 Jobber Drills - Image 2
DORMER A100N74 Jobber Drills - Image 3
DORMER A100N74 Jobber Drills - Image 4

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

Jobber length drill with straight shank, diameter 0.0225″ (N74) with an overall length of 24mm and flute length of 7mm according to DIN 338 standard with 118° point angle, HSS with bright finish for 4xD drilling without pecking in steel

Additional information

Weight 0.0124 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760029411
Product number (SAP): 86008673
Ordering code ANSI: A100N74
Gross weight – grams: 0.18

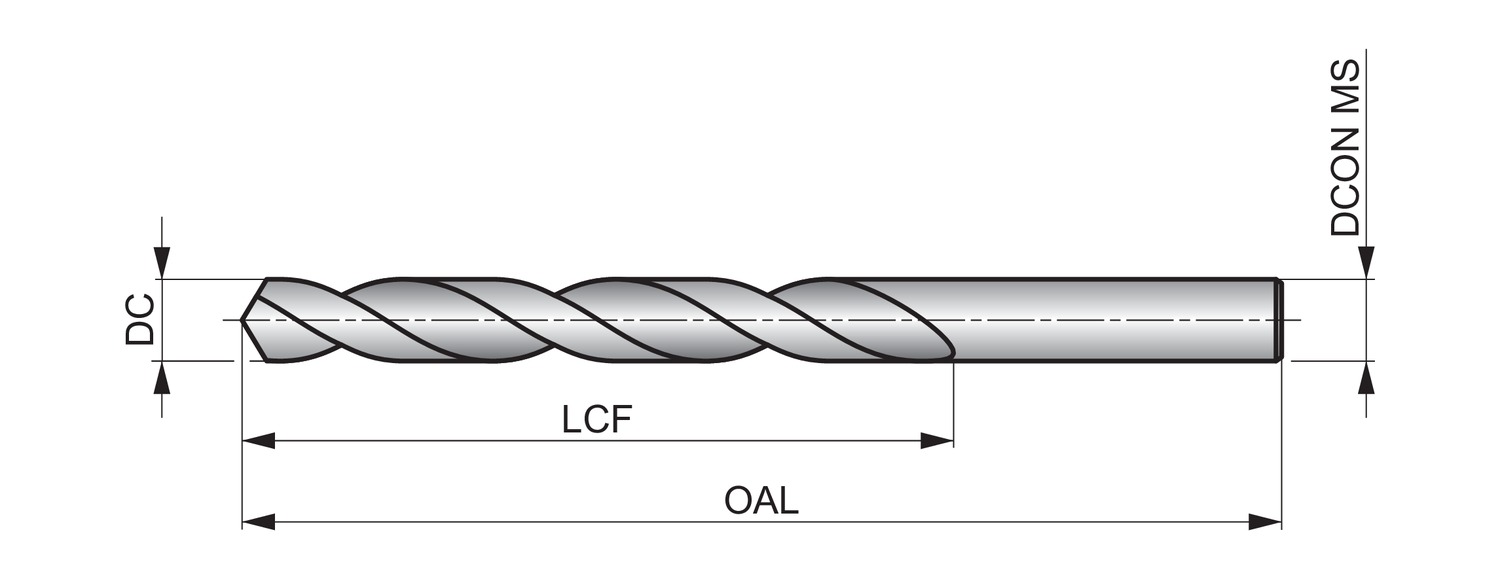

Cutting diameter (wire gauge size) (DC): N74
Cutting diameter – millimeter (DC): 0.57 mm
Cutting diameter – inch (DC): 0.0225 inch
Length chip flute – millimeter (LCF): 7 mm
Overall length – millimeter (OAL): 24 mm
Connection diameter – millimeter (DCON MS): 0.57 mm
Length chip flute – inch (LCF): 0.2756 inch
ISO: A100N74

Brand

DORMER
